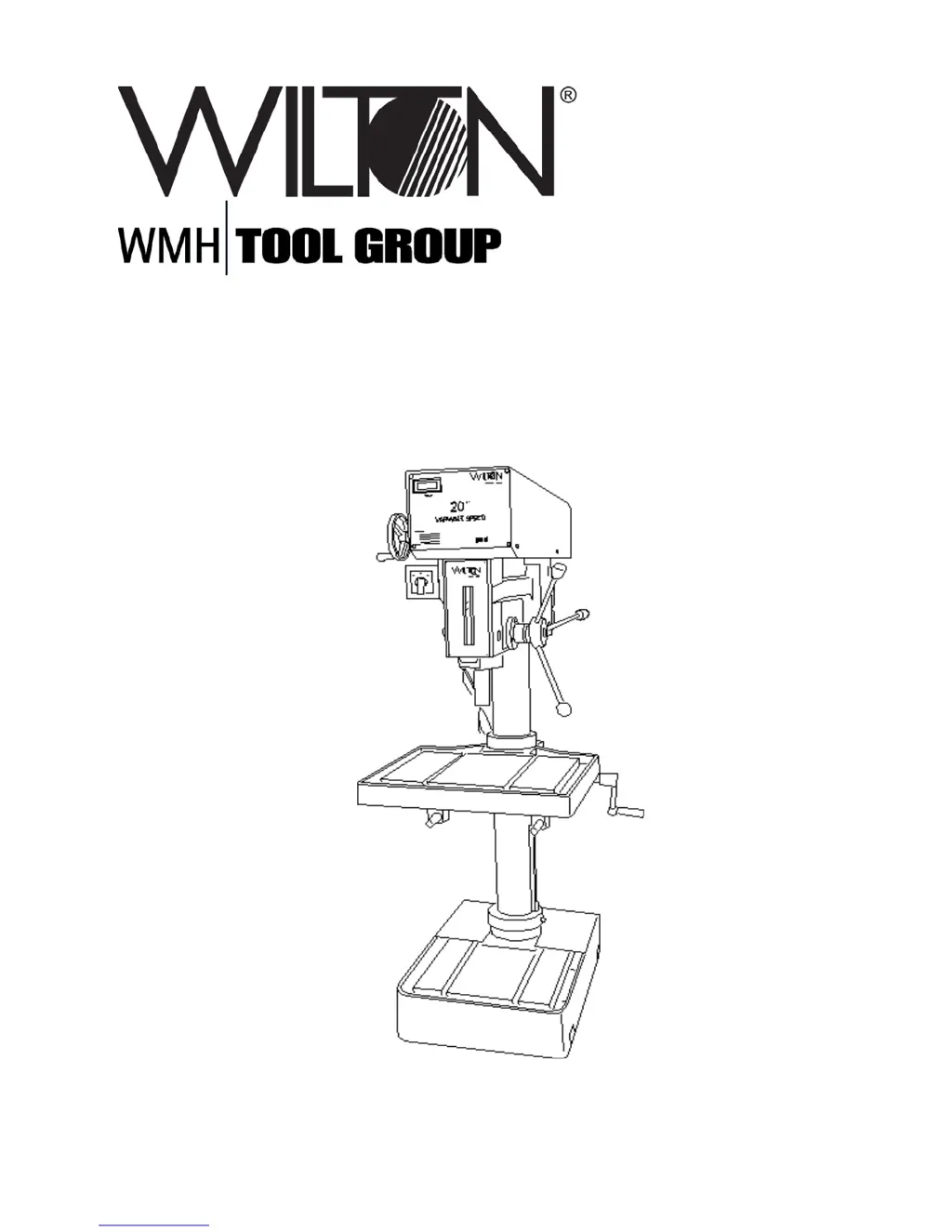

Operating Instructions — Parts Manual
20-Inch VS Drill Press
Models: 2221VS, 2223VS, 2232AC, 2234AC
Serial Number 201001 and greater
WHM TOOL GROUP
2420 Vantage Drive
Elgin, Illinois 60124 Part No. 5510374
Ph.: 800-274-6848 Revision D6 08/06
www.wmhtoolgroup.com Copyright © WMH Tool Group

Table of Contents

Questions and Answers

  • A
    amberwallAug 3, 2025
    How to fix a Wilton 2232AC when the spindle does not turn?
    • M
      Melanie BautistaAug 3, 2025
      If the spindle of your Wilton Power Tool isn't turning, there are several potential causes: * The motor overload protector may have tripped. If so, press the motor overload reset button. * The circuit breaker may have tripped. Try resetting the circuit breaker. * A branch circuit breaker might have tripped, or a fuse blown. In this case, reset the branch circuit breaker or replace the fuse. * There could be an open wire in the switch circuit, which requires repairing the open circuit. * The switch itself may be defective, necessitating a switch replacement. * The drive belt might be broken, requiring you to replace it.
  • C
    Carol BrownAug 7, 2025
    What to do if my Wilton Power Tool motor is overheating?
    • P
      paynejenniferAug 8, 2025
      If your Wilton Power Tool motor is overheating, consider these potential causes and solutions: * There may be an electrical circuit fault. Check the current draw in the circuit to ensure it matches the rating on the motor plate. * An oversized drill bit could be the issue. Try reducing the drill size. * Excessive feed rate can cause overheating. Reduce the feed rate. * Using no cutting fluid, or the wrong type, can also lead to this problem. Use the correct cutting fluid for the material and drill.
  • M
    Martin PetersonAug 11, 2025
    Why does my Wilton 2232AC drill stall?
    • M
      Maria LewisAug 11, 2025
      Your Wilton Power Tool drill might stall due to several reasons: * A worn drive belt could be the culprit. Check the belt's condition and replace it if it's glazed or slipping on the pulleys. * The feed rate might be too high for the drill size and material. Reduce feed pressure and consider using cutting fluid – ensuring it's the correct type. * A lack of cutting fluid or using the wrong kind can also cause stalling. Reduce feed pressure and use the appropriate cutting fluid.
  • A
    amber13Aug 16, 2025
    How to improve poorly drilled holes with Wilton 2232AC Power Tool?
    • D
      darrell97Aug 16, 2025
      If you're experiencing poorly drilled holes with your Wilton Power Tool, consider the following: * The drill bit may be dull, requiring sharpening. * There might be a lack of rigidity in your hold-down method. Check that all T-slot hold-downs are tight and that the table-lock and drill head bolts are secure. * The speed may be too fast for the material and drill size. Check spindle speed recommendations and reduce speed if necessary. * The feed rate might be too fast. Reduce the feed rate. * You might not be using cutting fluid, or using the wrong type. Use cutting fluid, or change to the proper fluid or coolant for the material you're drilling. * The drill bit could be improperly ground. Check for proper angles and reliefs and regrind to the proper geometry.
  • R
    Randy RiceAug 21, 2025
    What causes a noisy spindle in a Wilton 2232AC?
    • J
      jasonleonardAug 21, 2025
      A noisy spindle in your Wilton Power Tool could be due to: * Damaged spindle bearings. If this is the case, replace the bearings. * A worn spline. If so, replace the spline.
  • G
    Gregory LaraAug 25, 2025
    What to do if there is no speed readout on my Wilton 2232AC?
    • M
      Mr. Christopher Parker PhDAug 25, 2025
      If there's no speed readout on your Wilton Power Tool, it could be that the speed pickup is out of adjustment or has failed. You can try adjusting the gap between the speed pickup and post spindle pulley. If there is still no readout on the LED speed indicator after adjusting the gap, replace the speed pickup.
  • S
    Samantha LewisAug 29, 2025
    Why the table of my Wilton 2232AC can not be raised?
    • K
      Keith WilliamsAug 29, 2025
      If the table of your Wilton Power Tool cannot be raised, it is likely due to a lack of lubrication. Make sure to lubricate it.

Summary

General Specifications

Operating Precautions

Machinery General Safety Warnings

General safety warnings for operating, servicing, and general maintenance of the machinery.

General Electrical Cautions

Wire Sizes

Recommended wire sizes (AWG) for branch circuits based on conductor length and voltage.

Safety Instructions for Drill Presses

Essential safety guidelines for operating drill presses, including PPE and machine handling.

Operation and Set-up

Securing the Base

Instructions for leveling and securing the drill press base to the floor or workbench.

Raising the Drill Head and Table

Electrical Connection

Operating Controls

Manual Speed Control Features

Operating controls for manual speed control models 2221VS and 2223VS.

Inverter Speed Control Features

Operating controls for inverter speed control models 2232AC and 2234AC.

Control Panel Layout

Overview of switches, indicators, and displays on the control panel.

Speed and Depth Adjustment

Using the speed knob, drilling speed chart, and depth indicator for operation.

Maintenance

Replacement of Drive Belt

Step-by-step instructions for replacing the drive belt on both manual and inverter models.

Replacement of Motor

Procedures for replacing the motor on manual speed control models.

Lubrication

Lubrication recommendations for drill press components for manual and inverter models.

Machine Adjustments

Table Adjustment

How to adjust the height of the work table using the hand crank and lock.

Head Adjustment

Instructions for adjusting the radial position of the drill head.

Adjustment of Speed Pickup

Steps to adjust the speed pickup for accurate speed readout on manual and inverter models.

Operating Precautions

Feeds for Drilling

Guidance on selecting appropriate drill feed rates based on drill size and material.

Indication of Extreme Speeds and Feeds

How to identify issues with speed and feed rates by observing drill behavior.

Speeds for High Speed Steel Drills

Table of recommended spindle speeds (SFPM) for various materials using HSS drills.

Wiring Diagram

Models 2221 & 2223

Wiring diagrams for manual speed control models 2221 and 2223 for different voltage/phase configurations.

Models 2232 AC & 2234 AC

Wiring diagram for inverter speed control models 2232AC and 2234AC, including LED display connection.

Troubleshooting

Spindle does not turn

Possible causes and remedies for the spindle not turning.

Spindle noisy

Possible causes and remedies for a noisy spindle.

Drill stalls

Possible causes and remedies for the drill stalling during operation.

Poorly drilled holes

Causes and remedies for poorly drilled holes, including drill sharpness and feed rates.

Motor overheating

Possible causes and remedies for motor overheating.

Table can not be raised

Cause and remedy for the table not being able to be raised.

No speed readout

Possible causes and remedies for the speed readout not functioning.

Optional Equipment

Coolant System Installation

Step-by-step guide for installing the optional coolant system.

Replacement Parts

Exploded View - Manual Speed Control Drill Head

Parts Listing - Manual Speed Control Drill Head

Exploded View - Inverter Speed Control Drill Head

Parts Listing - Inverter Speed Control Drill Head

Exploded View - Spindle Components

Parts Listing - Spindle Components

Exploded View - Table and Base

Parts List - Table and Base
