Page 5 of 12
Document No.: IM tma227-15
Revision: A
TMM PUSH HANDLE
FIELD INSTALLATION AND USAGE INSTRUCTIONS
TOOLS REQUIRED
• (1) 3/16” Allen Wrench
• (1) 1/2” Socket Wrench
• (2) Thin 3/8” Open End Wrenches

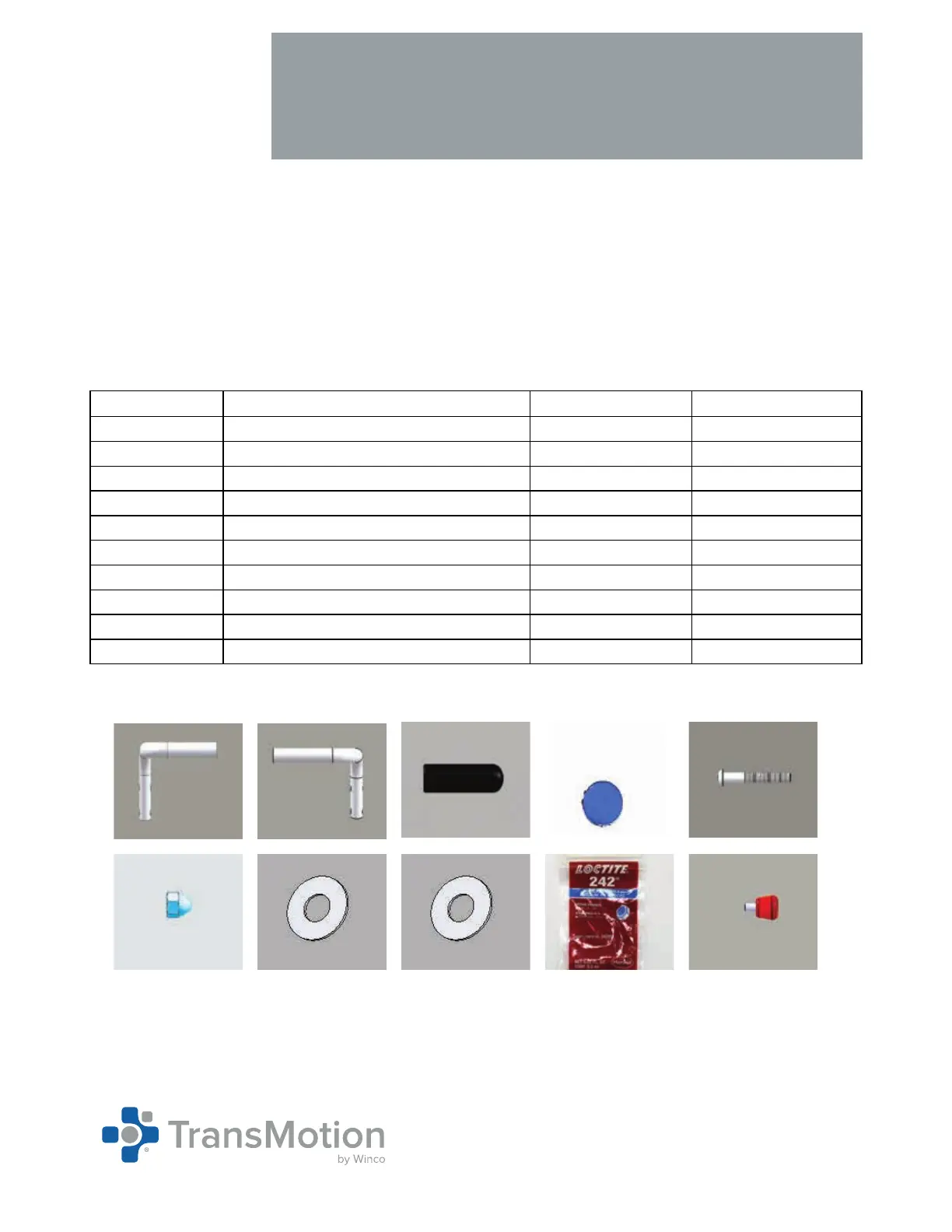

PARTS INCLUDED
1. Push Handle Assembly (TMA227-15)
PART NUMBER DESCRIPTION QUANTITY IMAGE
TMM-374-06 TMM5 PUSH BAR ASSEMBLY - LEFT 1 A
TMM-373-06 TMM5 PUSH BAR ASSEMBLY - RIGHT 1 B
TMM-406-11 PUSH BAR GRIP 2 C
TMM-489-11 ADHESIVE BACKED BUMPER 2 D
TMM-080-04 SHOULDER SCREW 5/16 X 1-3/4” 2 E
TMM-165-04 HEX ACORN LOCKING NUT 5/16” 2 F
TMM-1023-04 NYLON WASHER 0.328” 4 G
TMM-194-04 NYLON WASHER 3/8” 2 H
TMM-2439-04 LOCK-TITE 1 I
TMM-057-12 PLUNGER KNOB 2 J
D
C
B
A
H
F
E
G
I
J
