TMM PUSH HANDLE
FIELD INSTALLATION AND USAGE INSTRUCTIONS
PUSH HANDLE PLUNGER KNOB INSTALLATION
REMOVING AN OLD PLUNGER KNOB
1. Pull knob to release handle. Swing handle down and out of
way (Fig. 1).
2. Place one 3/8” open end wrench near the knob. Pull the
spring loaded inner section out with your fingers (Fig. 2).
3. Use an additional 3/8” open end wrench to hold the piece if
you cannot grip it with your fingers. Loosen knob by turning
the wrench near the knob and remove (Fig. 3).
←
←

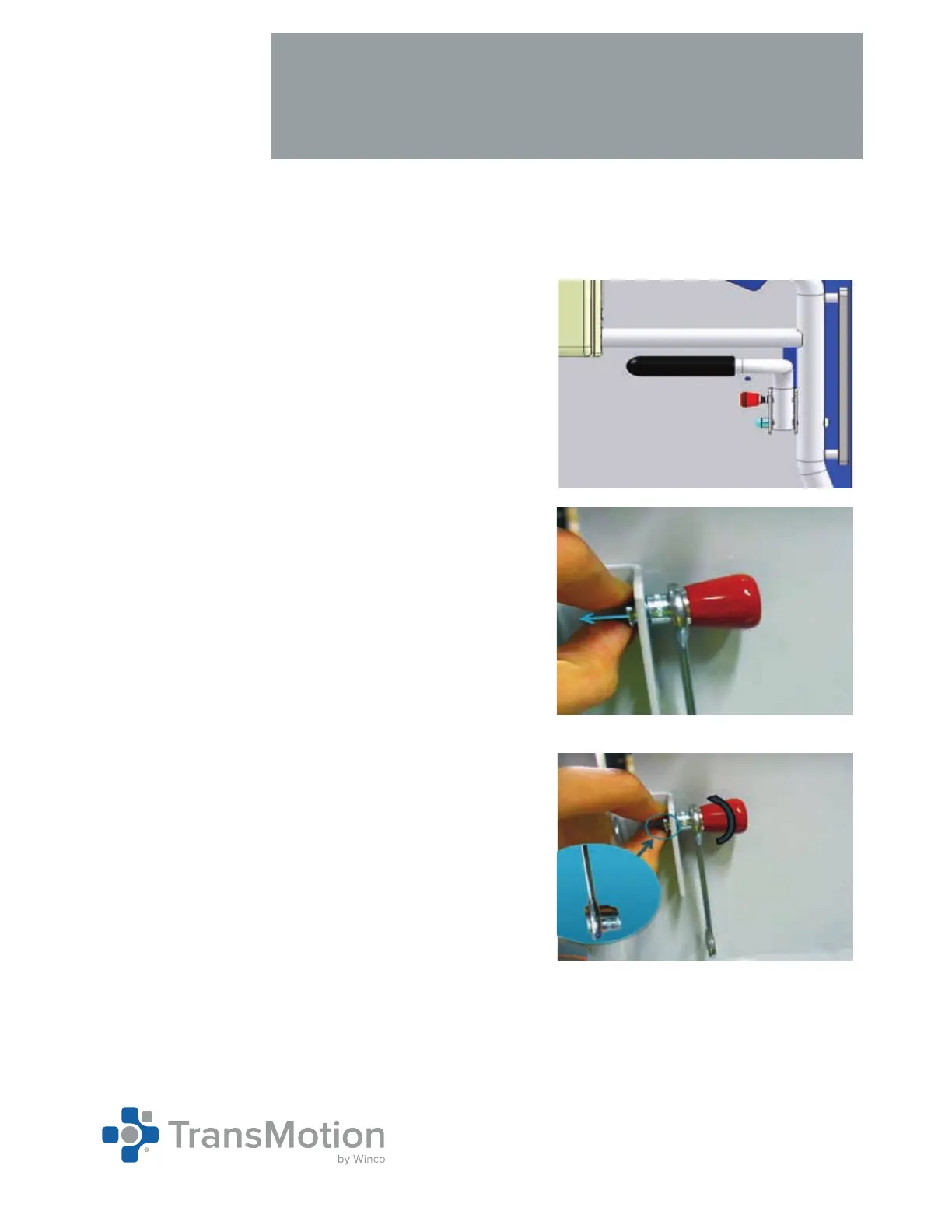

Fig. 1
Fig. 2
Fig. 3
To Next Page
