10
K1 and K2
Motherboard,
User Manual
2x
6 pin
h
eader
, 2.54 m
m
pitch
Pin
Signa
l
1
DCD
2
RX
3
TX
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
RI
10
Key Pin
11
+5 V
12
+12 V

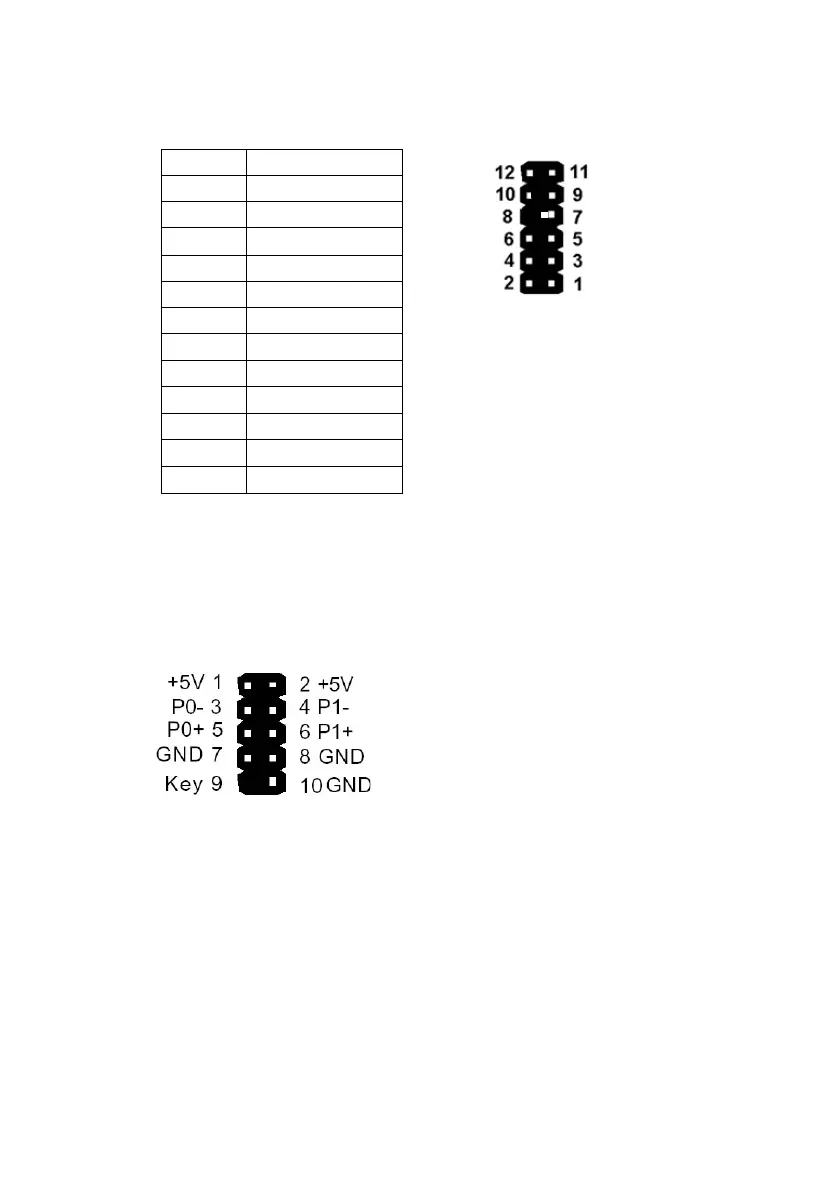

USB 2
.0 (i
nternal)
8 USB
ports at K
1 board and 4 U
SB ports at K2
are route
d to
10pin doubl
e
row hea
ders with
2.54 mm
pitch. Ea
ch header
provide
s 2 ports. These
headers
are intended to conne
ct optional
front U
SB modules
or USB hubs.
T
wo
USB
port
s shar
e one fu
se.
USB port 1
1 at head
er USB3 (pin
s 1,3,5,7)
is shared with PCIe x1 connector PCIE3
(p
ins A5 to A8) fo
r USB uplink
connection
for the "Retail Car
d".
19
21
Table of Contents
Default Chapter
2
Table of Contents
2
Overview
16
Introduction
16
Some Highlights of the K1 and K2 Motherboard
16
Motherboard Specification
17
Block Diagram
17
Internal Connectors
18
Mainboard Assembly Variants
19
CPU Support
19
Mainboard Internal Connectors and Onboard Features
19
Serial Ports (Internal)
19
USB 2.0 (Internal)
20
Mini PCI Express
21
Memory (Internal)
22
SATA (Internal)
22
Fan (Internal)
22
Chassis Intrusion Connector (Internal)
23
Front Panel Connector (Internal)
23
ATX / 12V Power Connector (Internal)
24
LPT (Internal)
25
Tpm
25
PCI Express Slots (Internal)
26
Mainboard Onboard Connectors with External Access
27
Motherboard I/O Shield Overview (External)
27
Panellink 2.0 (External)
27
VGA (External)
30
Keyboard / Mouse (External)
30
LAN (External)
30
USB 2.0 / USB 3.0 (External)
30
Audio (External)
30
Technical Data
31
Supported Sleep States
32
RAID (K1 Motherboard)
33
Changing the Battery
34
UEFI BIOS Setup
35
Standard UEFI BIOS Version
35
BIOS Menu Bar
36
Legend Screen
36
General Help
37
Scroll Bar
37
Sub-Menu
38
Info Screen
38
Product Name
39
BIOS Version
39
Ethernet MAC Address
39
UUID Info
39
System, Main Board, Power Supply
39
Main Menu
40
System Date [MM/DD/YYYY]
40
System Time [XX: XX: XX]
40
Processor and Chipset Information
40
Advanced Menu
41
Sub Menu ACPI Settings
41
Enable ACPI Auto Configuration [Enabled]
42
Sub Menu Trusted Computing
42
Security Device Support [Disable]
42
TPM State [Disabled]
42
Pending Operation [None]
42
Sub Menu Hardware Configuration
43
PCH LAN Controller [Enabled]
43
Launch PXE Oprom Policy [Legacy Only]
43
Wake on LAN [Disabled]
43
Wake on Ring [Disabled]
44
Wake on Time [Disabled]
44
Wake on USB/PS2 (S3) [Enabled]
44
Wake on Pcie Slot [Disabled]
44
Wake on LAN (S3) [Disabled]
44
Wake-On Modes
45
RMT Button Display1 [Enabled]
45
Display Output to COM [Disabled]
45
Restore AC Power Loss [Power Off]
45
Bootorder Menu [Enabled]
46
VT-D [Enabled]
46
Sub Menu CPU Configuration
47
Hyper-Threading [Enabled]
47
Active Processor Cores [All]
47
Overclocking Lock [Disabled]
48
Limit CPUID Maximum [Disabled]
48
Execute Disable Bit [Enabled]
48
Intel Virtualization Technology [Enabled]
48
Hardware Prefetcher [Enabled]
48
Adjacent Cache Line Prefetch [Enabled]
48
CPU AES * [Enabled]
49
Boot Performance Mode [Max Non-Turbo Performance]
49
EIST [Enabled]
49
Intel TXT (LT) Support * [Disabled]
49
Sub Menu SATA Configuration
50
SATA Controller(S) [Enabled]
50
SATA Mode Selection [AHCI]
50
Sata 4
50
Sata 0, 1, 5
51
Sub Menu PCH-FW Configuration
51
Intel ME (Management Engine) Subsystem
52
Mebx Type [None]
52
MDES BIOS State Code [Disabled]
52
Sub Menu AMT Configuration
53
Intel AMT [Enabled]
53
BIOS Hotkey Pressed [Disabled]
53
Mebx Selection Screen [Disabled]
54
Hide Un-Configure ME Confirmation [Disabled]
54
Mebx Debug Message Output [Disabled]
54
Un-Configure ME [Disabled]
54
AMT Wait Timer 0
54
Disable ME [Disabled]
54
ASF [Enabled]
54
Activate Remote Assistance Process [Disabled]
54
USB Configure [Disabled]
54
PET Progress [Enabled]
54
Watchdog [Disabled]
55
Sub Menu USB Configuration
55
Legacy USB Support [Enabled]
56
USB3.0 Support [Enabled]
56
XHCI Hand-Off [Enabled]
56
EHCI Hand-Off [Enabled]
56
XHCI Mode [Auto]
56
USB Ports Per-Port Disable Control [Disabled]
56
USB Mass Storage Driver Support [Enabled]
56
PORT 60/64 Emulation [Enabled]
56
Device Power-Up Delay [Auto]
57
Sub Menu NTC6106D Super IO Configuration
57
Sub Menu NTC6106D Super IO Configuration Parallel Port Configuration
57
Sub Menu NTC6106D H/W Monitor
58
Sub Menu Intel TXT Information
59
Sub Menu Serial Port Console Redirection
59
Console Redirection [Enabled]
59
Sub Menu Serial Port Console Redirection Console Redirection Settings
60
Sub Menu Network Stack Configuration
61
Sub Menu CMOS
61
Sub Menu Intel(R) Ethernet Network Connection
62
Sub Menu Intel(R) Ethernet Network Connection NIC Configuration
62
Chipset Menu
63
Sub Menu PCH-IO Configuration
63
BIOS Security Configuration
63
Sub Menu System Agent (SA) Configuration
64
Sub Menu System Agent (SA) Configuration Graphics Configuration
64
Boot Menu
66
Bootup Numlock State [On]
67
Quiet Boot [Disabled]
67
Fast Boot [Disabled]
67
Boot Mode Select [LEGACY]
67
Fixed Boot Order Priorities '#N' Boot Device
67
Security Menu
68
Administrator Password
68
Intrusion Detection [Disabled]
68
Sub Menu Security Menu Secure Boot Menu
69
Save & Exit Menu
70
Discard Changes and Exit
70
Save Changes and Reset
70
Discard Changes and Reset
70
Restore Defaults
71
Boot Override
71
Launch EFI Shell from File System Device
71
Test Points Codes
71
Checkpoint Ranges
71
SEC Phase
72
PEI Phase
72
PEI Beep Codes
75
DXE Phase
75
DXE Beep Codes
78
Abbreviations
79
