WindRider 17 Trimaran Assembly – Getting Started
Your WindRider 17 Trimaran is very easy to assemble and disassemble, particularly when sitting
on the WindRider 17 Trimaran trailer. With a little practice, assembly takes only 15 minutes for one
person to accomplish. As you read through the following instructions, refer to the glossary at the end
of this manual to help you understand some of the terms and concepts.
Be sure to have the following uninstalled components on hand before starting:
1. Main hull
• sails(s)
• boom
• mast step assembly
• mainsheet
• mainsheet cleat
• cheek block
• shrouds and shroud bridles
• forestay, or jib with forestay sewn in
2. Starboard outrigger
3. Port outrigger
4. Mast
5. Front beam
6. Rear Beam w/ jib sheet cleat base on either side

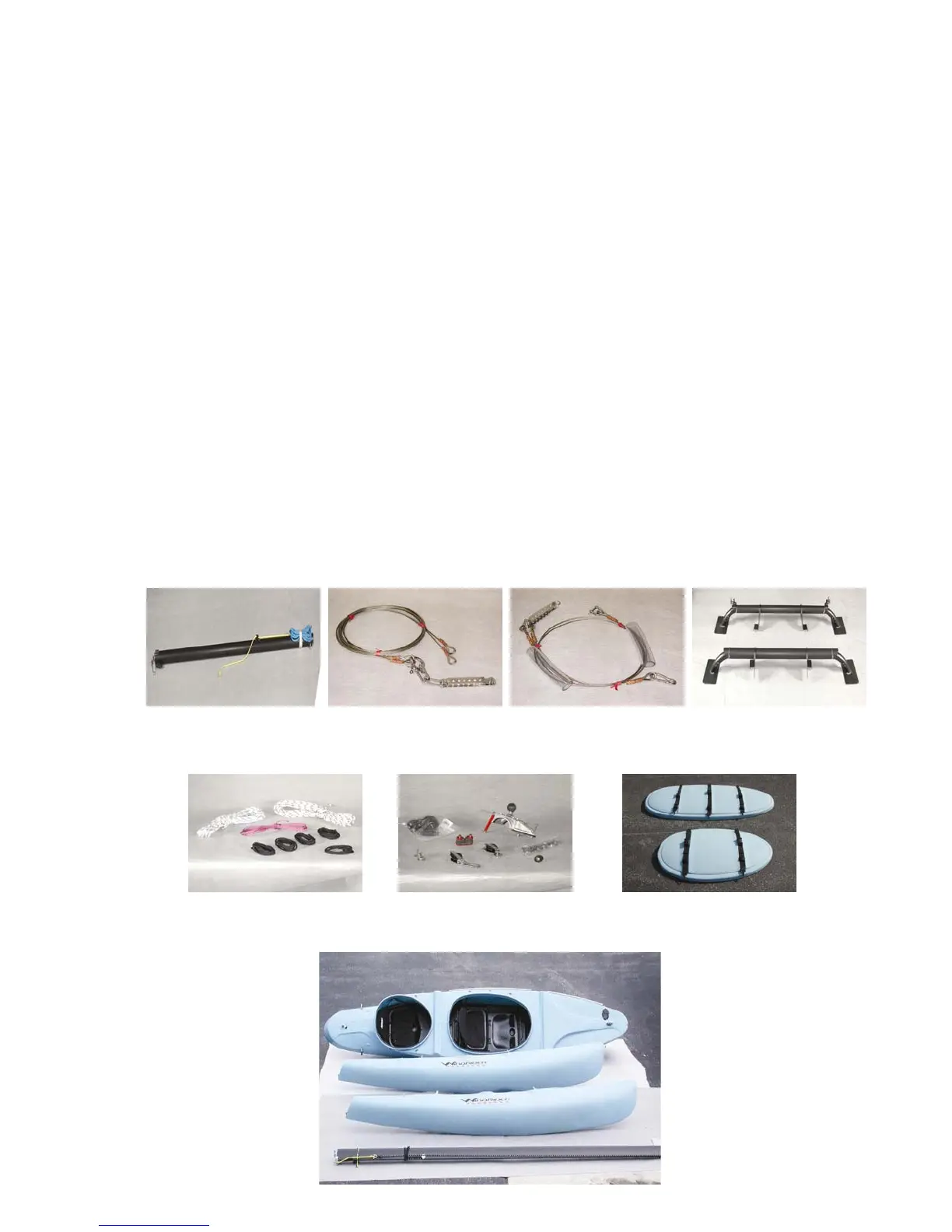

Boo
Shrouds Shroud Bridle Beams
Lines
Small Parts Hatches
Lar
e Parts
