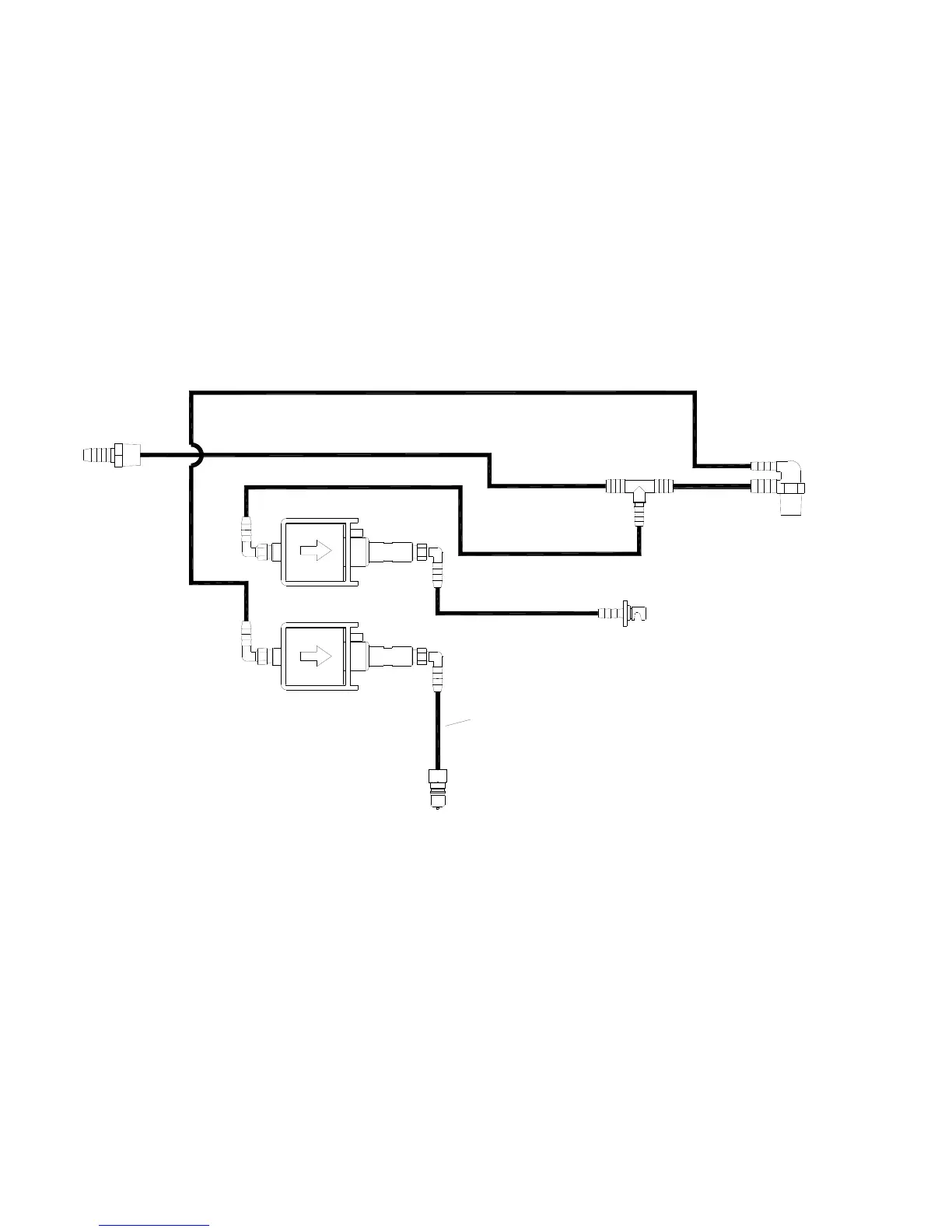

HOSE DIAGRAM
86037780 EXTRACTOR 12/09/06
5
-
27
(86240430)
(86219050) (PRV 39724)
(86219090) (PRV 39728)
(PRV 40114)
(86012680)
(86219090) (PRV 39725)
(86219080) (PRV 39727)
(86219070)
TO SOLUTION TANK
ACCESSORY PUMP
MAIN PUMP
ACCESSORY TOOL
JET
TO SOLUITON
TANK
(PRV 44106)
(86240520)
(PRV 40062)
(PRV 40083)
(PRV 40097)
4X
(86200820)
(PRV 270-11A)
(PRV 39726)
(86219580)
(86068590)
(86219200)
