Windsor Titan 708 Operating Instructions

10

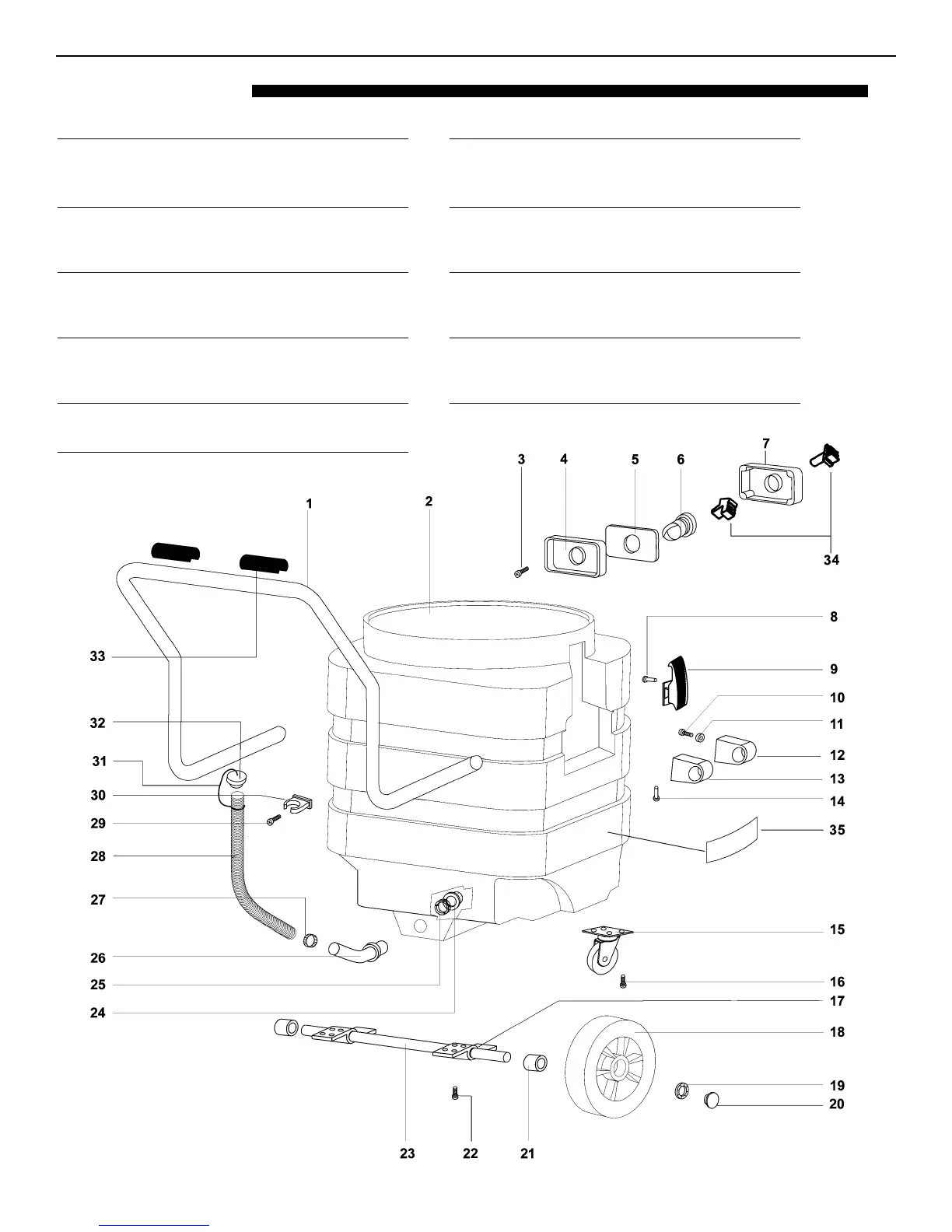

T716 TANK ASSEMBLY
No. Part Num. Description Qty.
1. S82558V Handle 1
2. S82637 Tank – 400 1
3. S82016 Screw, M5x30 4
4. S82584AG6 Retainer, Tank 1
5. S82846 Gasket 1
6. S82593 Deflector, Tank 1
7. S82652AG6 Adapter 1
8. S81300 Rivet, 5 x 24.5 4
9. S81847G6 Clamp 2
10. S81050 Screw, M8 x 15 8
11. S83883 Plastic Washer 8
12. S81072 Support, Handle 2
13. S81860 Support 2
14. S81302 Rivet, M5 x 19 2
15. S82559 Wheel Caster 2
16. S82680 Screw, M8 x 15 8
17. S82556 Support, Axle 2
18. S80904 Wheel 2
19. S82557 Cap, End 2
No. Part Num. Description Qty.
20. S83835 Axle Cap 2
21. S82607 Spacer, Wheel 2
22. S81006 Screw, M5 x 20 8
23. S82555 Axle 1
24. S80834 Nut, Flange, 1-1/4 1
25. S80256 Gasket 1
26. S82763 Elbow 1
27. S83308 Clamp 1
28. S82765 Drain Tube 1
29. S83156 Screw, M5 x 20 1
30. S82788 Clip Tube 1
31. S82812 Tie Rod, Plug 1
32. S82764 Plug, Stopper 1
33. S86250 Handgrip 2
34. S825948L Push Button, Two-Piece, Blue 1
35. T9007 Label, Titan 1

Windsor Titan 708 Specifications

General

Brand	Windsor
Model	Titan 708
Category	Vacuum Cleaner
Language	English
