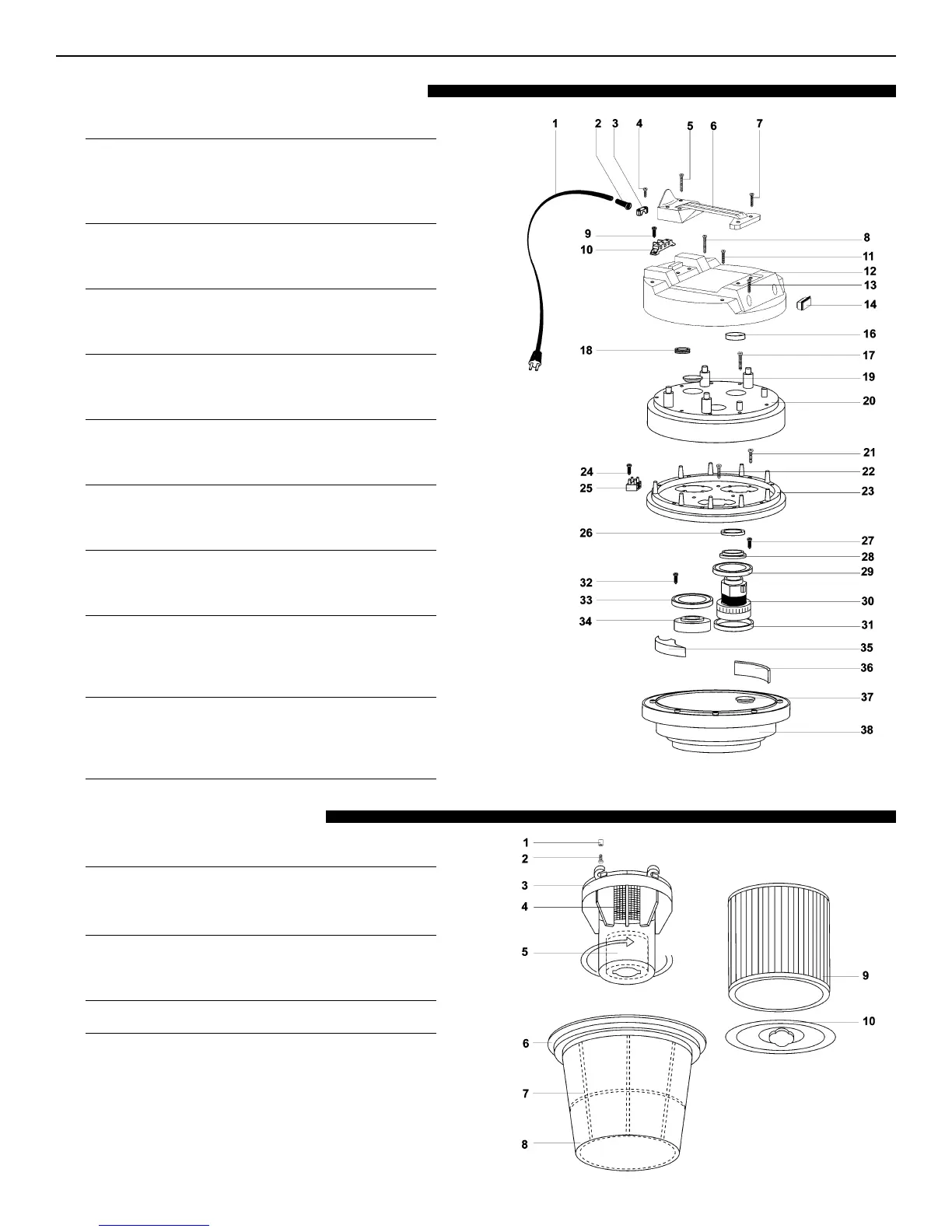

T716/T720TP VACUUM MOTOR ASSEMBLY
No. Part Num. Description Qty.
1.
S81122 Cord, 120 Volt
1
S80117 Cord, 230 Volt
2. S80138 Strain Relief 1
3. S80139 Bracket 1
4. S81006 Screw, 5 x 20 2
5. S81054 Screw, 5 x 50 4
6. S86097AUG6 Handle, Gray 1
7. S81979 Screw, 5 x 25 2
8. S81054 Screw, 5 x 50 2
9. S81005 Screw, 5 x 14 2
10. S80490 Terminal Block 1
11. S81006 Screw, 5 x 20 2
12. S86070AUB.LAB Cover, Blue 1
13. S81979 Screw, 5 x 25 2
14. S80326 Switch, On/Off 1
16. S83937 Filter 1
17. S81054 Screw, 5 x 50 9
18. S81502 Gasket 1
19. S83383 Cap 2
20. S82957AUG6 Cover, Gray 1
21. S82627 Screw, 5 x 40 9
22. S82627 Screw, 5 x 40 3
23. S82937AUG6 Motor Base, Gray 1
24. S81004 Screw, 3 x 19 1
25. S80450 Terminal Block 1
26. S83969 Gasket 1
27. S81006 Screw, 5 x 20 4
28. S80310 Ring 1
29. S83901 L-Gasket 1
30.
S81120S Motor, 120 Volt
1
S83891S Motor, 230 Volt
31. S83901 L-Gasket 1
32. S81006 Screw, 5 x 20 8
33. S83901 L-Gasket 2
34. S83451 Motor Seal 2
35. S82454 Filter 3
36. S83456 Filter 3
37. S83519 Base Plug 1
38. S83108GG6 Base 1
T716/T720TP FILTER GROUP
No. Part Num. Description Qty.
1. S83706 Bushing 4
2. S83724 Screw, 5x25 4
3. S82823 Body, Filter Support 1
4. S83117 Strainer 1
5. S82676 Float 1
6. S80473 Filter Ring 1
7. S82845 Filter Bag 1
8. S82833 Support, Filter 1
9. S82852 Filter – OPTIONAL 1
10. S82855 Filter Retainer – OPTIONAL 1
