Windsor Titan 708 Operating Instructions

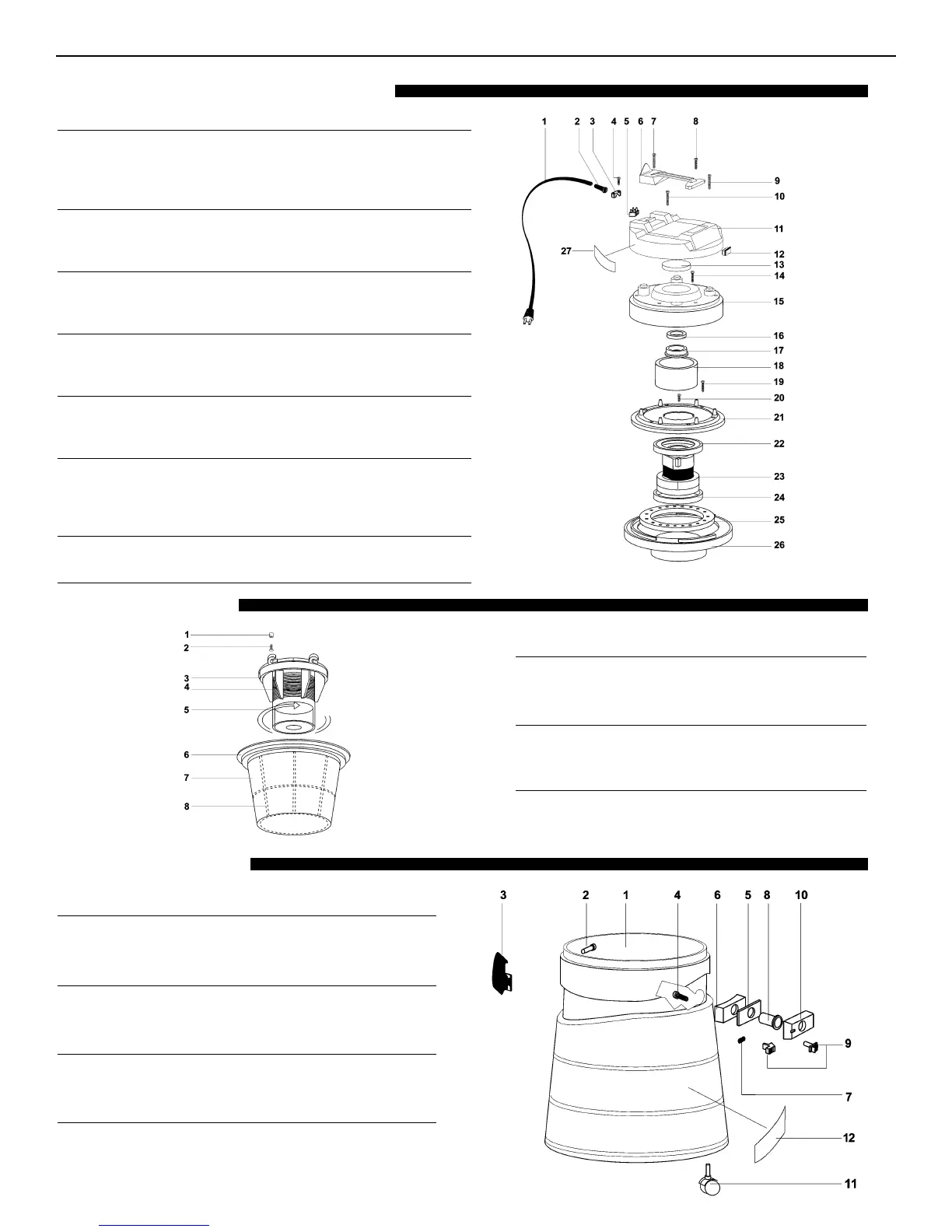

T708/T708IE VACUUM MOTOR ASSEMBLY
No. Part Num. Description Qty.
1.
S81122 Cord, 120 Volt
1
S80117 Cord, 230 Volt
2. S80138 Strain Relief 1
3. S80139 Terminal Clip 1
4. S81006 Screw, 5 x 20 2
5. S80450 Terminal Block 1
6. S83733AUG6 Handle, Gray 1
7. S82627 Screw, 5 x 40 4
8. S81006 Screw, 5 x 20 2
9. S81054 Screw, 5 x 30 2
10. S81054 Screw, 5 x 30 2
11. S83734AUB.LAB Cover 1
12. S80326 Switch, On/Off 1
13. S83937 Filter, Ø95 1
14. S81050 Screw, 5 x 35 6
15. S82738AUG6 Cover, Motor, Gray 1
16. S83969 Gasket 1
17. S80310 Ring 1
18. S83900 Filter 1
19. S82627 Screw, 5 x 40 6
20. S81006 Screw, 5 x 20 4
21. S82591AUG6 Motor Ring, Gray 1
22. S83901 Gasket 1
23.
S81120S Motor, 120 Volt
1
S83891S Motor, 230 Volt
24. S83901 Gasket 1
25. S83866 Disk, Noise Reduction 1
26. S81189GG6 Base, Motor, Gray 1
27. T9008 Label, Windsor Logo 1
T708 FILTER GROUP
No. Part Num. Description Qty.
1. S83706 Bushing 4
2. S83724 Screw, 5 x 25 4
3. S82823 Body, Filter Support 1
4. S83138 Filter/Strainer 1
5. S82676 Float 1
6. S80123 Ring, Filter 1
7. S82860 Filter Bag 1
8. S82859 Support, Filter Bag 1
T708 TANK ASSEMBLY
No. Part Num. Description Qty.
1. S82599 Tank 1
2. S81300 Rivet, 5 x 24.5 4
3. S81847G6 Tank Clamp 2
4. S81050 Screw, M5 x 35 4
5. S82846 Gasket 1
6. S82585AG6BL Retainer, Tank Adapter 1
7. S82608 Spring, Push Button 1
8. S82593 Tank Deflector 1
9. S82594BL Push Button, Two-Piece, Blue 1
10. S82583AG6BL Hose Adapter, Blue 1
11. S80558 Caster 6
12. T9007 Label, Titan 1
8
