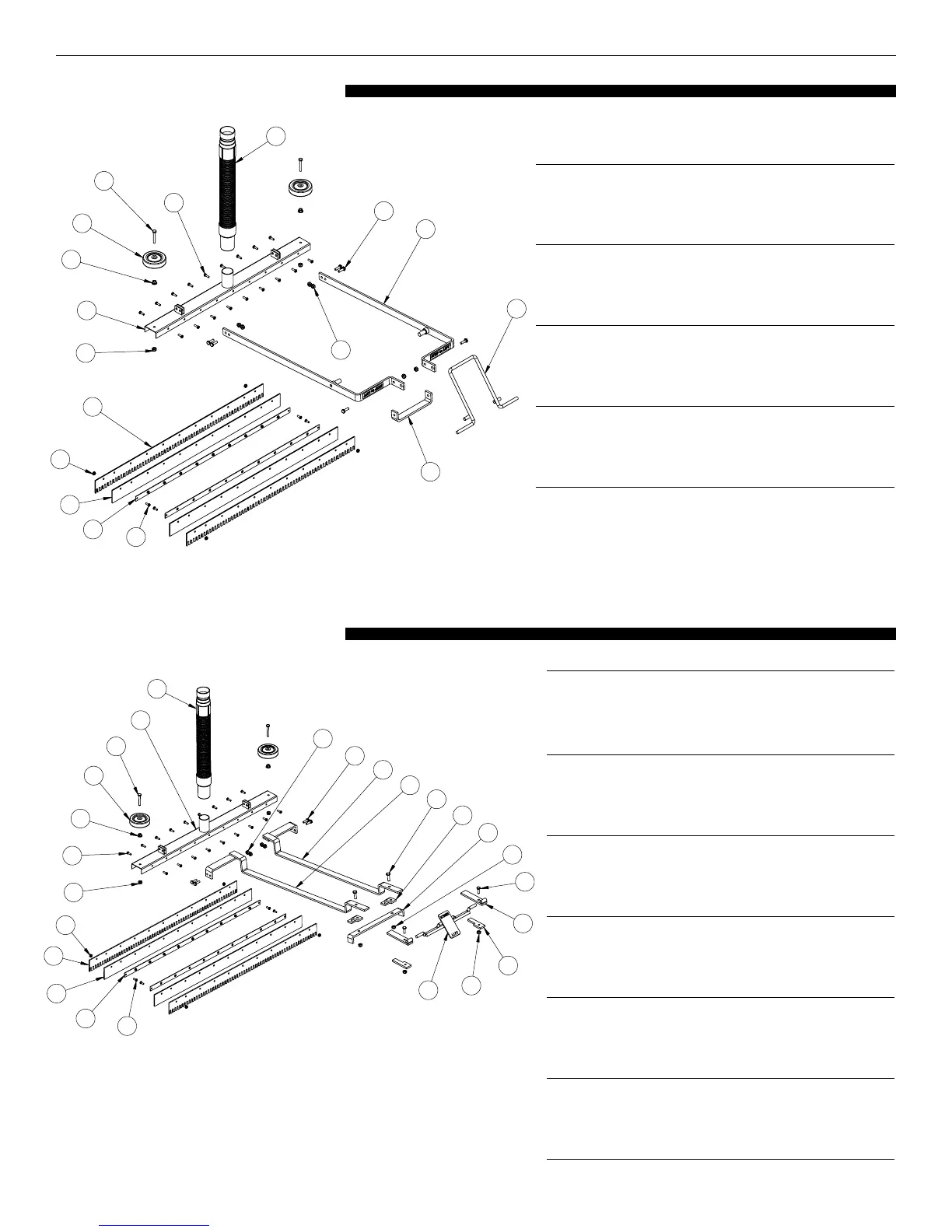

TSQ16 FRONT-MOUNTED SQUEEGEE
No. Part Num. Description Qty.
1. BD705205 Hose Assembly 1
2. BD715508 Housing 1
3. BD735608 Bolt, Guide Wheel, 1/4-20 x 1.75"L. 2
4. BD735607 Guide Wheel 2
5. BD735611 Jam Nut, 1/4-20 serrated flanged 2
6. BD735609 Nylock Nut, 1/4-20 2
7. BD735602 Slotted Blade 2
8. BD735601 Solid Blade 2
9. BD715509 Blade Support 2
10. BD735604 Blade End Screw, 10-32 x 1/2"L, SS 4
11. BD735605 Blade End Screw Nut, 10-32, Nylock 4
12. BD735603 Blade Attach’t Screw, 10-32 x 5/8"L SS 18
13. BD735612 Mounting Bolts, 1/4-20 x 3/4"L 6
14. BD735609 Nylock Nut, 1/4-20 6
15. BD705201 Lifting Arm 2
16. BD705203 Latch 1
17. BD705202 Cross Member 1
2.–12. BD705200 Complete squeegee assembly 1
TSQ20 FRONT-MOUNTED SQUEEGEE
No. Part Num. Description Qty.
1. BD705205 Hose Assembly 1
2. BD715508 Housing 1
3. BD735608 Bolt, Guide Wheel, 1/4-20 x 1.75"L. 2
4. BD735607 Guide Wheel 2
5. BD735611 Jam Nut, 1/4-20 serrated flanged 2
6. BD735603 Blade Attach’t Screw, 10-32 x 5/8"L SS 18
7. BD735609 Nylock Nut, 1/4-20 2
8. BD735605 Blade End Screw Nut, 10-32, Nylock 4
9. BD735602 Slotted Blade 2
10. BD735601 Solid Blade 2
11. BD715509 Blade Support 2
12. BD735603 Blade Attach’t Screw, 10-32 x 5/8"L SS 4
13. BD735609 Nylock Nut, 1/4-20 4
14. BD735612 Mounting Bolts, 1/4-20 x 3/4"L 4
15R. BD705225R Lifting Arm Right Side 1
15L. BD705225L Lifting Arm Left Side 1
16. BD735613 Bolt, Lifting Arm Clamp, 5/16-18 x 1"L. 2
17. BD705209 Clamp, Lifting Arm 2
18. BD705210 Cross Member 1
19. BD735614 Nylock Nut, 5/16-18 2
20. BD735612 Bolt, Pedal Mount, 1/4-20 x 3/4"L. 2
21. BD705212 Pedal Mount 2
22. BD705213 Clamp, Pedal Mount 2
23. BD735609 Nylock Nut, 1/4-20 2
24. BD705229 Pedal Assembly 1
