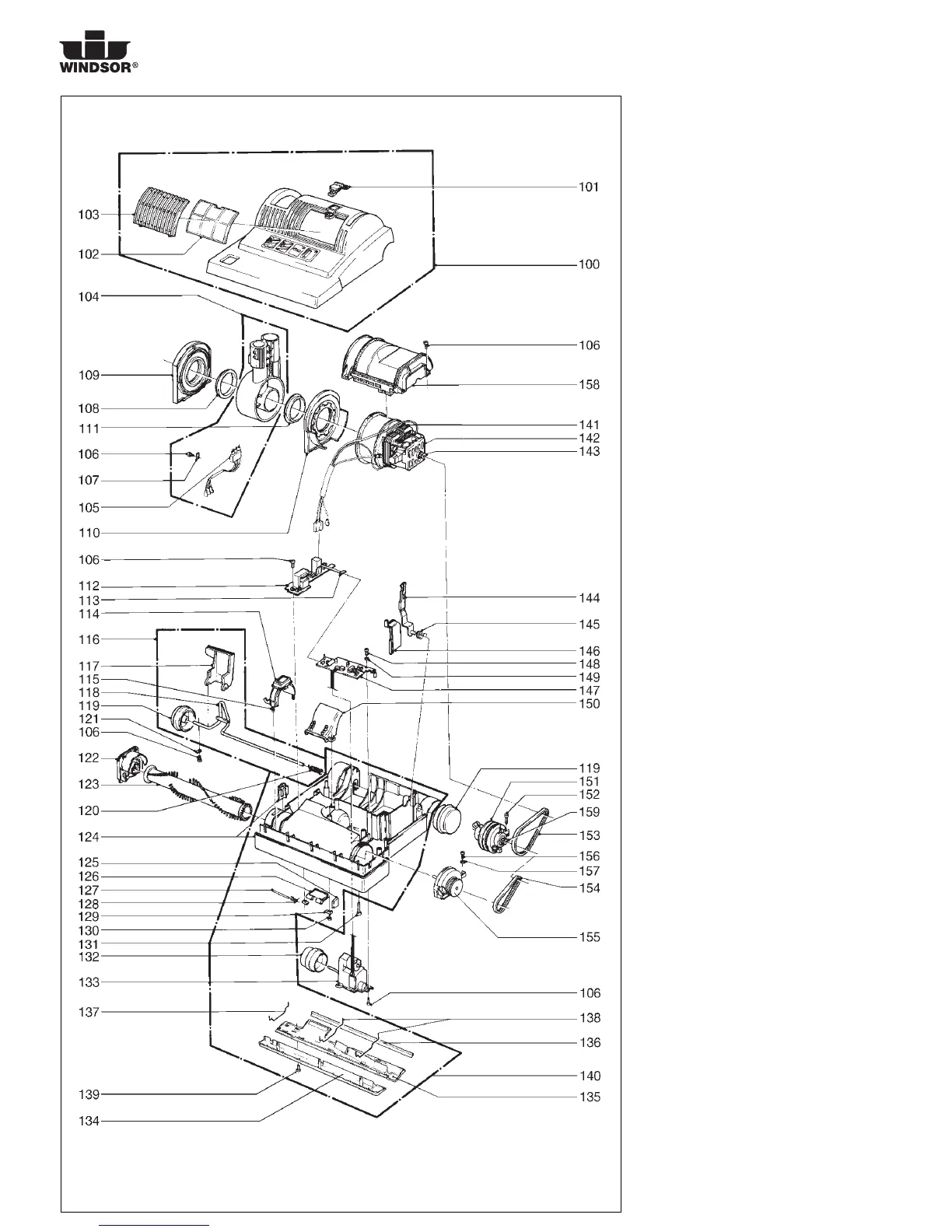

100 5485 WI Power head cover XP 12
101 5008 bl Exhaust filter catch
102 5143 Exhaust filter
103 5007 B1 Exhaust filter cover
104 5727 UL Swivel neck assembly
105 5258 UL Male contact holder
(incl. Pos. 105)
106 0102 Screw F 3,9 x 13
107 2494 Cable clamp
108 5101 Swivel neck bearing, r.h.
109 5480 Swivel neck support, r.h.
110 5479 Swivel neck support, l.h.
111 5717 Swivel neck bearing, l.h.
112 5203 ER PCB 12 V power supply
113 5205 Ribbon cable
114 5102 bl Brush roller release
115 5103 Spring
116 5051 hg Axle, assembly
117 5059 dg Foot pedal
118 5053 Axle
119 5055 hg Wheel
120 2010 Axle spring
121 2014 Axle clamp
122 5287 bl Bearing block right hand
123 5010 WI Brush roller
124 5005 hg Bumper
125 5155 hg Rubbing plate
126 5172 OR Access door (incl. Pos. 127 + 128)
127 5303 Access door axle
128 5304 Access door spring
129 5154 hg Hinge
130 0100 Screw C 2,9 x 9,5
131 0176 TL Screw AM 4 x 30,
132 5174 hg Pile adjustment wheel
133 5060 ER Servo motor with gear box
134 5411 hg Front bottom plate, cpl.
135 5412 hg Rear bottom plate, cpl.
( incl. Pos. 136 + 139)
136 5400 - 1 Sealing strip
137 5401 Wire tie
138 5402 Wire tie
139 0197 Screw M4 x 12
140 5482 HG Chassis, cpl.
141 5469 Vacuum motor 1200 W
05117 S Carbon brush set/vac mot.
142 5100 Rubber mounting
143 5462 Motor pulley
144 5129 Support lever
145 5107-1 Support spring
146 5112 sw Motor pulley cover
147 5740 ER Computer controller
148 0107 Screw C 2,9 x 13
149 0143 Washer 3,2
150 5173 sw Cover for air channel
151 5464 Sensor
152 0104 Screw C 3,9 x 25
153 5463 Belt 2MR-310-6
154 5110 Belt 219 3M-HDTII-6
155 5766 hg Bearing block l.h., cpl.
156 0103 Screw C 3,9 x 16
157 0141 Locking washer
158 5018 DG Motor cover
159 5117/1 Sensor pulley
06635 C - 10.2002
