Maintenance
CAUTION
-
Always unplug machine at mains
outlet before dismantling any
part
of
machine.
If red light
(d) shows, change paper filter bag.
To

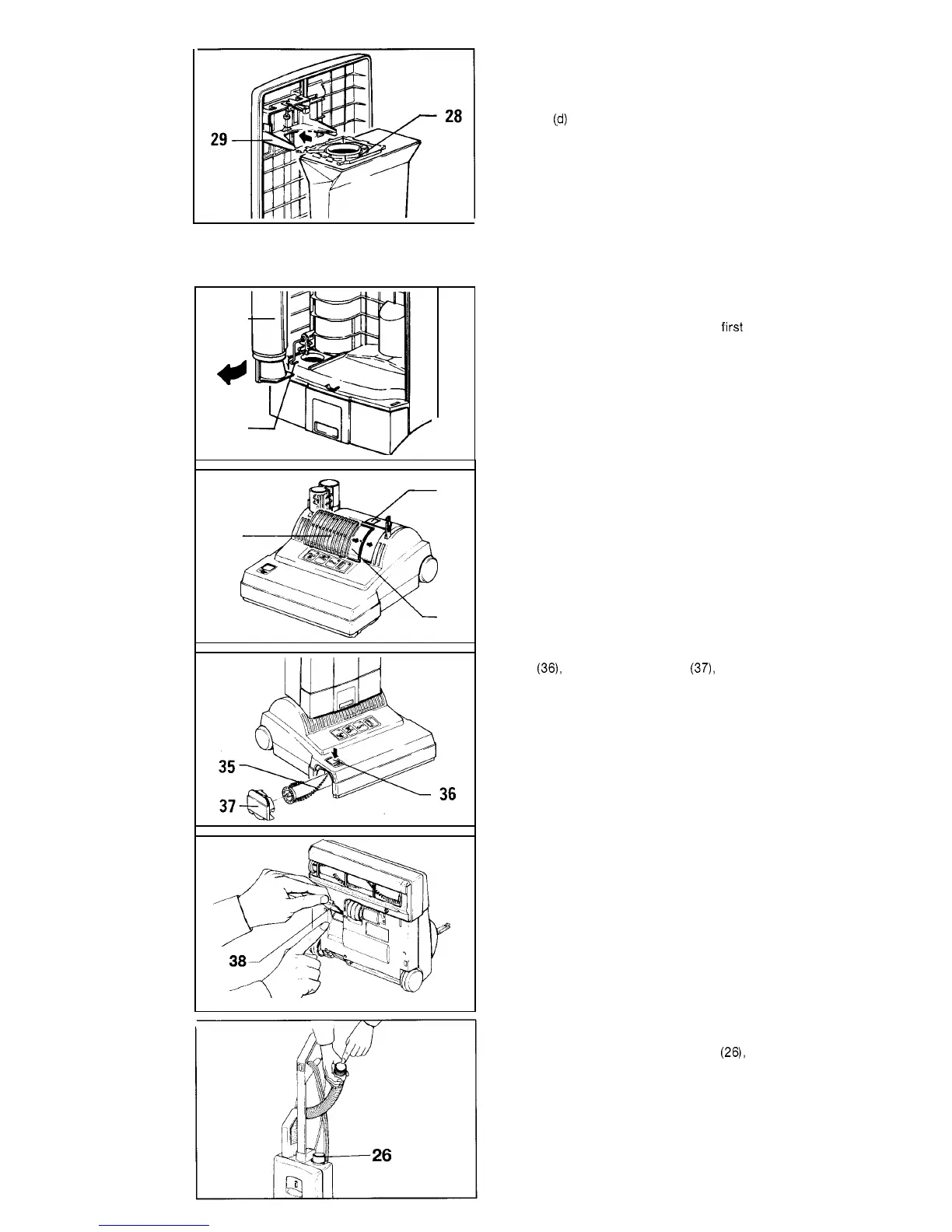

do this first pull cover release (5) picture
1
forward and
lift
the cover from the dust bag
housing. Slide the dust bag sealing plate (28)
from the holder (29). Slide the sealing plate
(28) of a new bag into the holder and push
firmly in. insert cover into dust bag housing,
push it forward then lock it in place by pushing
down the cover release (5).
The micro hygiene filter (30) needs to be
changed when it becomes clogged with dust
or after approximately 20 paper bags have
been used.
To
change the hygiene filter first
remove the cover then slide the filter out at the
bottom. To replace lift the lever and slide the
new filter in.
After 20 paper bags have been used also
change the exhaust filter
(32).
To remove the
exhaust filter push the catch (33) backward
and remove the filter cover (34) and filter.
Insert the new filter and replace the filter cover.
To
change the brush roller (35) push the
button
(36), remove the side plate (37), turn
the brush clockwise a quarter of a turn and pull
the brush roller out. Slide the new brush roller
into the brush housing and turn it until it
locates into position. Push the button (36) and
press the side plate (37) back into place.
Underneath the machine
is
an inspection door
to
check for blockages (38).
Blockages in the neck
(20
-
2)
can be
checked by first lifting
off
the dust bag housing
by pressing the catch
(8).
Then release the foot
pedal, lower the neck and check into the tube
next
to
the pedal.
Blockages in the hose can cleared by taking
the hose
off
the machine and replacing it the
wrong way round in the connecting tube
(26),
holding it upright with one hand blocking the
top and switching on the machine.
(If necessary quickly
lift
your hand on and
off
the end of the hose).
The guarantee is invalidated if take out
parts not approved by WINDSOR. eg. bags,
filters, brush roller, etc. are fitted!
