Winegard Movin' View MV3500A - Installation Diagram and Control Box; System Components Diagram; Control Box Switch Settings

6

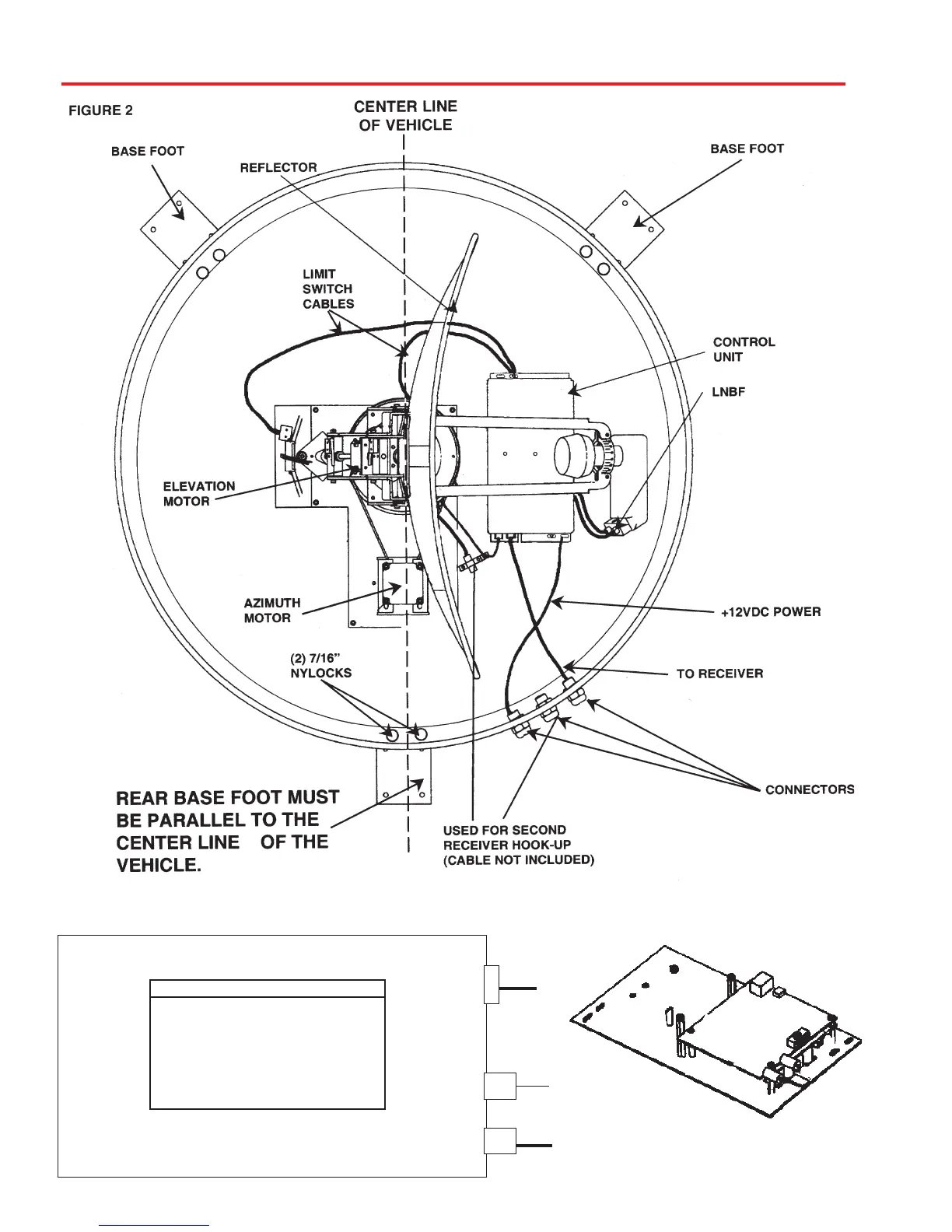

Installation Diagram
Control Box detail
LNBF
RECEIVER
P4
ELEVATION
P3
AZIMUTH
(#1 represents Switch DOWN; #0 represents Switch up)
Sat. Rcvr. Switch Set Position
........................... 1 2 3 4 5 6 7 8
DISH NETWORK ................................ 0 .. 0 .. 0 .. 1 .. 0 .. 0 .. 1 .. 1
DIRECTV .................................. 0 .. 0 .. 0 .. 0 .. 0 .. 0 .. 0 .. 1
(FACTORY PRESET)
ExpressVu ................................. 0 .. 1 .. 0 .. 1 .. 1 .. 0 .. 1 .. 1
Model MV3500A
ELECTRONICS INTERIOR VIEW
P3
P4
P4 P3
