Winegard RM-EX02 User Manual

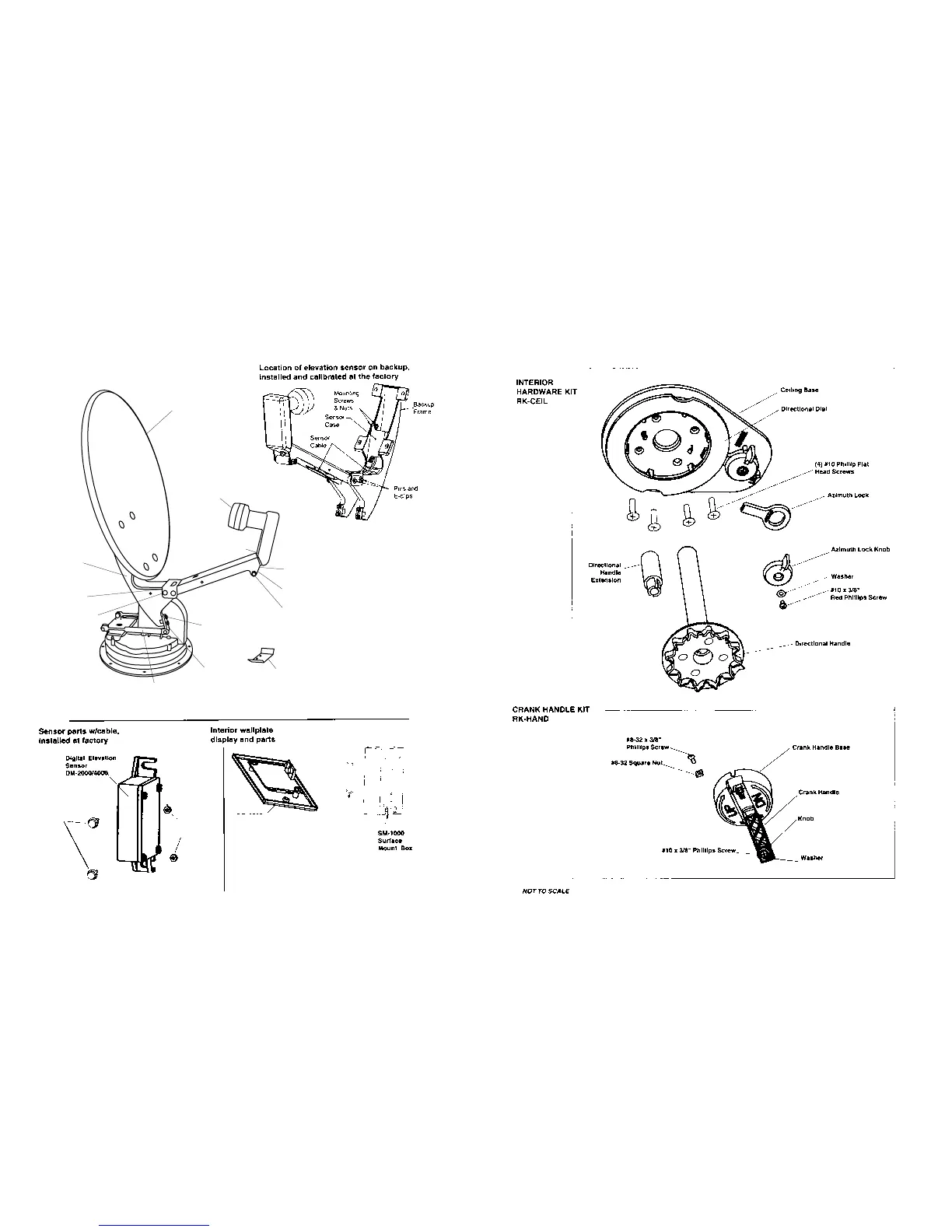

Parts List
Feed Arm
P.N. 2744946
46cmReector
(4) Flat Head Bolts
Back-up Frame
Pivot Bracket
Pin, 1/4 x 3.25” long
(Not Shown:
E-clip for 1/4” Pin
Travel Support
LNBF
LB-6000
Carriage Bolt
(not shown)
Flange Nut
1/4-20
Roller
Hex Head Bolt
1/4-20 x 2.5”
Nylock Nut
1/4-20
(not shown)
Screw #10-24 x 3/4 (4)
Clamp (2)
(2) #10-32 x 1/2”
Screw
(2) #10-32 Hex Nut
DR-4500
Wallplate
Display Unit
(2) #6 x 5/8” white
Philips screws
(2) #6 x 1/2” Hex
Head Slotted
Screw RM-46DE,
RM-FLAD,
EM-00DE
12
13
Parts List

Winegard RM-EX02 Specifications

Frequency and Gain

frequency range	10.95 - 12.75 GHz
gain at 11.2 GHz	33.22 dBi
gain at 12.1 GHz	33.89 dBi
gain at 12.6 GHz	34.23 dBi

Weight and Dimensions

height when raised	30”
height in the travel position	8”
operating radius	17”
roof space required	26”
antenna height	20.9”
antenna width	19.2”
weight	12 lbs
ship weight	20.6 lbs
