Winegard RM-DM46 User Manual

1
®

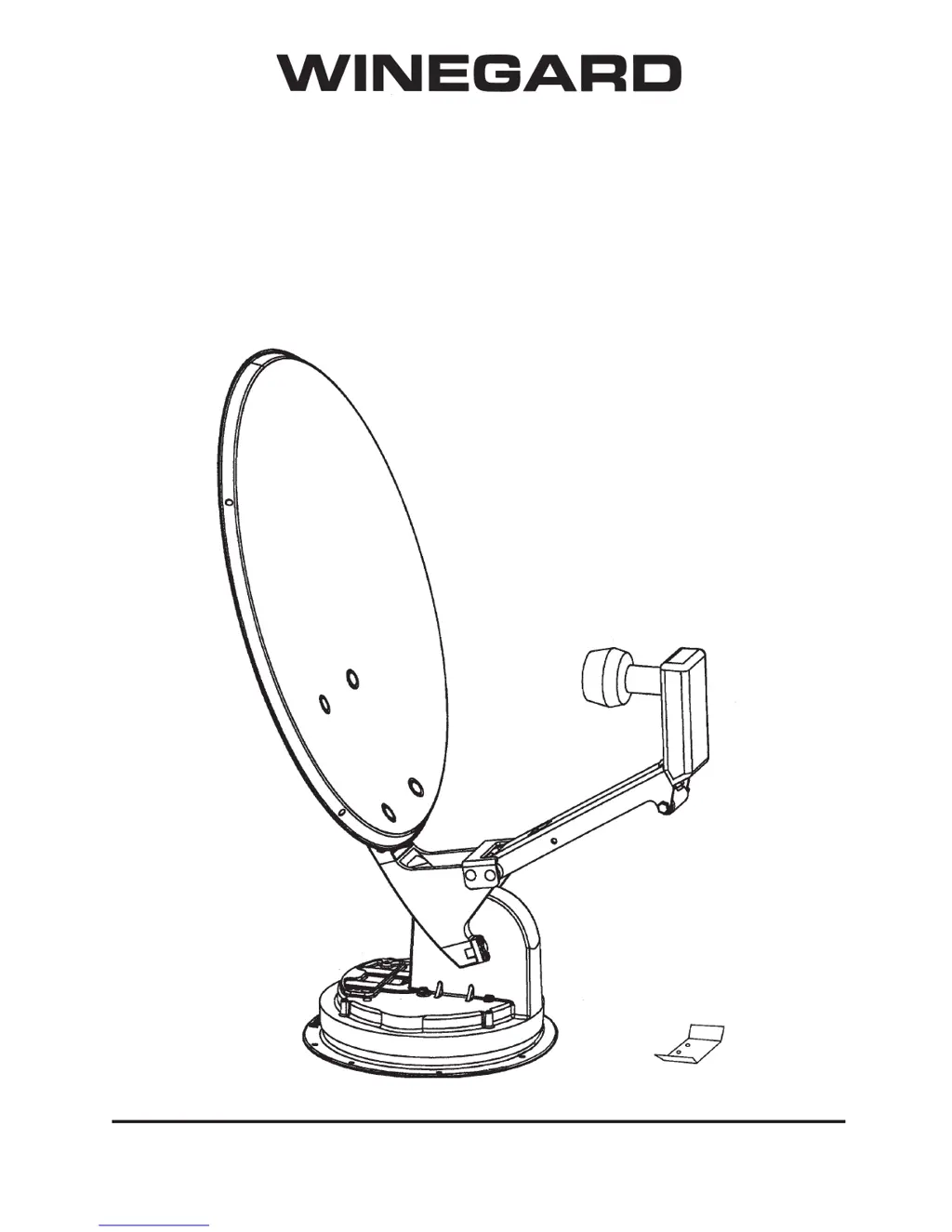

RV DIGITAL SATELLITE SYSTEM
with Digital Elevation Sensor
Model RM-DM46
may also be packaged as
RM-DM00, RMDM04, RMFLDM4
U.S. Patent Number 5,532,710
Made in U.S.A.
Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000
319/754-0600 • FAX 319/754-0787 • www. winegard.com
Printed in U.S.A. © Winegard Company 2002, 2005 2451069 Rev. 12/05

Winegard RM-DM46 Specifications

Antenna Specifications

frequency range	10.95 - 12.75 GHz
gain at 11.2 GHz	33.22 dBi
gain at 12.1 GHz	33.89 dBi
gain at 12.6 GHz	34.23 dBi
aperture efficiency	73%
cross polarization on axis	-21 dB
beamwidth at -3 dB	3.5[o]
beamwidth at -10 dB	7.0[o]

Weight and Dimensions

height when raised	30"
height in the travel position	8"
operating radius	17"
roof space required	26"
weight	12 lbs
antenna height	20.9"
antenna width	19.2"
ship weight	20.6 lbs
