Winegard RM-DM46 User Manual

9
CAUTION!
After INITIAL INSTALLATION,
the antenna
SHOULD ROTATE
APPROXIMATELY 360° FROM
TRAVEL POSITION.
The pointer on the
DIRECTIONAL HANDLE
should point towards the
RED
SCREW ON THE ROTATION
CLAMP when in the TRAVEL
POSITION.
FIGURE 14
FIGURE 15
FIGURE 16
POINT TO
BACK OF RV
Pointer must
point to RED
SCREW at
CENTER OF
ROTATION
CLAMP when in
travel position.
Rotation
Clamp
Red Screw

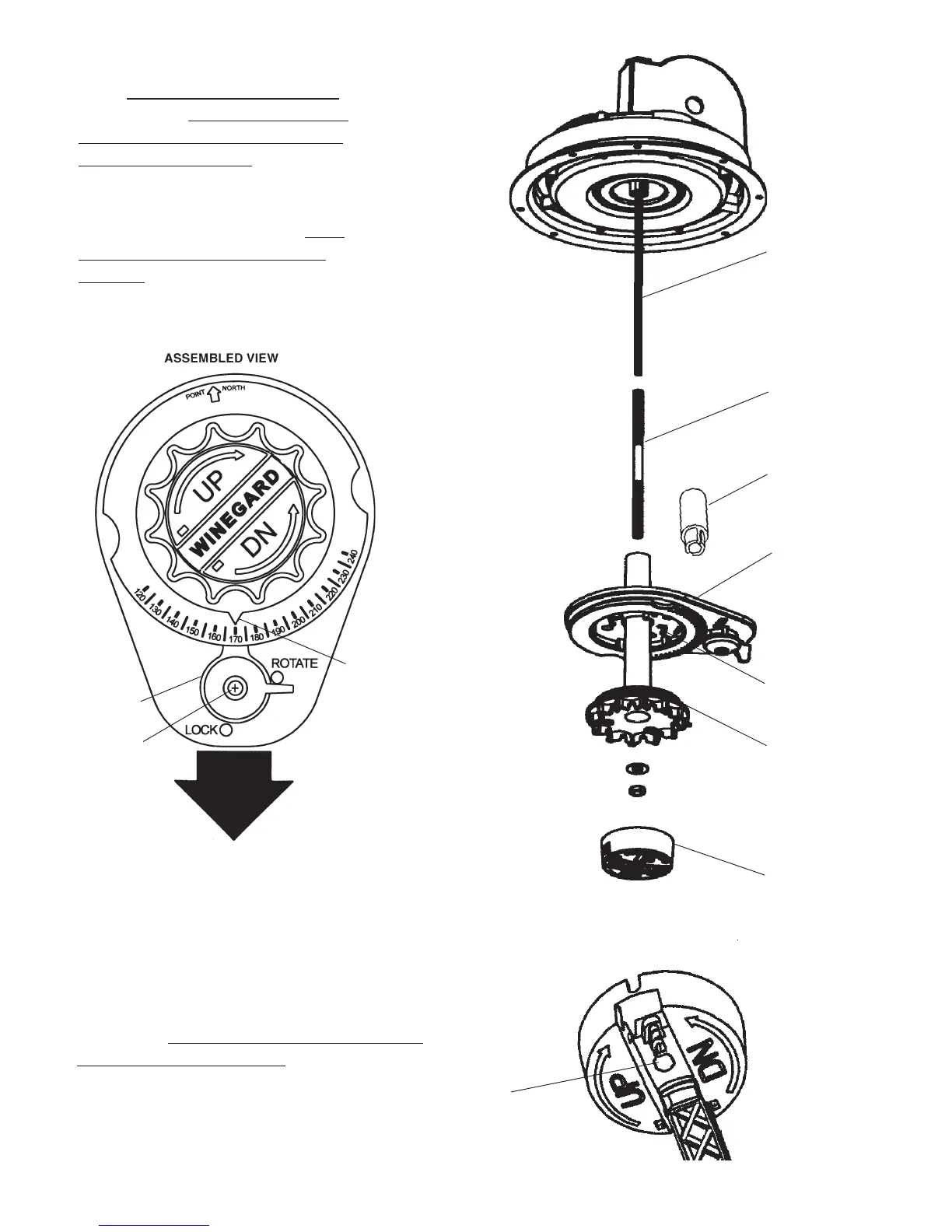

Elevating Shaft
Threaded Tube
Directional Handle
Extension
Ceiling Plate
(4) #10 Phillips
Flat Head Screws
Directional
Handle
Elevating Crank
Handle
(When installed,
extends 2-1/4”
from ceiling.) Snap
Handle into base
when not in use.
ALIGN POINTER
WITH ANTENNA
TRAVEL POSITION
CAUTION!
The antenna MUST BE IN THE TRAVEL
POSITION before aligning the directional
handle and ceiling plate!
TIGHTEN SCREW SNUGLY!

Winegard RM-DM46 Specifications

Antenna Specifications

frequency range	10.95 - 12.75 GHz
gain at 11.2 GHz	33.22 dBi
gain at 12.1 GHz	33.89 dBi
gain at 12.6 GHz	34.23 dBi
aperture efficiency	73%
cross polarization on axis	-21 dB
beamwidth at -3 dB	3.5[o]
beamwidth at -10 dB	7.0[o]

Weight and Dimensions

height when raised	30"
height in the travel position	8"
operating radius	17"
roof space required	26"
weight	12 lbs
antenna height	20.9"
antenna width	19.2"
ship weight	20.6 lbs
