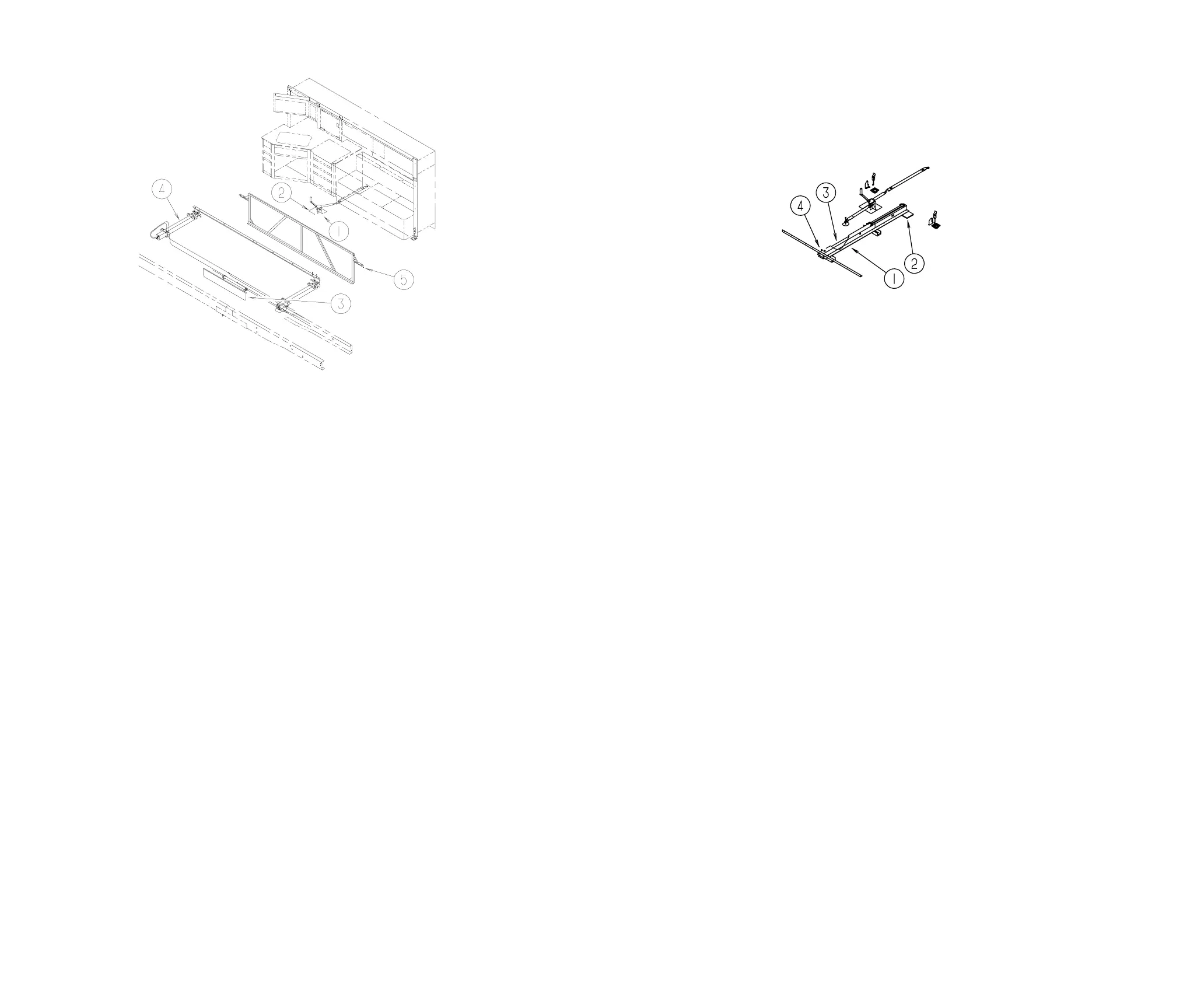

CHASSIS GROUP
GALLEY HYDRAULIC SLIDEOUT & SHIELD
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
1 115767-02-000 EA WINCH - SLIDEOUT
2 116082-03-02B EA BRACKET - WINCH
3 053322-10-000 EA SHIELD - HEAT - EXHAUST - 48" X 7.5" - STEEL
4 125687-01-000 EA SLIDEOUT - HYDRAULIC
125687-01-700 EA CYLINDER - 21" STROKE RAP90512
125687-01-701 EA HOSE - HYDRAULIC - 120" AP13772
125687-01-702 EA CYLINDER - SYNCHRONIZING RAP90471
5 126050-02-J60 EA SUPPORT - SLIDEOUT COMPARTMENT - FORD
5 126050-07-J22 EA SUPPORT - SLIDEOUT COMPARTMENT - CHEVY
CHASSIS GROUP (CONTINUED)
BEDROOM HYDRAULIC SLIDEOUT
KEY PART NUMBER U/M DESCRIPTION
1 115767-02-000 EA WINCH - SLIDEOUT
2 116082-03-02B EA BRACKET - WINCH
1 128599-02-000 EA CHANNEL - SLIDEOUT - HYDRAULIC
2 128599-03-000 EA PAD - SLIDEOUT - HYDRAULIC
3 128599-04-000 EA SLIDEOUT - HYDRAULIC CYLINDER
4 061420-05-000 EA PLUG/PLASTIC - 1.8" DIAMETER
Copyright © 2006 Winnebago Industries Inc.
