WATER & SEWAGE GROUP

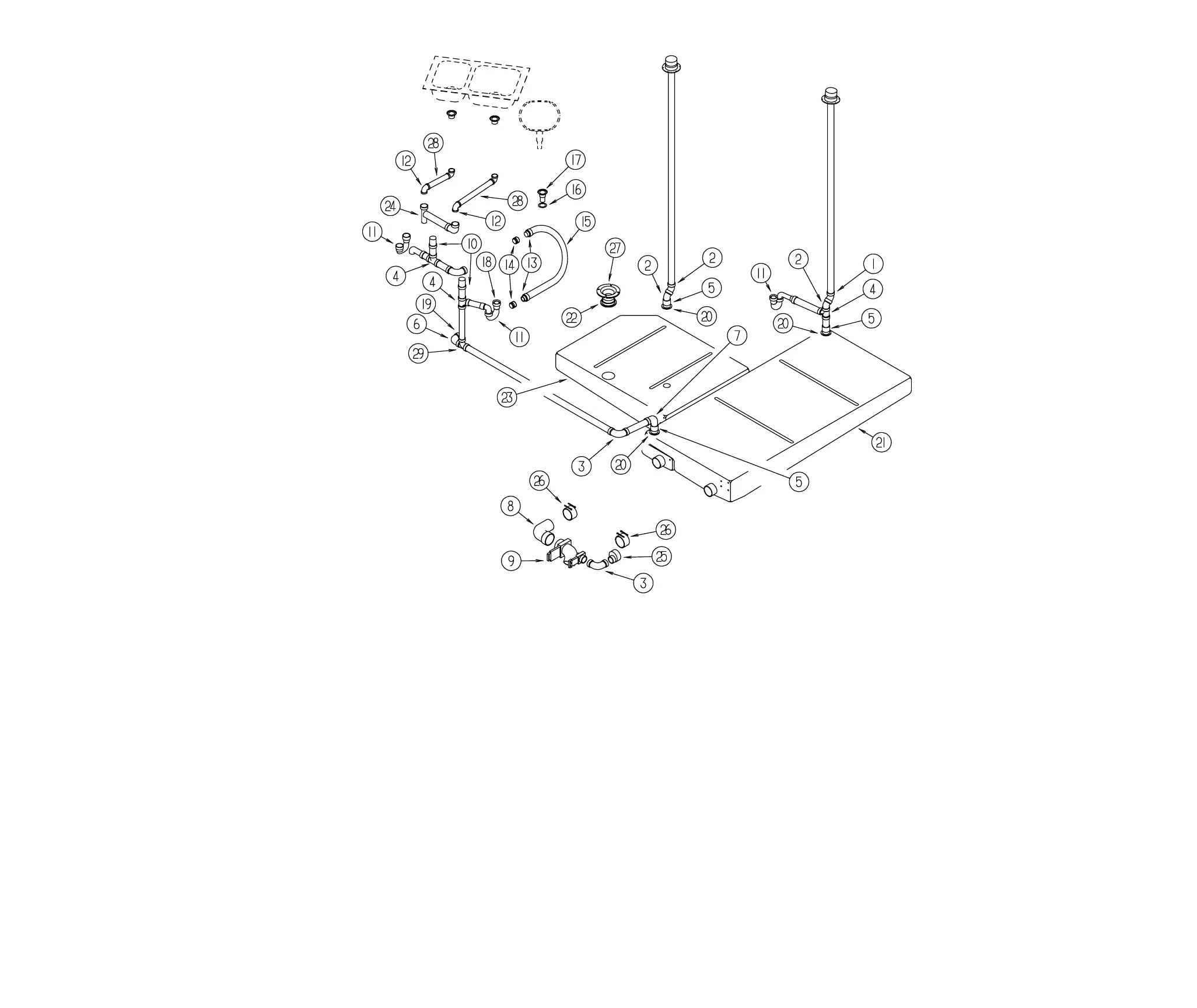

DRAINAGE SYSTEM
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
1 010006-01-000 EA ELBOW - 45 DEGREE - 1 1/2" HUB X HUB - PLASTIC
2 010051-01-000 EA ELBOW - 45 DEGREE - 1 1/2" SPIGOT & HUB - PLASTIC
3 010008-01-000 EA ELBOW - 90 DEGREE - 1 1/2" HUB X HUB - PLASTIC
4 010071-01-000 EA TEE - SANITARY - 1 1/2" HUB X HUB X HUB - PLASTIC
5 010115-01-000 EA COUPLING - 1 1/2" HUB X HUB - PLASTIC
6 033761-01-000 EA ELBOW - TURN - 90 DEGREE 1 1/2" HUB X 1 1/2" SPIGOT
7 034250-01-000 EA ELBOW - 90 DEGREE - LONG TURN - 1 1/2" HUB X HUB - ABS
8 041956-01-000 EA ELBOW - 3" STREET - 90 DEGREE PLASTIC
9 070916-01-000 EA VALVE - DUAL DUMP - W/CAP - 3" X 1 1/2"
9 070916-01-700 EA VALVE ONLY (WASTE) 3" T1003BU
9 070916-01-701 EA VALVE ONLY (WASTE)1 1/2" T1001BU
10 079968-01-000 EA VENT - MECHANICAL/TRAP ARM - ANTI-SIPHON-2" X 7.3" PLASTIC
11 107538-01-000 EA P TRAP - PLASTIC - 1 1/4" W/EXTENSION ARM
11 011071-01-000 EA P-TRAP - PLASTIC - 1 1/2" - CSA
11 109571-01-000 EA ADAPTER - P TRAP - 1 1/2"P X 1 1/4"MPT
12 125569-01-000 EA ELBOW - 1 1/2" X 90 DEGREE - DOUBLE SLIP
13 126424-01-000 EA ADAPTER - 1 1/2" MPT X 1 1/2" HUB
14 126425-02-000 EA ADAPTER - SWIVEL - 1 1/2 FPT X SPIGOT
15 126426-01-000 FT PIPE - 1 1/2" FLEXIBLE
126427-01-000 EA ADHESIVE - ALL PURPOSE - ABS/PVC
126427-02-000 EA PRIMER - CLEANER - FLEX PIPING
KEY PART NUMBER U/M DESCRIPTION
16 069735-01-000 EA WASHER - STRAINER TO TAILPIECE - PLASTIC - 1.5"
17 120981-01-01A EA DRAIN - BATH/SHOWER W/SPRING LOADED PLUNGER - BRASS
17 130403-01-000 EA NUT - SLIP - W/WINGS 1 1/2"
17 066729-01-000 EA STRAINER - TUB/SHOWER W/PLUG - CHROME
17 011069-02-000 EA TAILPIECE - TUB/SHOWER - 1 1/2" X 1 1/4" X 4" - BRASS
18 127440-02-01A EA WASHER - RUBBER - 1.8" X .1"
19 130685-01-000 EA ADAPTER - SWIVEL - 1 1/2 ACME X SOC
19 130685-03-000 EA ADAPTER - SWIVEL - 1 1/2 ACME X SPG
20 061607-01-000 EA GROMMET - HOLDING TANK - 1 1/2" NPS
21 125948-01-000 EA TANK - HOLDING - W/O FITTINGS
22 061607-02-000 EA GROMMET - HOLDING TANK - 3" NPS
23 125947-04-000 EA TANK - HOLDING - W/FITTINGS
23 125947-01-000 EA TANK - HOLDING - W/O FITTINGS
010201-01-000 EA HOSE - SEWER - 3" ID X 8'
24 011091-02-000 EA WASTE - CONTINUOUS - DOUBLE SINK
062416-01-000 EA ADAPTER - SEWER HOSE TO 3" PIPE
25 062422-01-000 EA ADAPTER - OFFSET REDUCER - 3" X 1 1/2" - PLASTIC
26 078406-01-000 EA COUPLER - RUBBER - W/CLAMPS - 3" X 3"
27 116644-01-000 EA FLANGE - CLOSET - 4" X 3"
28 126588-02-000 EA ARM - WASTE - 1 1/2 X 20 - FEMALE
29 031365-02-000 EA TEE - PLASTIC - 1 1/2" EXTENSION LG TURN
