DRIVERS COMPARTMENT GROUP

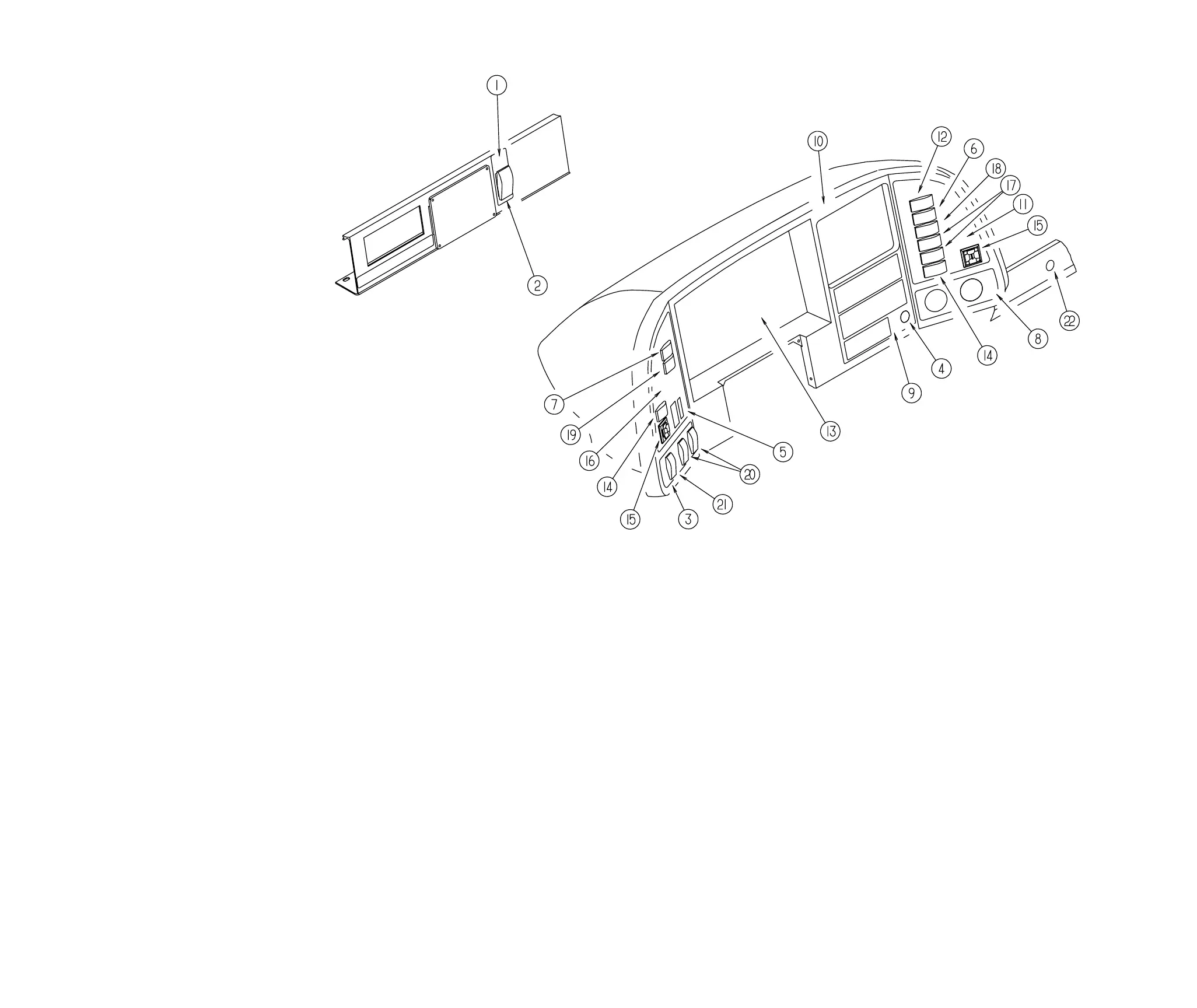

DASH WIRING INSTALLATION
KEY PART NUMBER U/M DESCRIPTION
1 116220-01-000 EA APPLIQUE - SWITCH/SLIDEOUT
2 108357-06-000 EA SWITCH - ROCKER DPDT - MOM/OFF/MOM - 6 TERMINAL
2 108356-02-01A EA COVER/ACTUATOR SWITCH - 2 ROWS DIMPLES- CONTURA II - BLACK
3 110420-04-01A EA APPLIQUE - BEZEL - LOWER/LEFT - WITHOUT PARK AND LEVEL - GM/FORD
3 110420-24-01A EA APPLIQUE - BEZEL - LOWER/LEFT - FREIGHTLINER
4 089294-01-000 EA LIGHTER - CIGARETTE - W/SOCKET & WIRE
5 NA EA NUT - HEADLAMP KNOB - BLACK - FORD CHASSIS SUPPLIED
5 NA EA KNOB - HEADLAMP - W/SHAFT - FORD CHASSIS SUPPLIED
6 108357-06-000 EA SWITCH - ROCKER DPDT - MOM/OFF/MOM - 6 TERMINAL
6 108356-01-01A EA COVER/ACTUATOR SWITCH - 3 GROOVES - CONTURA III - BLACK
7 108357-09-000 EA SWITCH - ROCKER SPDT - ON/NONE/MOM - 3 TERMINAL
7 108356-01-01A EA COVER/ACTUATOR SWITCH - 3 GROOVES - CONTURA III - BLACK
8 110420-30-01A EA APPLIQUE - BEZEL - LOWER/RIGHT
9 110420-07-01A EA APPLIQUE - BEZEL - CENTER
10 110420-08-01A EA APPLIQUE - BEZEL - UPPER CENTER
11 110420-26-01A EA APPLIQUE - BEZEL - RIGHT POWER MIRROR - BLACK
11 110420-23-01A EA APPLIQUE - BEZEL - RIGHT HAND
12 108357-08-000 EA SWITCH - ROCKER DPDT - ON/NONE/ON - 6 TERMINAL
12 108356-01-01A EA COVER/ACTUATOR SWITCH - 3 GROOVES - CONTURA III - BLACK
13 127244-06-000 EA CLUSTER - INSTRUMENT PANEL - KILOMETERS/CANADIAN - GAS - HD GM
13 127244-08-000 EA CLUSTER - INSTRUMENT PANEL-KILOMETERS/MILES-GAS-CANADIAN - HD GM
13 094794-06-000 EA CLUSTER - INSTRUMENT PANEL - KILO/FORD F53 - F5TD-10849-BB - FORD
13 127244-02-000 EA CLUSTER - INSTRUMENT PANEL - K/M - GAS - CANADIAN - GM
KEY PART NUMBER U/M DESCRIPTION
14 108357-14-000 EA SWITCH - ROCKER SPDT W/LIGHT - ON/NONE/OFF - 4 TERMINAL
14 108356-03-01A EA COVER/ACTUATOR SWITCH -3 GROOVES W/LIGHT-CONTURA III-BLACK
15 088246-01-000 EA SWITCH - REMOTE - EXTERIOR - SQUARE PUSH
16 110420-19-01A EA APPLIQUE - BEZEL - LEFT HAND - GM
16 110420-25-01A EA APPLIQUE - BEZEL - LEFT - BLACK - FORD
16 110420-20-01A EA APPLIQUE - BEZEL - LEFT HAND - POWER MIRROR - GM DIESEL ONLY
16 110420-21-01A EA APPLIQUE - BEZEL - LEFT HAND - FREIGHTLINER
17 108357-03-000 EA SWITCH - ROCKER SPDT - ON/OFF/ON - 3 TERMINAL
17 108356-01-01A EA COVER/ACTUATOR SWITCH - 3 GROOVES - CONTURA III - BLACK
17 096241-03-000 EA SWITCH-BLANK
18 108357-10-000 EA SWITCH - ROCKER SPDT - W/LIGHT - MOM/NONE/MOM - 5 TERMINAL
18 108356-03-01A EA COVER/ACTUATOR SWITCH -3 GROOVES W/LIGHT-CONTURA III-BLACK
19 108357-01-000 EA SWITCH - ROCKER SPST - ON/OFF - 2 TERMINAL
19 108356-01-01A EA COVER/ACTUATOR SWITCH - 3 GROOVES - CONTURA III - BLACK
20 108357-07-000 EA SWITCH - ROCKER SPDT - MOM/OFF/MOM - 3 TERMINAL - FORD/GM
20 108356-01-02A EA COVER/ACTUATOR SWITCH - 3 GROOVES - CONTURA III - BLACK - FORD/GM
21 108357-05-000 EA SWITCH - ROCKER SPDT - ON/NONE/ON - 3 TERMINAL - GM
21 108357-07-000 EA SWITCH - ROCKER SPDT - MOM/OFF/MOM - 3 TERMINAL - FORD
21 108357-01-000 EA SWITCH - ROCKER SPST - ON/OFF - 2 TERMINAL - FREIGHTLINER
21 108356-01-01A EA COVER/ACTUATOR SWITCH - 3 GROOVES - CONTURA III - BLACK
22 111414-01-000 EA RECEPTACLE - 12V - W/O BIMETAL
077031-03-000 EA FILM - WHITE - .75" X 1"
103603-01-000 EA BULB - 12 VOLT - #74 - .12A WEDGE - GE 22-25 USED IN DASH
