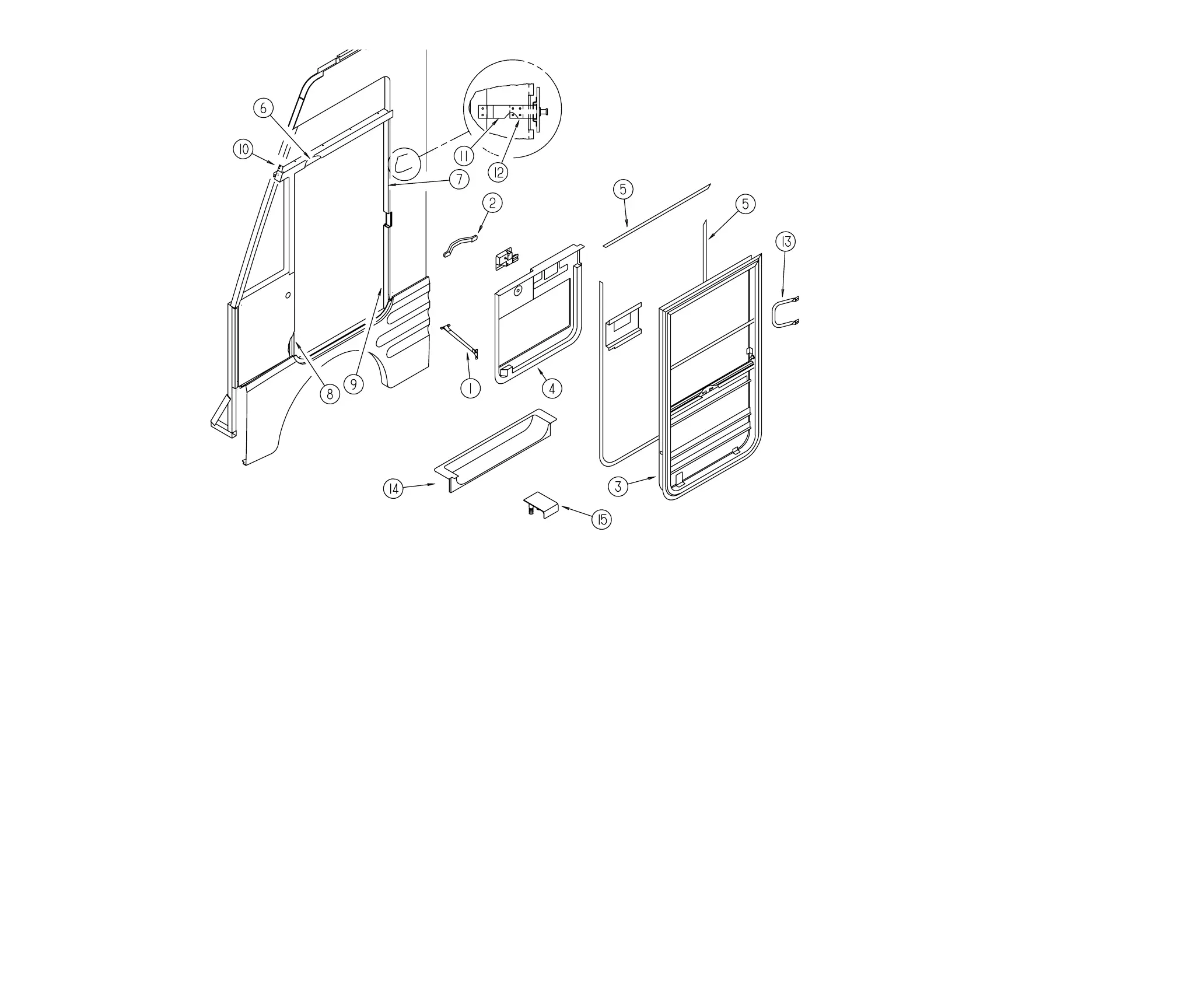

WINDOW, VENT & EXTERIOR DOOR GROUP (CONTINUED)
DRIVERS DOOR
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
1 109378-01-000 EA STRAP - CHECK - DRIVER DOOR - 12.8"
2 110604-01-01A EA HANDLE - ASSIST - DRIVER DOOR - 10.8" LONG - BLACK
3 125581-05-01A EA DOOR - DRIVER - NON-POWER
106469-01-702 EA SEAL-DOOR, (FRAME) EA=1 122-040984
106469-01-705 FT CHANNEL-RUN, SLIDING 122-010850
106469-01-709 FT WEATHERSTRIP FUZZY 171-040630
106469-01-723 EA SEAL-BULB ASM. (JAMB) 171-040985
106469-04-703 EA BOLT-STRIKER, W/WASHER 248-041152
106469-04-704 EA NUT ASSEMBLY-CAGED W/STRIKER 248-041151
106469-04-705 EA ROD-LATCH, HORIZONTAL 203-041139
106469-04-711 EA ROD-LOCK, HORIZONTAL 203-041137
106469-04-712 EA HANDLE/DOOR-INNER W/HARDWARE 248-041402
106469-04-713 EA ROD-CLIP, LH 248-041154
106469-04-714 EA ROD-CLIP, RH 248-041153
106469-05-702 EA HINGE - 42" 211-041194
106469-05-706 EA LATCH-ROTARY, W/LINKAGE 248-041150
125581-03-700 EA MULLION RAIL- BLACK V123-84
125581-03-703 FT WEATHERSTRIP - BELTING 132-041069
125581-03-704 EA PADDLE - W/O LOCK/RH - KEY 1 248-041524
125581-04-700 EA ROD - LATCH/VERTICAL ADJUST. 203-041767
125581-04-701 EA ROD - LOCK/VERTICAL ADJUST. 203-041768
125581-04-703 EA FRAME - MOUNTING - BLACK V180-35L
125581-04-704 EA GLASS - ROLL-UP 106-041821
125581-04-705 EA GLASS - STATIONARY 106-041547
125581-04-706 EA FRAME - DOOR - SUB-ASSEMBLY V180-94L
125581-04-707 EA CHANNEL - ROLL UP GLASS V156-60
125581-04-708 EA CHANNEL - STATIONARY GLASS V156-61
125581-04-709 EA REGULATOR - MANUAL 410-080389
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
125581-04-710 FT VINYL - GLAZING 132-041484
125581-04-711 EA CHANNEL-GLASS - LIFT BRKT N135-66
125581-05-700 EA INNER SILL - BLACK V130-64L
125581-05-702 EA HANDLE - REGULATOR 182-041785
4 125899-03-02A EA PANEL - CAB DOOR - INNER/DRIVER - ANTELOPE
4 125899-03-01A EA PANEL - CAB DOOR - INNER/DRIVER - TITANIUM
5 109235-01-01A FT COVER - SCREW - MAT BLACK
5 109235-01-05A FT COVER - SCREW - BRIGHT WHITE
6 125725-01-01A EA FRAME - DOOR - 33.5" - BLACK
7 125725-03-01A EA FRAME - DOOR - BLACK
8 125725-07-01A EA FRAME - DOOR - BLACK
9 125725-08-01A EA FRAME - DOOR - BLACK
10 125804-01-02B EA ANGLE - DOOR SUPPORT - E-COATED (ITASCA 24 DEGREE FRONT)
10 125804-02-02B EA ANGLE - DOOR SUPPORT - E-COATED (WINNEBAGO 10 DEGREE FRONT))
11 126506-01-02B EA BRACKET - STRIKE - DRIVER DOOR - E-COATED
12 126534-01-02B EA SPACER - STRIKE - DRIVER DOOR - E-COATED
13 108832-02-01A EA HANDLE - ASSIST - DOOR/DRIVER
14 102569-02-000 EA MAT - ANTI SLIP - LOWER
14 107818-05-03A EA TRIM - STEP/DRIVER DOOR - ANTELOPE
FROM: 00-00-00 THRU: 12-06-98
14 131849-04-03A EA TRIM - STEP - DRIVER - ANTELOPE
FROM: 12-07-98 THRU: 99-99-99
14 107818-05-04A EA TRIM - STEP/DRIVER DOOR - TITANIUM
FROM: 00-00-00 THRU: 12-06-98
14 131849-04-02A EA TRIM - STEP - DRIVER - TITANIUM
FROM: 12-07-98 THRU: 99-99-99
15 110063-01-000 EA PLATE - STEP (FREIGHTLINER)
15 102569-03-000 EA MAT - ANTI SLIP - 3.93" X 5.90" (FREIGHTLINER)
