SECTION 5
DASH / AUTO
5 - DASH / AUTO
See your chassis operator manual for com-
plete instructions and precautions on the cruise
control.
COMFORT CONTROLS
Controls for the air conditioner, heater, de-
froster and vent are all combined into one control
panel. Refer to the following instructions for use
of individual controls.
Fan Switch - Smallest dot is lowest air move-
ment; Largest dot is maximum air movement.
Fan will run at set speed when mode knob is in
any position except Off. When mode knob is set
to Off, the fan will not run.
Temp Control - Blue = Cold / Red = Warm
Mode Selector Positions:
Max A/C - Cab air is recirculated (and re-cooled)
through air conditioner.
Norm A/C - Directs outside air through air con-
ditioner cooling fins to reduce cab temperature.
NOTE: The dash air conditioner is not designed
to cool the entire interior of the coach,
but is intended to cool the cab area only.
Vent - Directs outside air through dash vents. In-
coming air temperature can be adjusted using
temp control knob.
Floor - Directs most air to floor vents and small
amount to windshield defrost vents.
Mix - Splits air between floor and windshield de-
frost vents.
Def - Directs most air to windshield defrost vents
and small amount to floor vents.
Off - When no heating, cooling or ventilation are
required; closes all air dampers and turns fan off.
Rear Coach Heater
To provide auxiliary heat to the rear of the ve-
hicle, turn the coach heater fan switch to the de-
sired speed.
Defrost Fan Switch
The two-speed auxiliary defrost fans are in-
tended to assist the automotive windshield de-
froster system in clearing fog and frost in cold
weather or humid conditions. The middle posi-
tion on the switch is OFF.
Do not operate the cruise control on
icy or extremely wet roads, winding
roads, in heavy traffic, or in any other
traffic situation where a constant
speed cannot be maintained.
WARNING

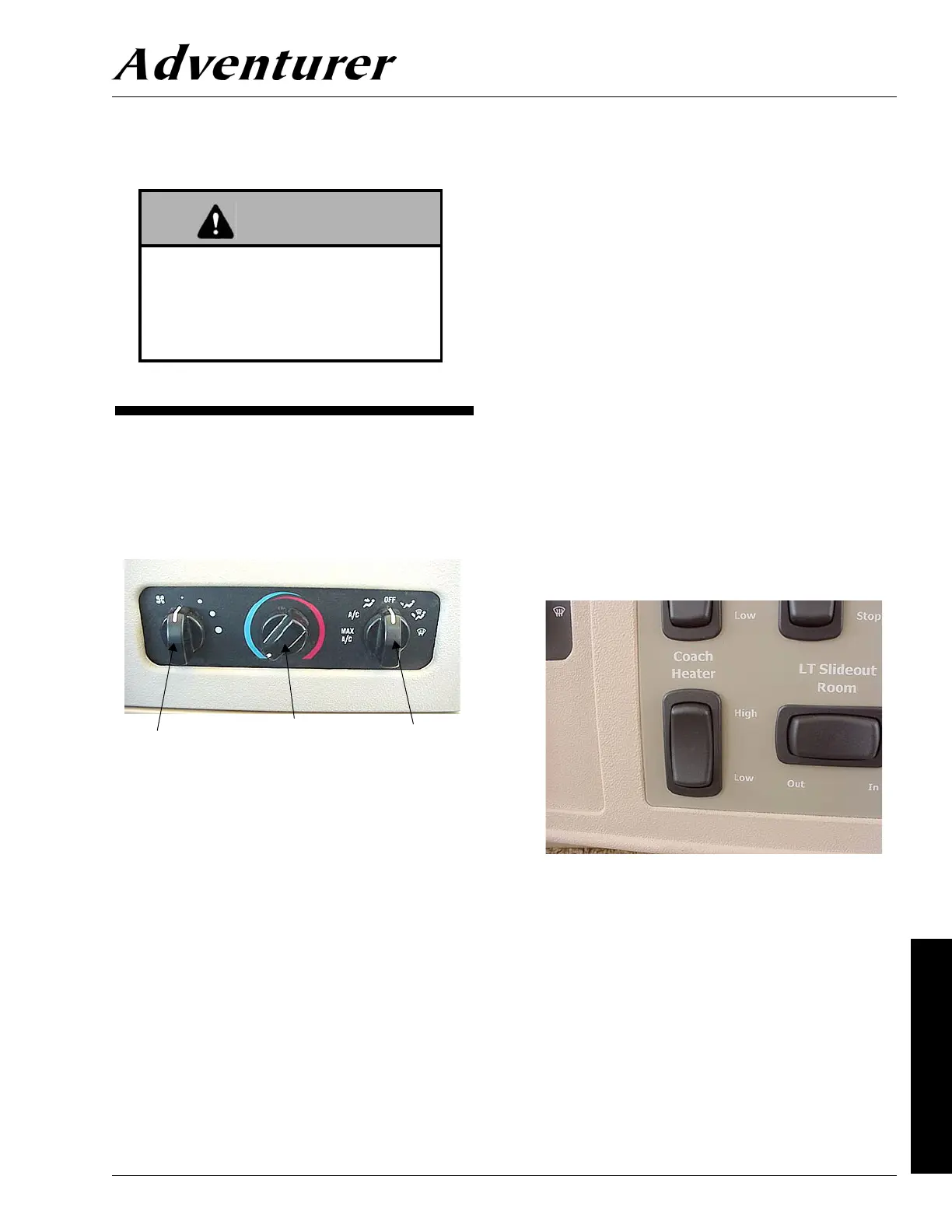

Fan Switch
Temp
Control
Mode
Selector
Rear Coach
Heater Switch
To Next Page
