Winnebago Adventurer 2005 User Manual

12-3
SECTION 12
FURNITURE & SOFTGOODS
14 - SLIDEOUT ROOM
12 - FURNITURE & SOFTGOODS

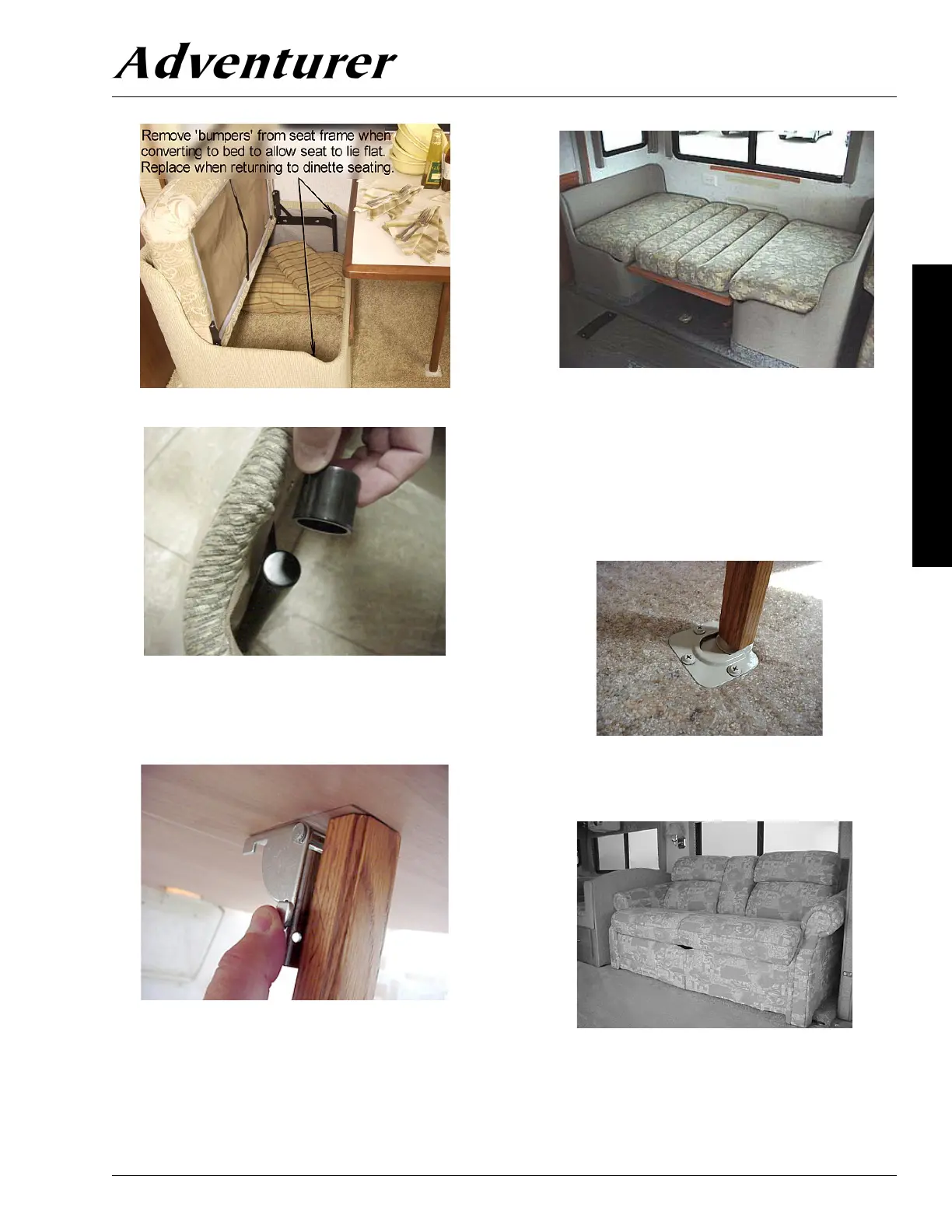

2. Release the catch on the table leg brace and
fold the leg up against the bottom of the
table.
3. Remove the table from the wall support
bracket by lifting the end of the table. Then
lower the table to rest on the cleats attached
to each dinette bench.
4. Arrange dinette cushions to cover bed area.
Bed to Dinette:
1. Replace the table onto the wall support and
lower the table leg.
2. Make sure that the table leg is secured into
the floor support bracket and the leg brace is
locked.
Rest Easy
TM
Multi-Position Lounge -
Optional
