Assembly instructions | 89014664; 2022-04 | 5
Depending on the configuration of the transfer strip, voltage is present at the RINSE and DETERGENT terminals.
Terminal Voltage present Condition Restriction
DETERGENT While machine fills – Door closed
– Minimum water level
in the tank
Parallel to solenoid valve
– While machine fills
– During the rinse
– Door closed – Not in the drainage programme
WASH Parallel to wash pump – Door closed – Not in the drainage programme
– Not while the machine is being filled
– Not during the descaling and basic clean-
ing programme
RINSE Parallel to rinse pump – Door closed – Not in the drainage programme
Parallel to solenoid valve
– While machine fills
– During the rinse
– Door closed – Not in the drainage programme
6 Start up the dosing device
Ø Close the cover of the warewasher.
Ø Switch on the mains voltage and switch on the warewasher.
Ø Put the dosing device into operation properly.
Ø Carry out safety inspection in accordance with DIN VDE 701.
Ø Activate several washing programmes and check the warewasher and installed components for leaks.
7 Configuring the transfer strip
The transfer strip is configured in the chef menu.

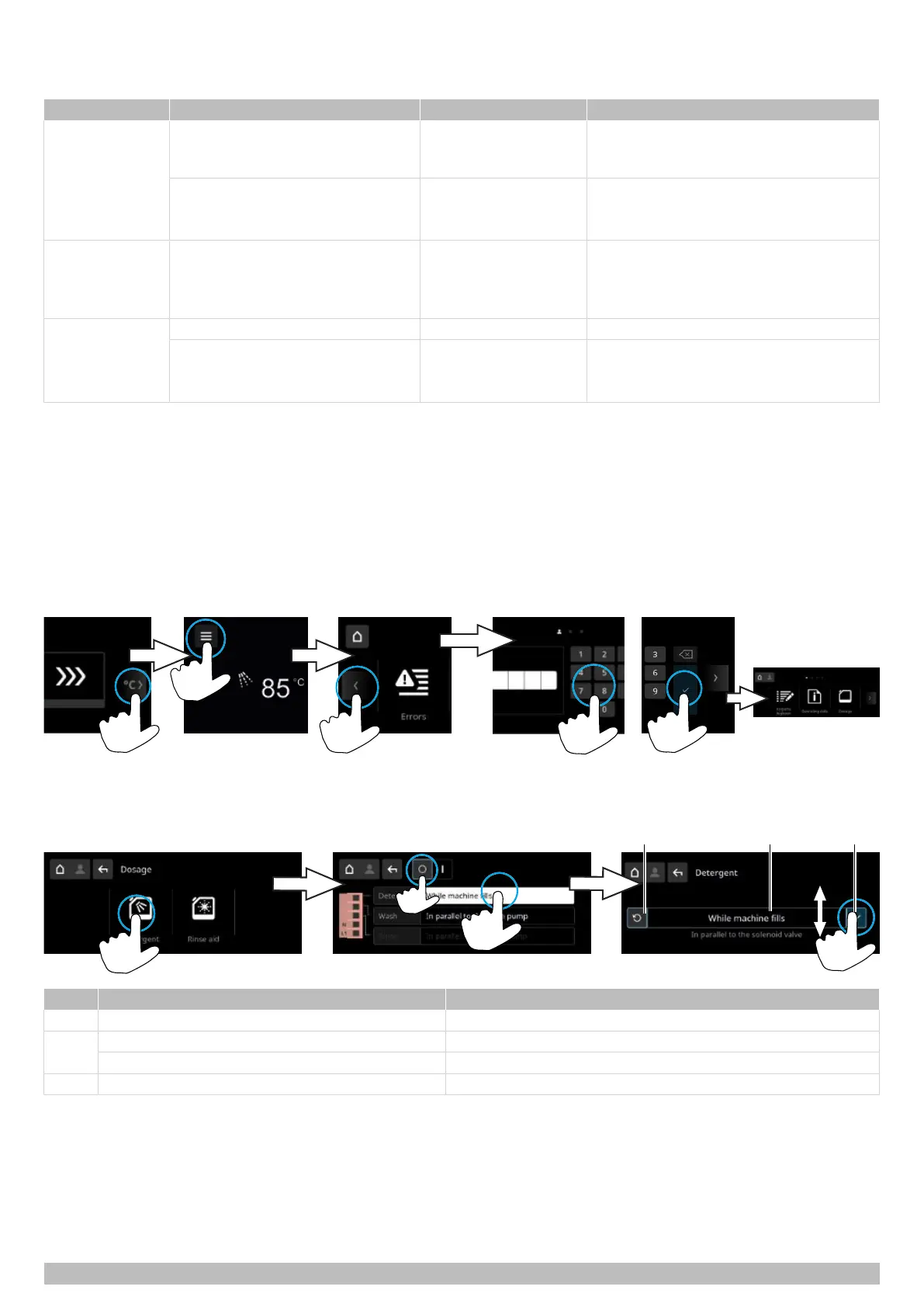

Access the chef menu
A PIN protects the menu from unauthorised access. The PIN is 1575. If you enter your PIN incorrectly three times in a row, input will be
blocked for 10 minutes.
Setting the detergent dosing device
Item Name Note
1 Reset to default setting
2 While machine fills For dosing devices with a fixed output (type-dependent)
Parallel to solenoid valve For dosing devices with adjustable output
3 Save settings
To Next Page
