3 Connecting the dosing tubes and suction tube

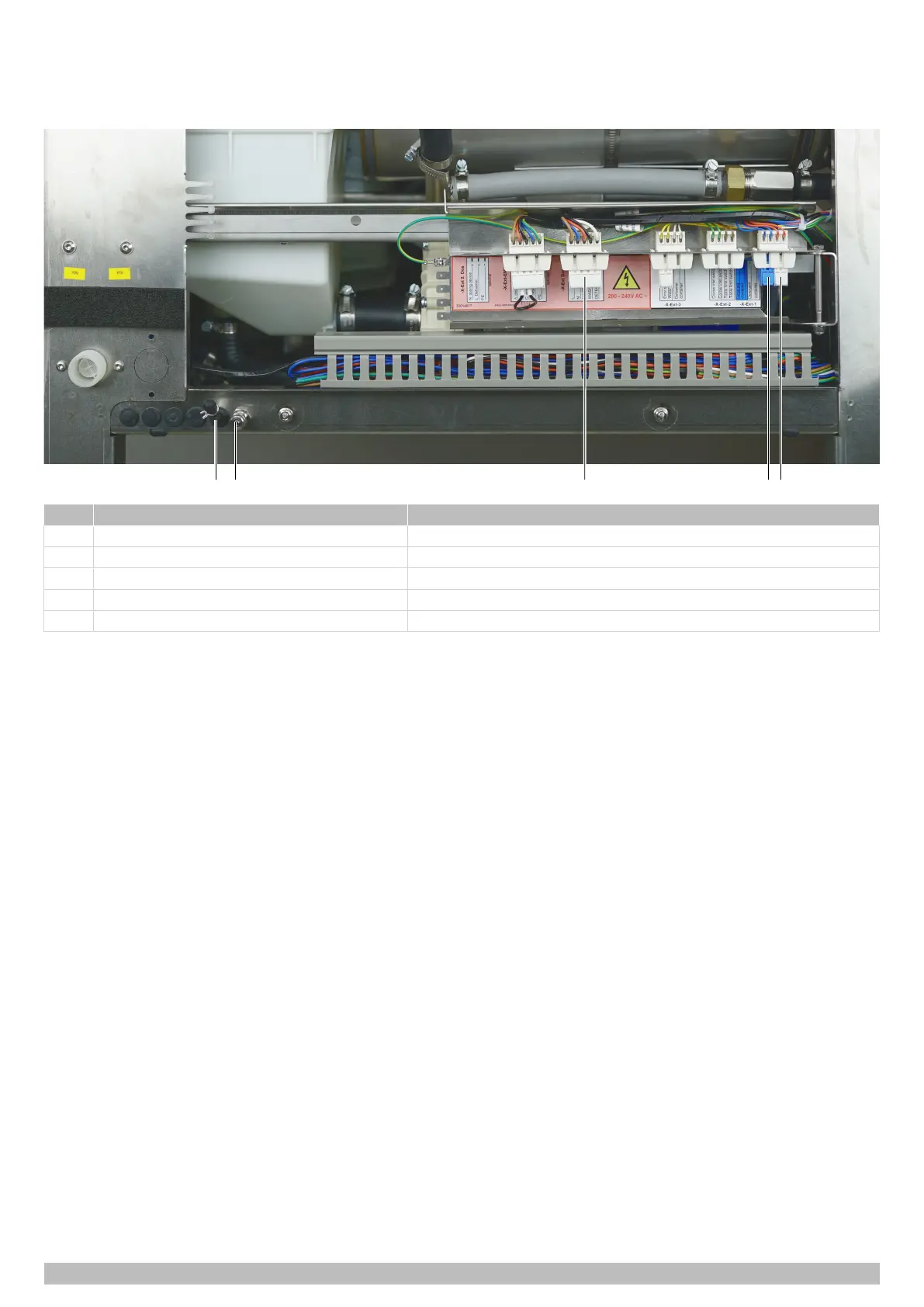

Terminals
54321
Item Name Note
1 Connection for detergent dosing hose Hoses with 5 mm inner diameter
2 Connection for rinse aid dosing hose Hoses with 4 mm inner diameter and 1 mm wall thickness
3 Transfer strip for external dosing devices
4 Plug for rinse aid suction tube Blue plugs
5 Plug for detergent suction tube White plugs
Ø Disconnect the warewasher from the electrical mains supply and secure against unintended activation.
Ø Remove the lateral cover from the warewasher.
Ø Install the dosing device on-site.
Ø Fasten detergent dosing hose to detergent connection (1) with wire hose clip.
Ø Plug the rinse aid dosing hose into the plug connection (2).
Ø Connect the connection cable of the suction tube on the plug (4 / 5).
Ø Ensure that the dosing hose and connection cable are guided kink-free.
Note:Rinse aid dosing device must dose against pressure. Pressures of up to 2 bar are present at the boiler of the machine.
Also take into account the height difference between the dosing device and machine. A non-return valve is installed in the ma-
chine.
