Winterhalter UC V02 Series Assembly Instructions

Assembly instructions | 89014664; 2022-04 | 3
4 Install conductance-controlled dosing device
NOTE
Danger of rusting and clogged jets caused by drilling swarf!
Rusting drilling swarf can also cause “stainless steel” to begin to rust.
Ø Remove drilling swarf from the interior of the warewasher.

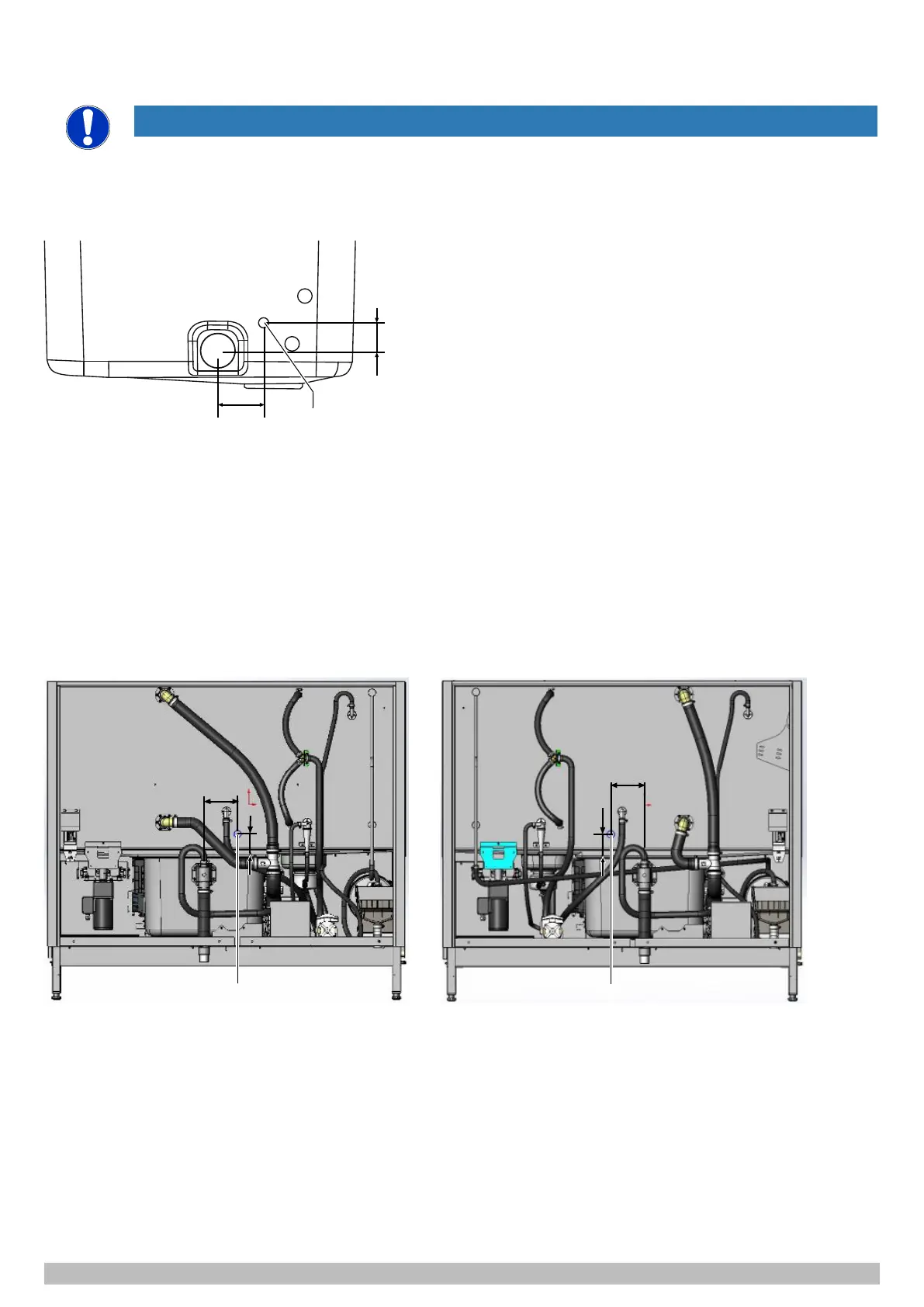

4.1 Install measuring electrode
54
90
1
Ø Open door.
Ø Remove the lower wash arms and filter cassette.
Ø Line the interior of the tank with cloths or suitable paper to catch drilling swarf.
Ø Determine the size of the drill hole according to the measuring electrode.
Ø Drill a hole for the measuring electrode at position (1).
Ø Deburr the drillhole.
Ø Remove drilling swarf from the interior of the warewasher.
Ø Install measuring electrode.
Ø Lead the connection cable of the measuring electrode to the dosing device.
4.2 Assemble injection hose for dosing device for powder
150
2
70
150
2
70
CTR R-L
CTR L-R
Ø Open door.
Ø Remove the lower wash arms and filter cassette.
Ø Line the interior of the tank with cloths or suitable paper to catch drilling swarf.
Ø Determine the size of the drill hole according to the flushing nozzle.
Ø Drill a hole for the inflow point at position (2).
Ø Deburr the drillhole.
Ø Remove drilling swarf from the interior of the warewasher.
Ø Mount the flushing nozzle on the warewasher.
Ø Fasten the injection hose to the flushing nozzle with a hose clamp.
Ø Seal openings in cover and attach edge protection.
