4.2 Bracket Mounting
1. Desktop Mounting Method 1 (Recommended for Desktop Mounting)

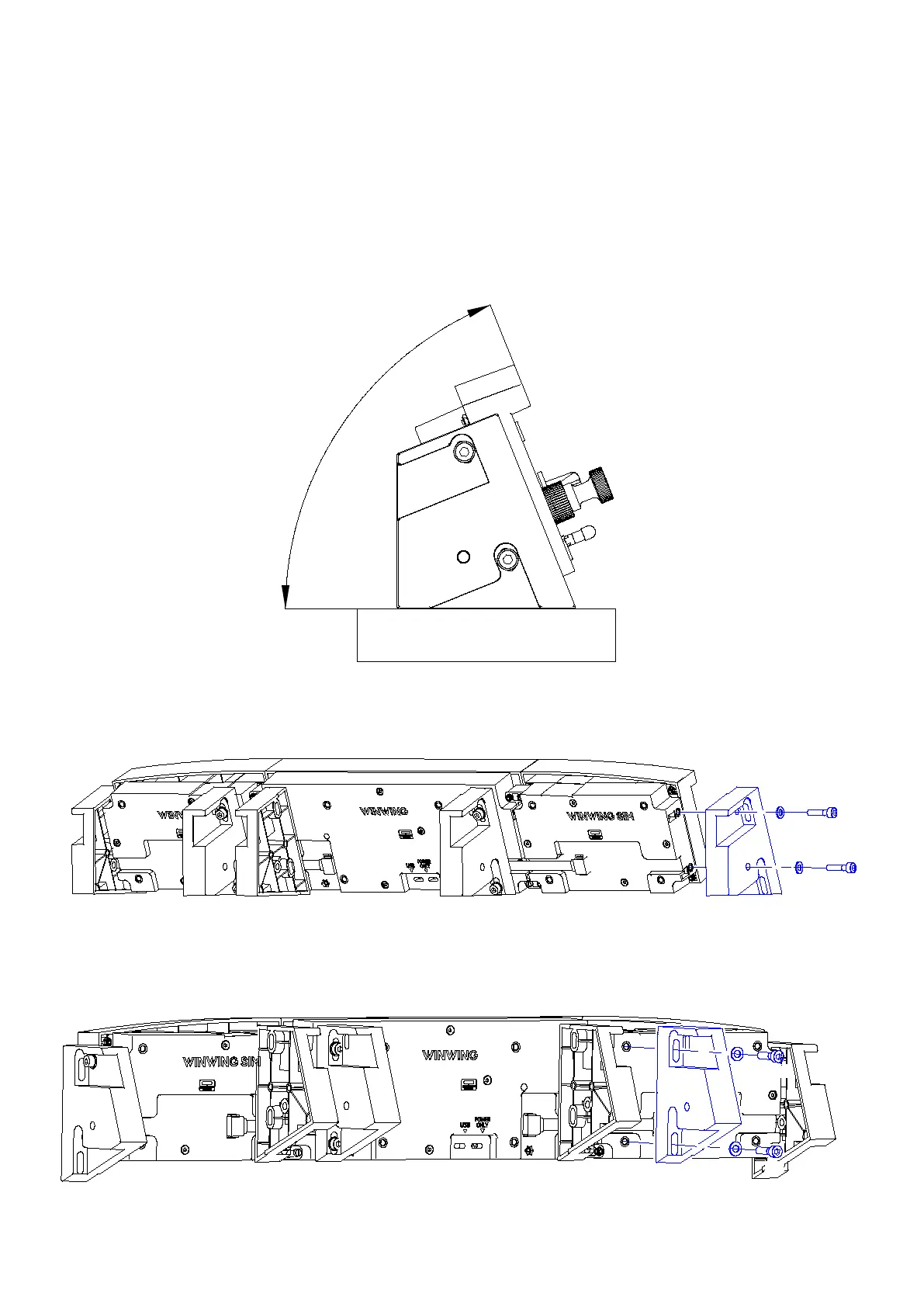

Bracket Mounting: Install the bracket at a 71-degree angle relative to the desktop (the
same as the real aircraft view).
71°
① Install the left bracket.
2#
11#
5#
11#
5#
11#
5#
11#
5#
3#
3#
11#
5#
11#
5#
11#
5#
11#
5#
2#
*Screw in the screws, but do not tighten them yet.
② Install the rear bracket.
2#
11#
5#
11#
5#
11#
5#
11#
5#
3#
3#
11#
5#
11#
5#
11#
5#
11#
5#
2#
*Screw in the screws, but do not tighten them yet.
