4-2.Directionofinstallation
Theintegralorificeplatemustbeinstalledaccordingtothedirectionofflow.Theinstallationdirections
inthefigurebelowarerecommendeddependingonthetypeoffluid.

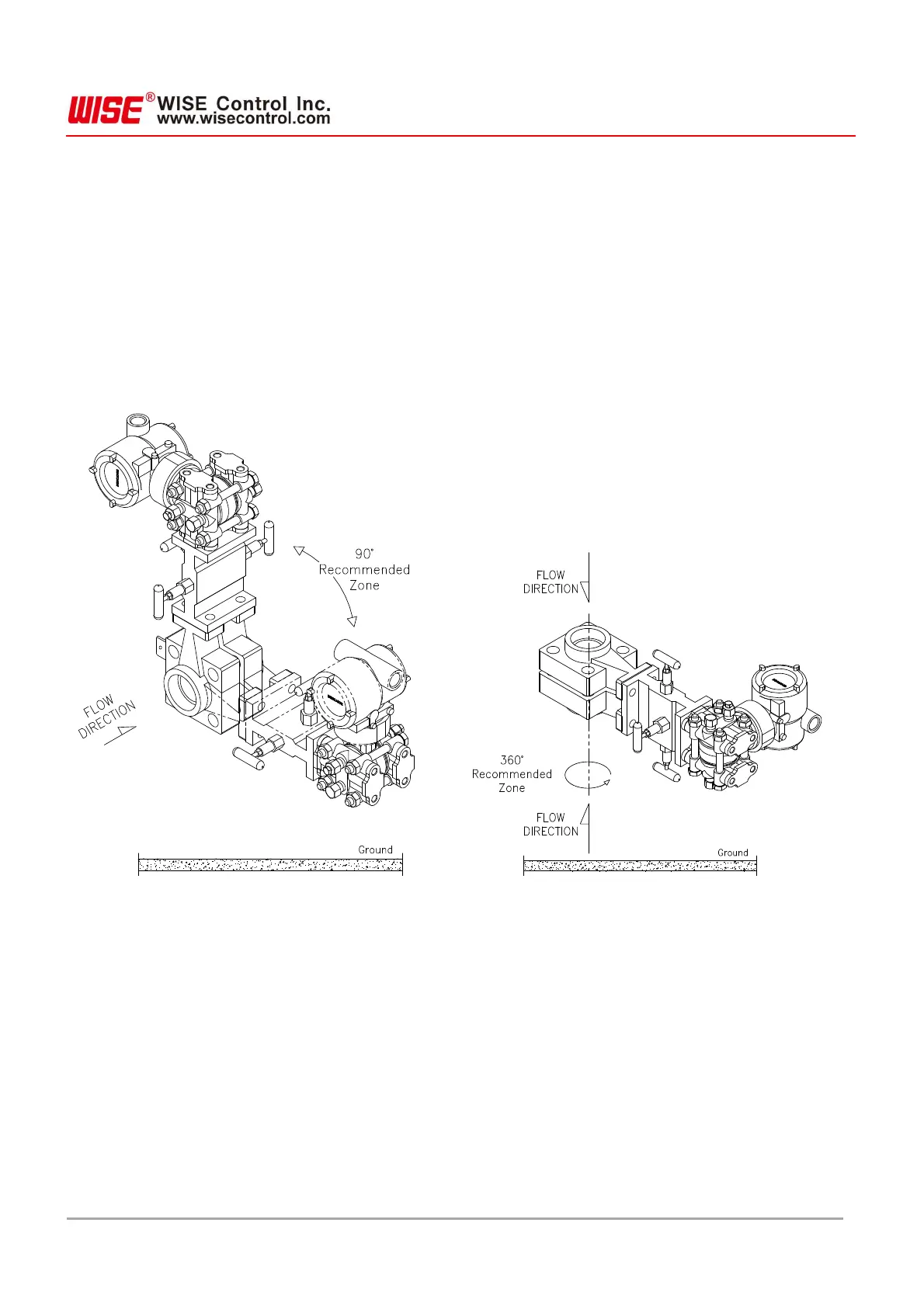

1) Installationongas&vaporlines
● Installationinhorizontalpipes ● Installationinverticalpipes 


