Wise F510 User Manual

8
Tel +82-2-300-2300
Fax +82-2-300-2400
webmaster@wisecontrol.com
C-QIM-2731-F02_EN_Rev.1
4-4.Option
1) Transmitter 
- Model:SMT2001
- Refertothehomepageforthe 
SMT2001manual. 
(www.wisecontrol.com)
2) Extendedlegset
- Appliedatoveroper.temp.120℃.
- Refertotheright<Figure2>.  

4-5.Inspection
1) Checktheinstallationlocationoftheintegralorificeplate,andthedirectionofflow.
2) Checkthattheinnersurfaceofthepipeissmoothandcleaned.
3) Confirmthattheconnectionflangeformsaconcentriccirclewiththeinsideofthepipeline,and
thatthepressuretappointshavebeenalignedinaccordancewiththedrawings.
4) Allweldbeadsmustbeuniform.Ensurethatprojectionsintotheinsideofthepipearekepttoa
minimum. 
5) Ensurethatthetapsandrelatedpipesarecleanpriortouse.Inspectthetapholesandrelated
pipesforweldsandotherobstructions.Removeobstructionsasnecessary.


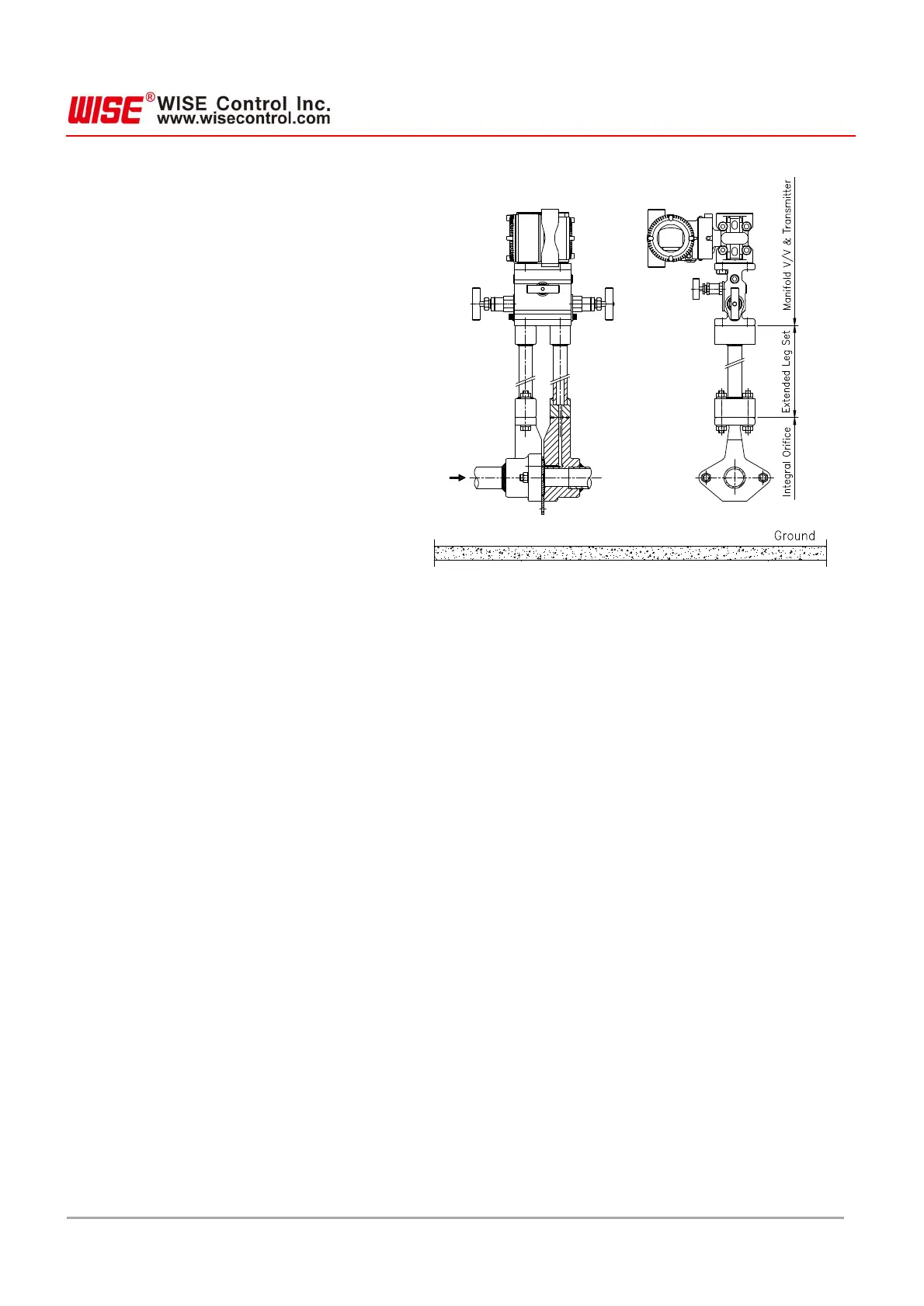

<Figure 2>
