Wise P953 - Operating Principle

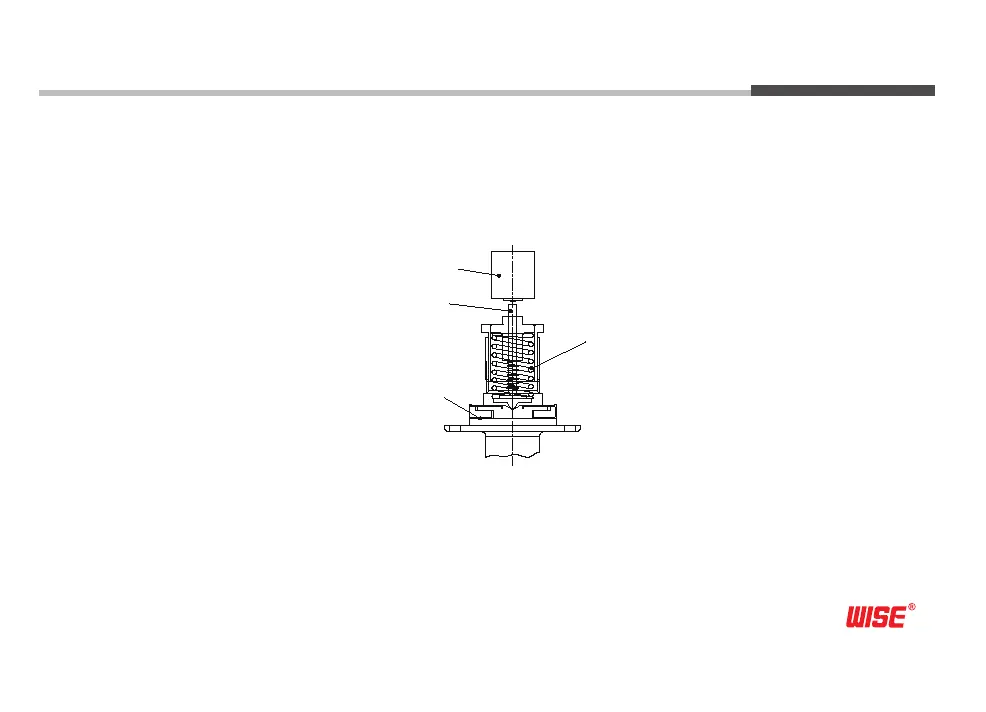

As seen in the drawing, we used a diaphragm for the pressure measuring element and designed the system so that the diaphragm displacement
according to the pressure change can be transmitted to the lever through the rod to open or close the micro switch.
8. Operating Principle
13
M
ICRO SWITCH
ROD
DIAPHRAGM
SPRING
