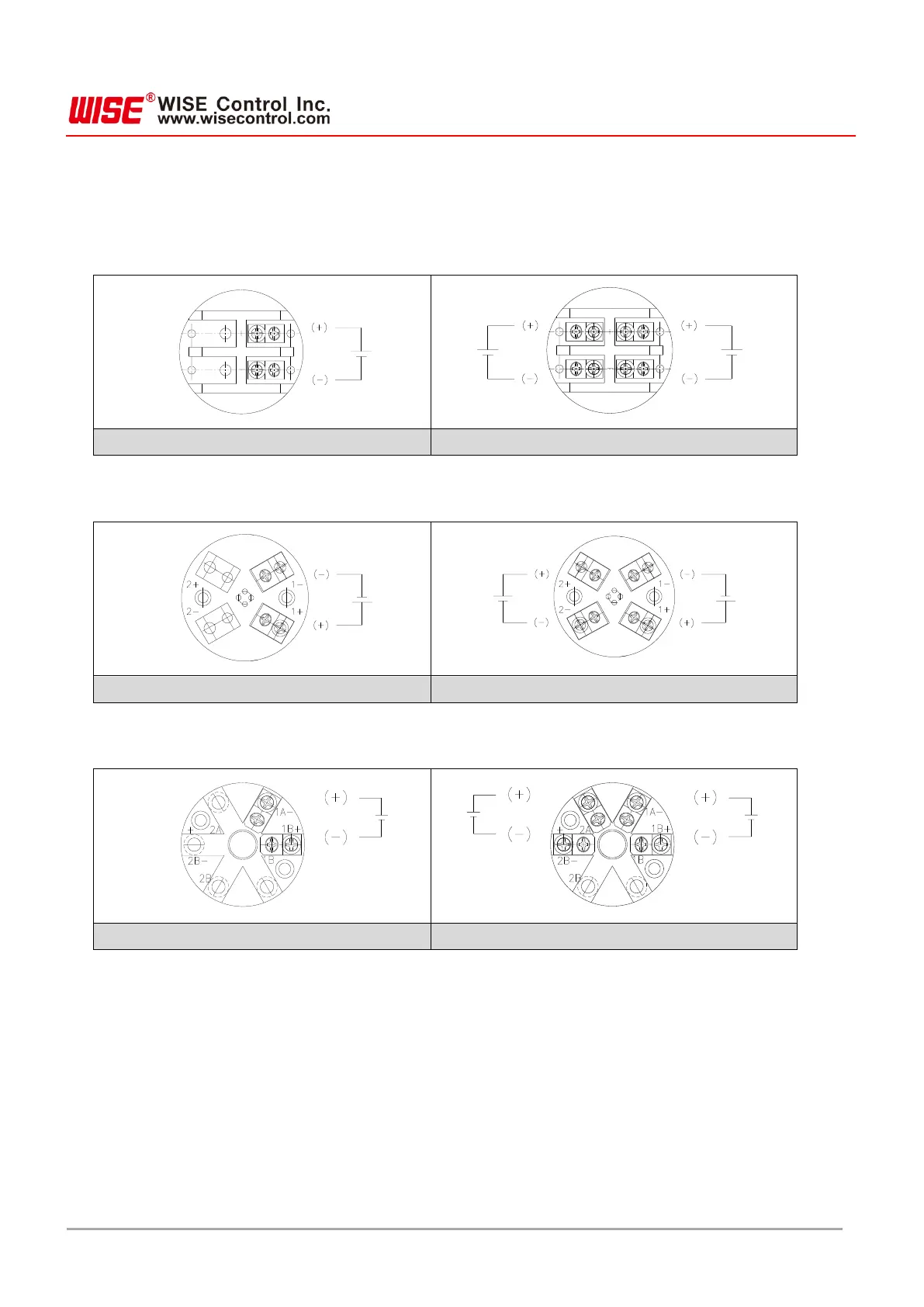

6.3 Terminal block wiring
6.3.1 Thermocouple (TC)
1) Explosion proof type
2) General type
3) Compact type
Single (2-Wire)
Double (4-Wire)
Single (2-Wire)
Double (4-Wire)
Single (2-Wire)
Double (4-Wire)
