WisyCom MTP60 - MTP60 Product Overview

SEL
EXIT
GAIN
CH
REC
ON
OFF
MENU
SEL
EXIT
GAIN
CH
REC
ON
OFF
MENU

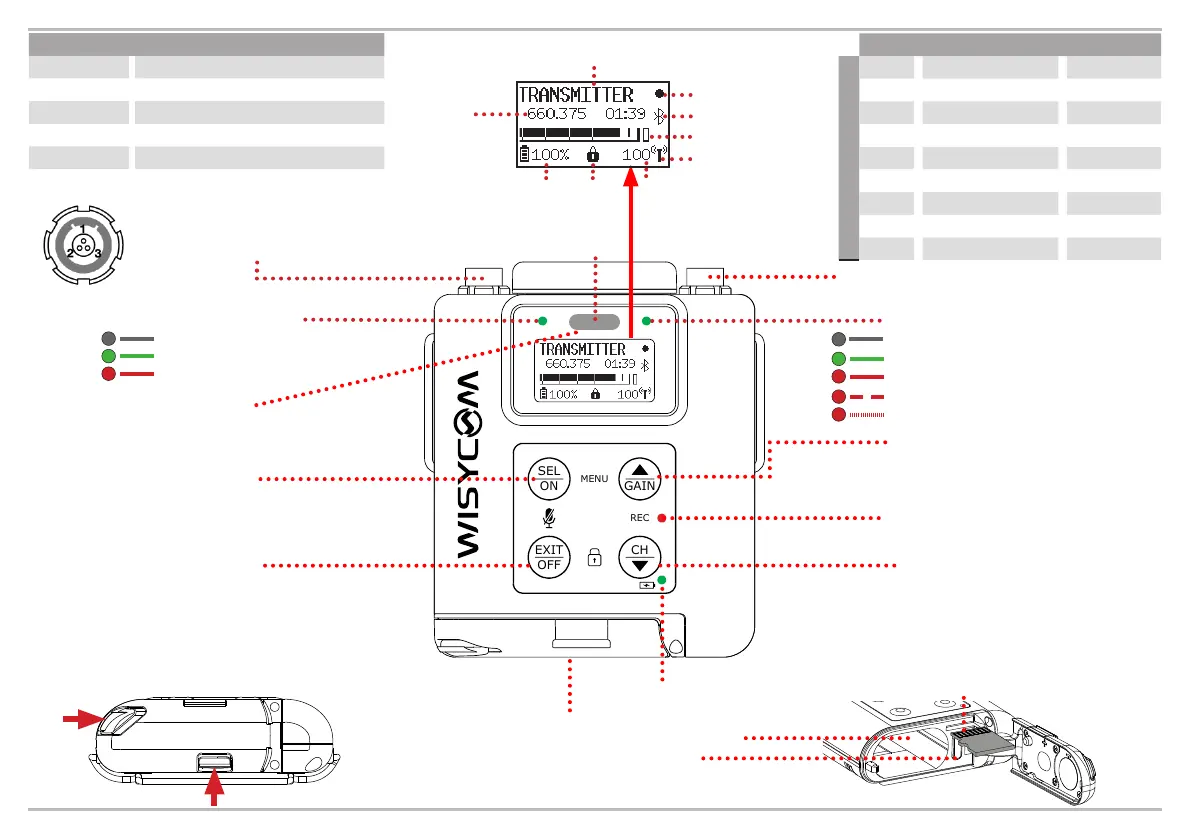

IR Port
Quickly IR sync with legacy receivers.
Activate by going to IRDA screen
Antenna Connector (*) Type Lemo
SEL / ON
Push to switch ON the device. Push together with
GAIN/UP to enter the main MENU. When in menu
single push to save and conrm selections.
SD Card slot
Micro SD card for internal recording.
Quickly enter recording menu by pressing GAIN+CH
EXIT / OFF
Log press to switch the unit OFF.
Short press to step back into menu
Press together with SEL/ON to mute/unmute the
audio
Ch Shortcut/Down
Short press to access channel/group/frequency menu
and/or scroll down while into the menu.
Long press it with EXIT/OFF to lock the front panel
Gain Shortcut/Up
Push to quickly access gain setup frequency
menu and/or scroll up while into the menu.
Recording Status Led
Fixed red when recording has started
Charging Led
Battery compartment
Select battery type in the menu to optimise
battery life.
Mic Input
Load a mic PRESET to suit your
wiring or enter the Audio menu
USB-C
To Connect with Wisycom Manager
Audio LED
OFF: Audio is muted
GREEN: Audio is enabled
RED: Audio is peaking
RF/Power LED
OFF: MTP60 is OFF
GREEN: Transmission is ON
RED: Transmission is OFF
RED SLOW BLINK: battery < 25%
RED FAST BLINK: battery < 12%
Press together to open
Transmitter name
Frequency
Group
Channel
Audio bar
Tx PWR status
Battery
status
IRDA port
Locked
icon
RF level
in mW
Bluetooth Icon
Recording Icon
Label Code Band MHz
Antenna type (*)
507
AWF30-B1-507
470-547
590
AWF30-B1-590
547-663
552
AWF30-B3-552
510-595
646
AWF30-B3-646
595-698
710
AWF30-710
663-760
796
AWF30S-796
760-832
808
AWF30-BP-808
806-810
950
AWF30-B8-950
940-960
1K1
AWF30-B6-1K1
960-1160
Mic Mode Pinout
2 W 1 = GND / 3 = AF
2 W+B 1 = GND / 3 = AF+5,5 V
3 W 1 = GND / 2 = 5,5 V / 3 = AF
2 W & P 1 = GND / 2 = 3,1 V Ph / 3 = AF
2 W+B & P 1 = GND / 2 = 3,1 V Ph / 3 = AF + 5,5 V
INSTRUMENT 1 = GND / 3 = AF (High impedance)
