Pd sniffing (pd listening pd packet capture):
Ok key:
Short press: enter the
original data interface
and press and hold: exit
the listening mode

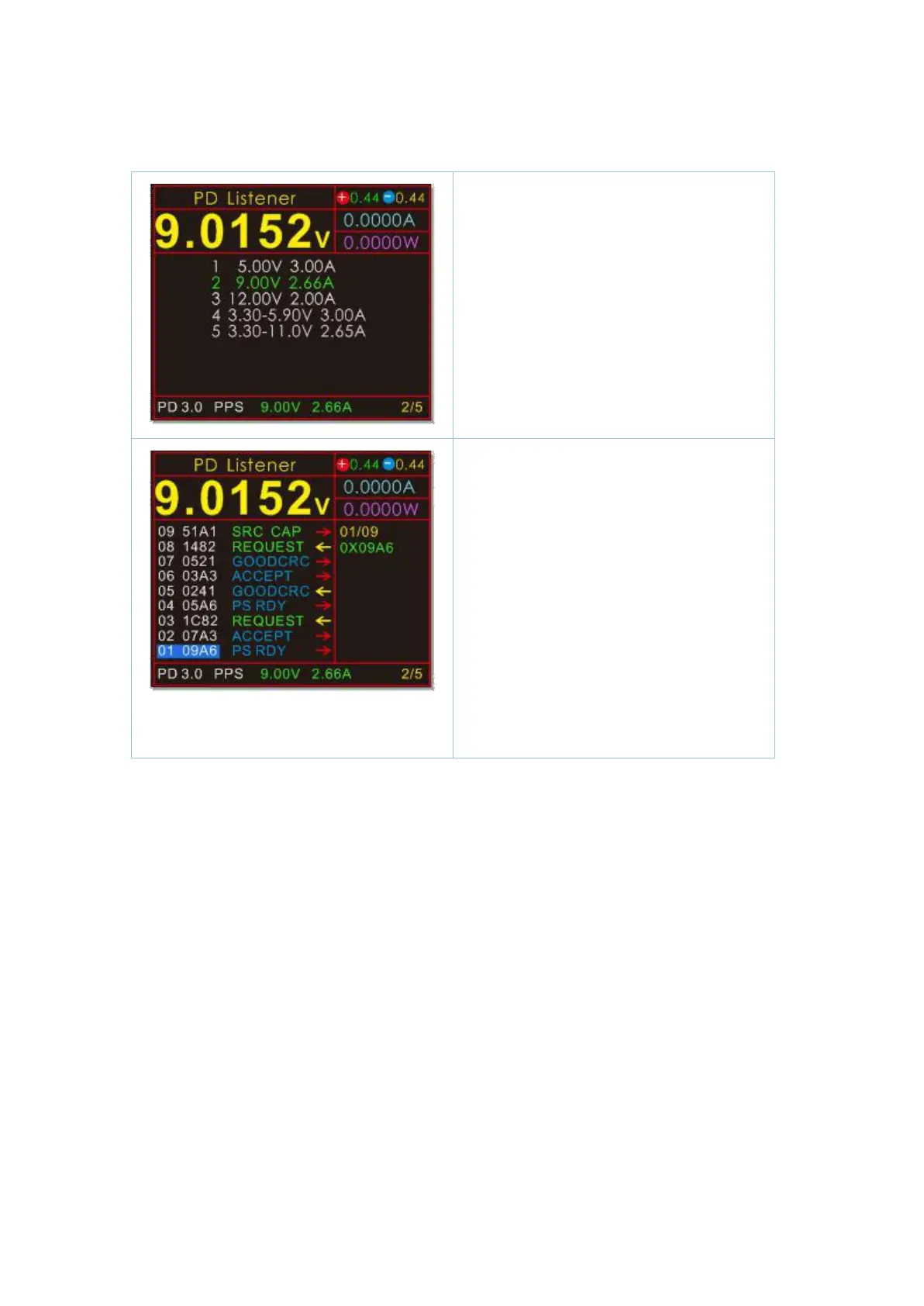

Raw data interface:
Ok key:
Short press: select packet +
Long press: return voltage
output broadcast package
(drop out)
m key:
Short press:
select the packet
long press:
select fast
forward
Blue indicates: control information Green indicates: data
information
The arrow indicates the direction of the data:
Red arrow: the host sends a message Yellow arrow: Upload
message from slave
01 09a6 psdry:01 indicates the information serial
number, and 09a6 indicates the specific data
behind the information header (the following data
can be empty)
Box 01/09 on the right
01: Indicates which packet is currently selected.
09: indicates the total number of pd packets in the buffer.
