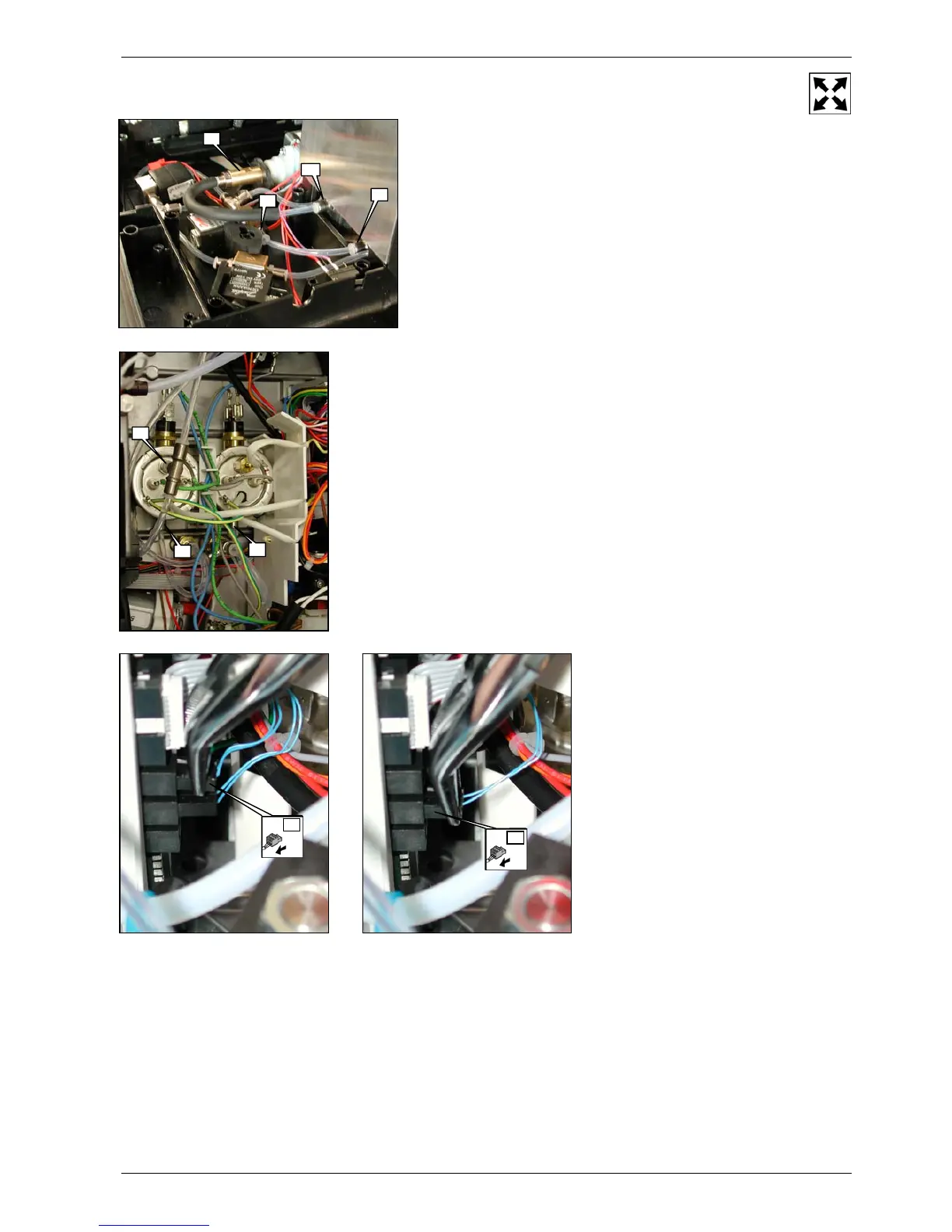

5.3 Removing the hot water boiler / steam boiler
1a Hot water boiler
Disconnect the formed hose from the
Legris nipple (a) and drain the water
from the hose into a container. Then,
disconnect the formed hose from the
Legris nipple (b).
1b Steam boiler
Disconnect the formed hose from the
Legris nipple (c) and drain the water
from the hose into a container. Then,
disconnect the formed hose from the
Legris nipple (d).
2a Hot water boiler
Then, disconnect the formed hose
from the Legris nipples (e) and (f).
2b Steam boiler
Disconnect the formed hose from the
Legris nipple (g).
3a Hot water boiler
Using bent nose pliers, carefully dis-
connect the electrical plug connector
(h) of the HWB temperature sensor
from the PC board.
3b Steam boiler
Using bent nose pliers, carefully dis-
connect the electrical plug connector
(i) of the SB temperature sensor from
the PC board.
Fig. 5-002
b
a
c
d
Fig. 5-003
f
e
g
h
Fig. 5-004
i
Fig. 5-005
