Installation manual for BMK control module
- wall mounting
GB

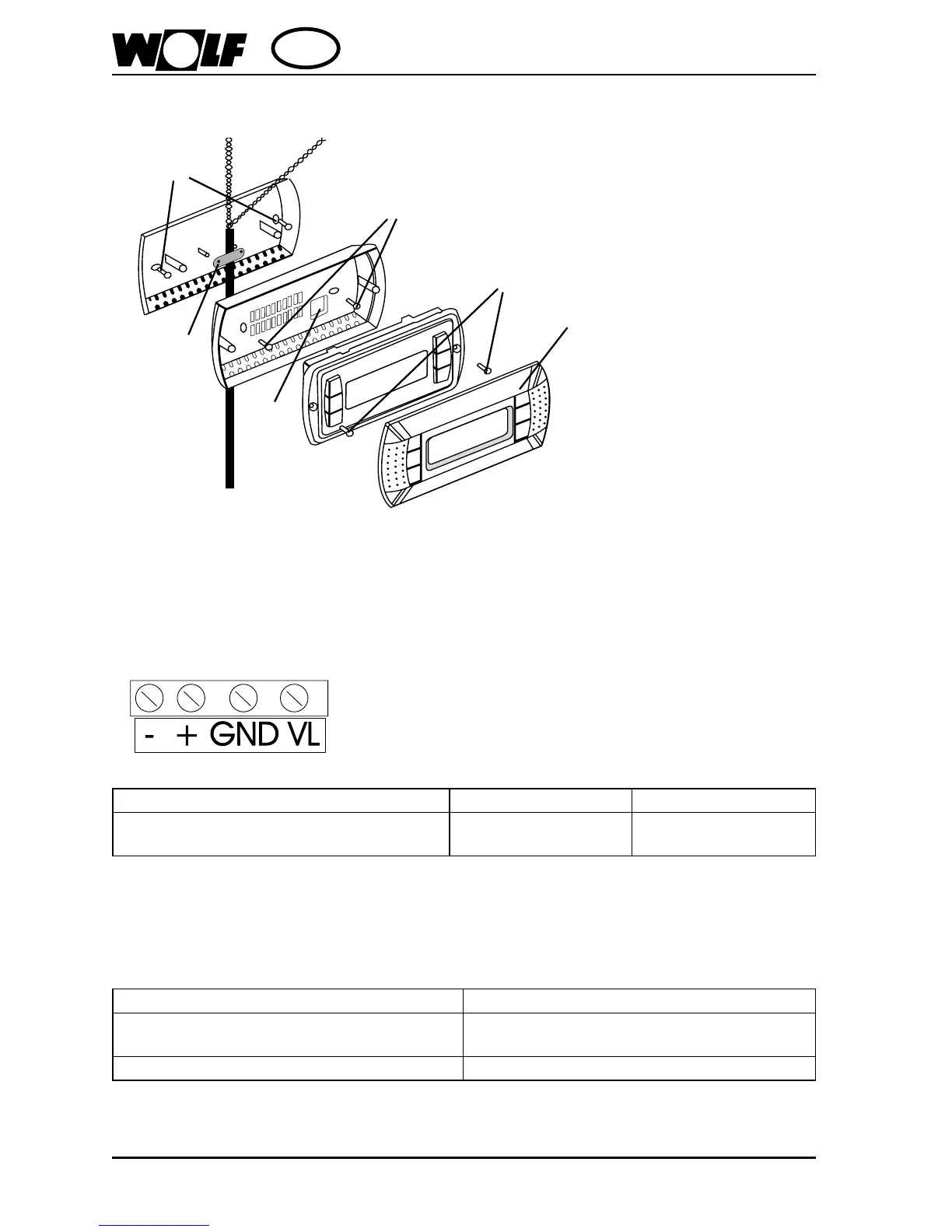

The procedure for the wall mounting of the control module is as follows:
(A)
(B)
(C)
(D)
(E)
(F)
1. Mount the wall base on the wall using the screws (A)
2. Install the cables and fasten with the cord grip (B) provided
3. Feed the ends of the cables through the opening (C) in the rear panel of the control module
4. Fasten the rear panel to the wall base using the screws (D)
5. Connect the cables as follows:
VL / GND + -
Supply voltage via KLM controller
(see circuit diagram)
Data bus (pLAN)
Tx+/Rx+
Data bus (pLAN)
Tx-/Rx-
6. Fasten the control unit to the rear panel using the screws (E)
7. Mount the cover plate (F) (latches)
Technical data
Degree of protection IP 40
Operating conditions -20 - 60 °C;
90 % RH non-condensing
maximum power consumption 0,8 W
