Installation instructions DHW cylinders TSW-120/CSW-120
3048420_0707
14

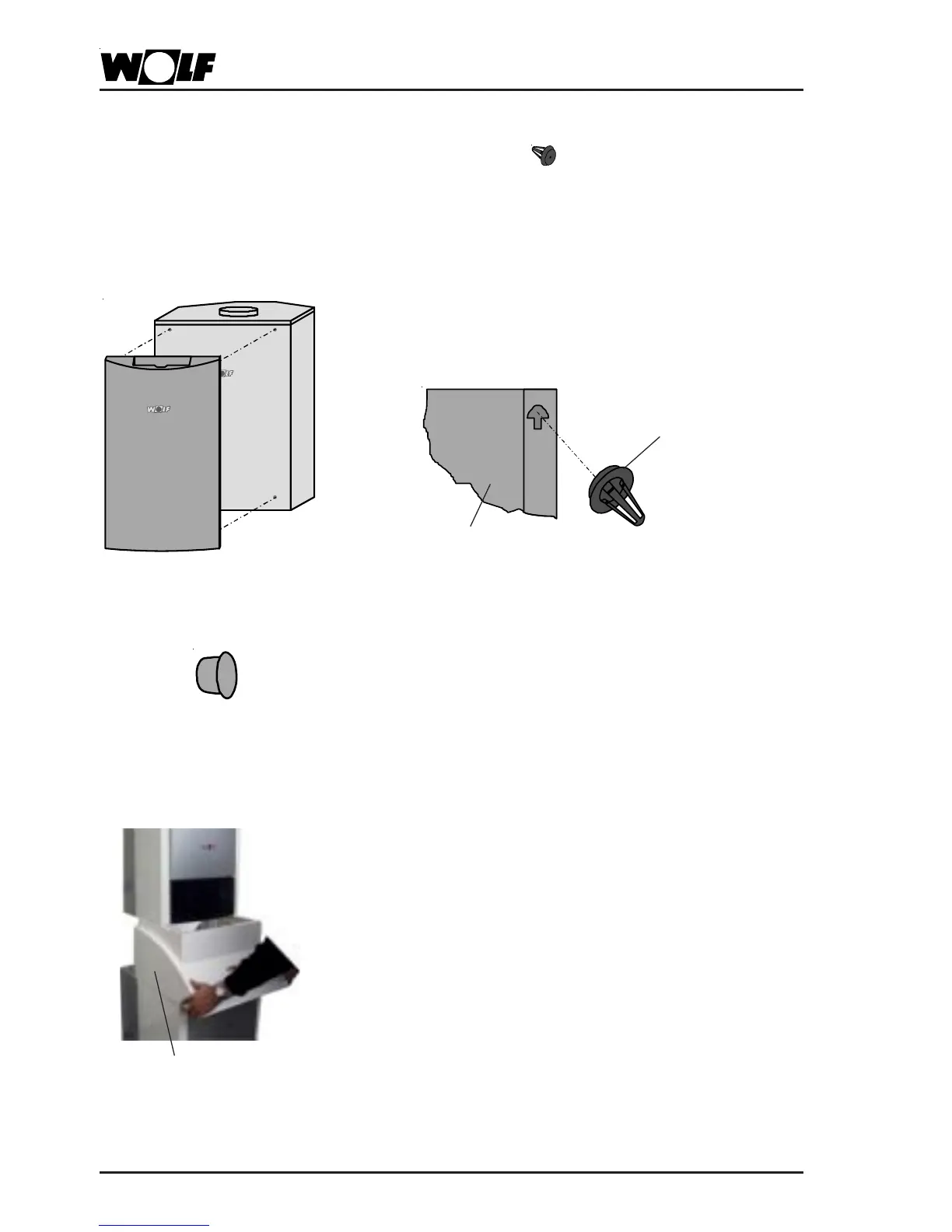

Final assembly
After the installation, locate the pipe cover (accesory) on the DHW
cylinder ...SW-120 and push back.
Pipe cover
Pipe cover
White plastic plugs
On CSW-120 use the white plastic plugs supplied to close the four
holes in the front panel and the three holes in each of the l.h./r.h.
rear side panels. Please note: Two white plastic plugs are surplus
and should be retained as spare parts.
On TSW-120 use the white plastic plugs supplied to close the three
holes in each of the l.h./r.h. rear side panels.
Black plastic clip
Decorative panel
Decorative panel
TSW-120
For TSW-120 the following final steps must be completed:
Press the black plastic clips (4 pieces) into the corners of the
decorative panel. Clip the decorative panel with the pre-assembled
plastic clips into the fixing holes of the DHW cylinder front panel.
Please note: Six black plastic clips are surplus and should be retained
as spare parts.
