Installation instructions DHW cylinders TSW-120/CSW-120
3048420_0707
6
i

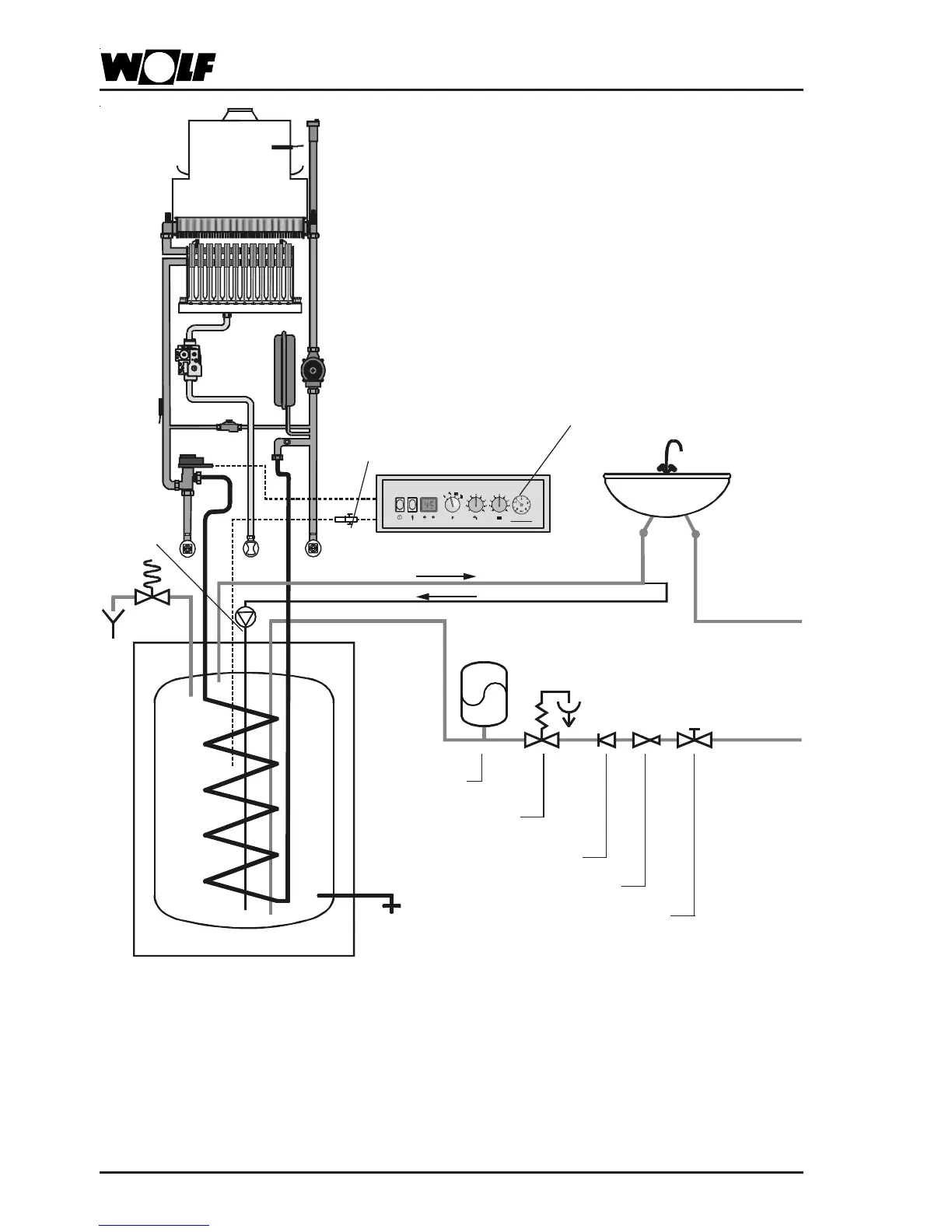

Layout
Gas-fired boiler control unit
Domestic hot water
DHW circulation
DHW
circulation
pump
DHW cylinder sensor
connection (blue plug)
Expansion vessel
Expansion valve with
discharge outlet to tundish
Check valve
Stop valve
Pressure reducing valve
Drain
Cold water to
DHW
cylinder
Cold water
supply according
to British
Standards
Please note:
The layout is provided to provide a general overview, not a piping
prescription.
