Installation Requirements
IMPORTANT NOTE: When installing against a combustible
surface, a minimum 10"
(254) riser is required for a 36" (914)
dual fuel range with charbroiler or griddle and all 48"
(1219)
and 60"
(1524) models.
SPECIFICATIONS
Electrical
Installation must comply with all applicable electrical codes.
Locate the electrical supply ush with the wall or oor and
within the shaded area shown in the illustration on page 6.
If a power supply cord is being used, the cord must be
designated for use with ranges and rated for 240 V, 30 or
50 amps (refer to the chart below), and must include 3 or 4
conductors. A 4-conductor cord is required for installations
where grounding through the neutral is prohibited.
Performance may be compromised if the electrical supply is
less than 240 volts.
ELECTRICAL REQUIREMENTS
SINGLE OVEN RANGE
Electrical Supply grounded, 240/208 V AC, 60 Hz
Service 30 amp dedicated circuit
Total Amps 21
Max Connected Load 5.2 kW
Min Supply Wire L1, L2, ground—12 AWG
neutral—16 AWG
DOUBLE OVEN RANGE
Electrical Supply grounded, 240/208 V AC, 60 Hz
Service 50 amp dedicated circuit
Total Amps 42.5
Max Connected Load 10.2 kW
Min Supply Wire L1, L2—8 AWG, ground—10 AWG
neutral—12 AWG

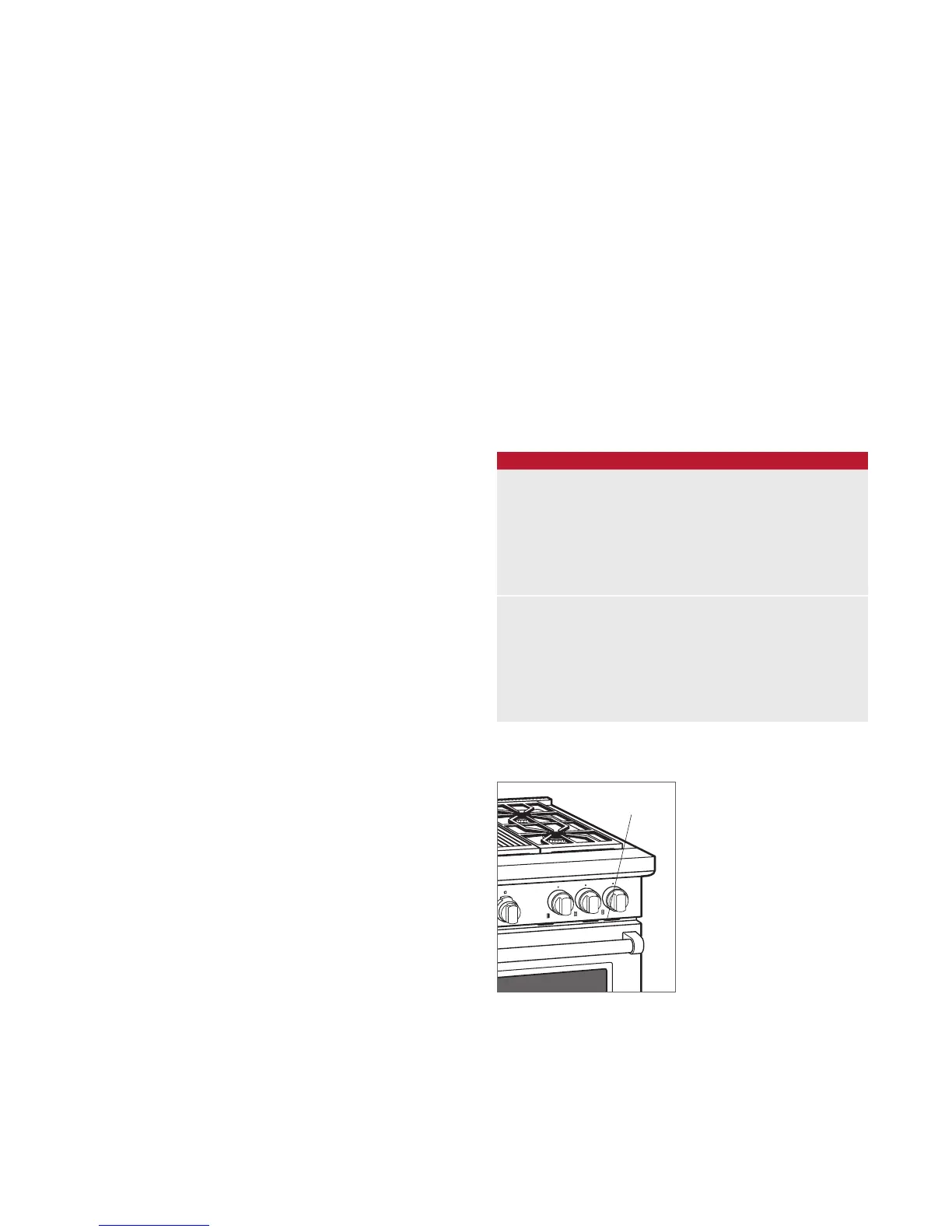

Rating plate location.
RATING PLATE
