6
WOLF GRILL MODULE
MULTIPLE COOKTOP INSTALLATION
IMPORTANT NOTE:
If the grill module is to be
used with a combination of additional cooktop
u
nits or modules with a filler strip, the cut-out
width is calculated by adding the correspon-
ding units' cut-out dimensions plus 1
1
/4" (32)
f
or each additional unit.
W
hen multiple units are installed side by side,
each unit must have its own separate recom-
mended electrical circuit.
When two or more modules are installed
together, an integrated module filler strip
(IFILLER/S) is recommended.
2
1
/2"min
(64)
FRONT OF COUNTERTOP
19
1
/4"
(489)
CUT-OUT
DEPTH
29
1
/4" (743)
TWO MODULES WIDTH
44
1
/2" (1130) THREE MODULES WIDTH OR
44
1
/4" (1124) 30" COOKTOP AND ONE MODULE
59
3
/4" (1518) FOUR MODULES WIDTH OR
59
1
/2" (1511) 30" COOKTOP AND TWO MODULES OR
50
1
/4" (1276) 36" COOKTOP AND ONE MODULE
14"
(356)
CUT-OUT
WIDTH

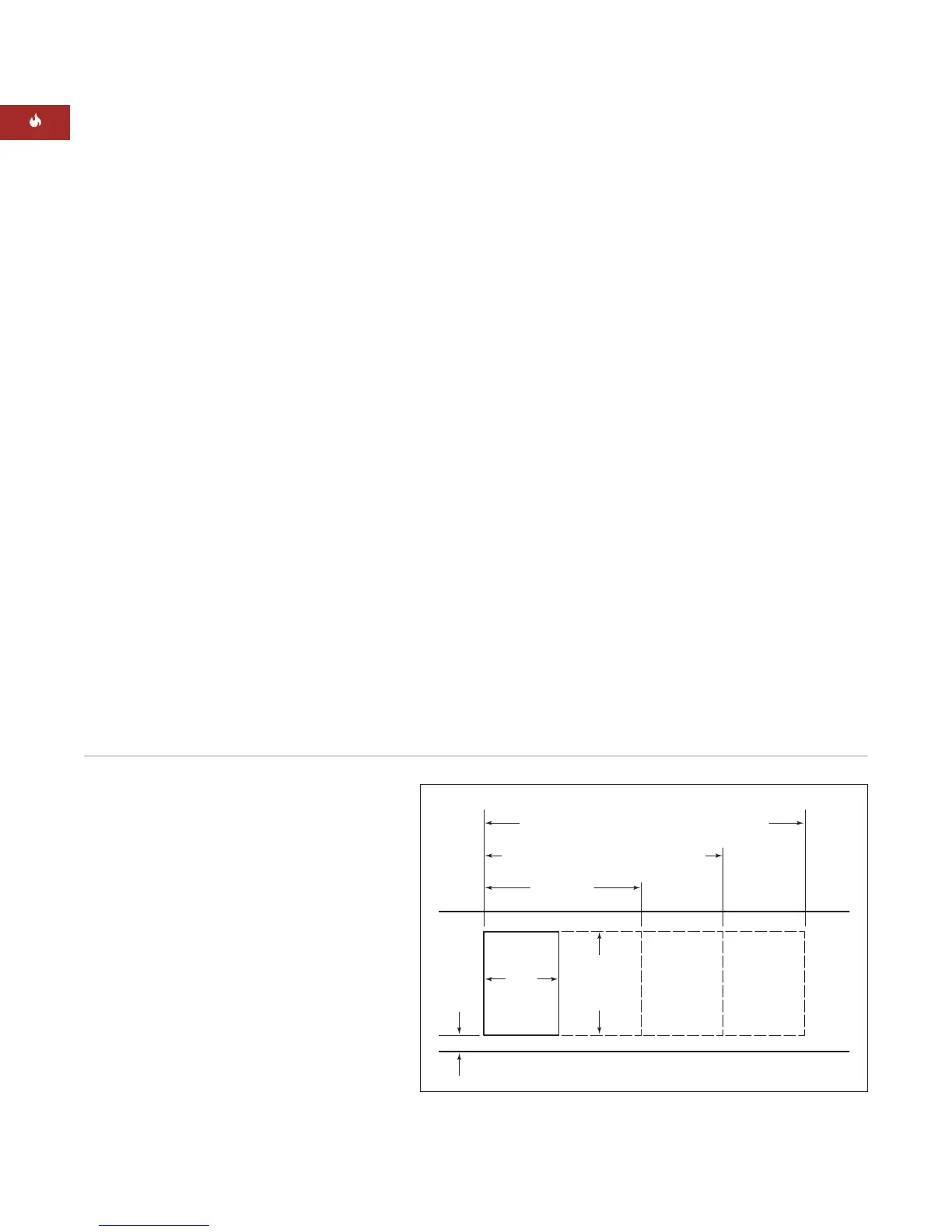

Countertop cut-out dimensions for installation of multiple cooktops
IMPORTANT NOTE:
Review specific
installation instructions for product to product
c
apabilities.
