Wolf OG42 - FLUSH INSET INSTALLATION

wolfappliance.com | 83
Cup Warming Drawer

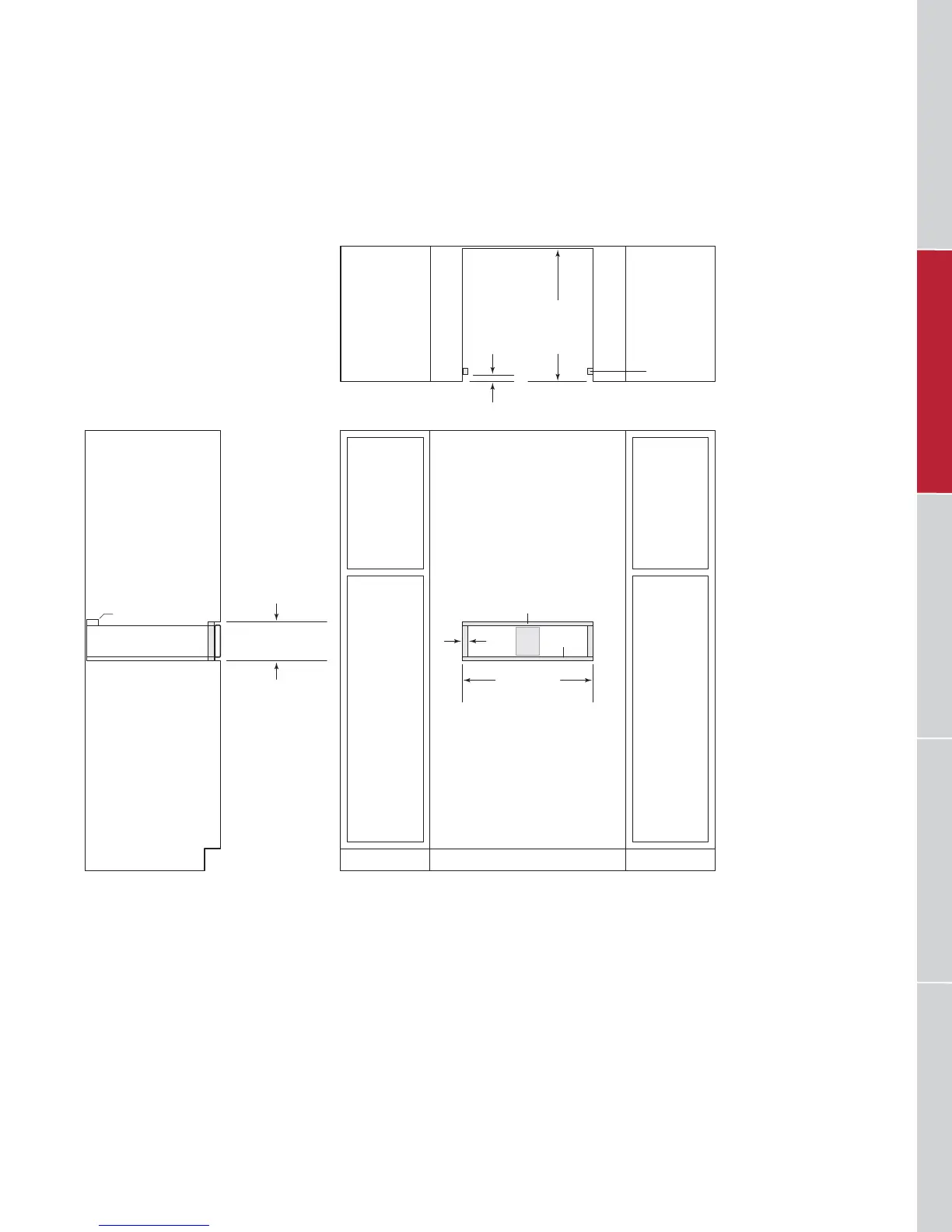

FLUSH INSET INSTALLATION
FRONT VIEWSIDE VIEW
23
1
/2" (597)
FLUSH
INSET
DEPTH
7
/8" (22)
1
/8" (3)
1
/8" (3)
TOP VIEW
5
3
/4" (146)
FLUSH INSET HEIGHT**
13
/16"
(21)
E
23
3
/4" (603)
FLUSH INSET WIDTH**
FINISHED
CLEATS*
*Will be visible and should be finished to match cabinetry.
**Dimension provides minimum reveals.
ANTI-TIP BLOCK
