Wolf Warming Drawers 34
L Series, E Series and Integrated Drawer Front

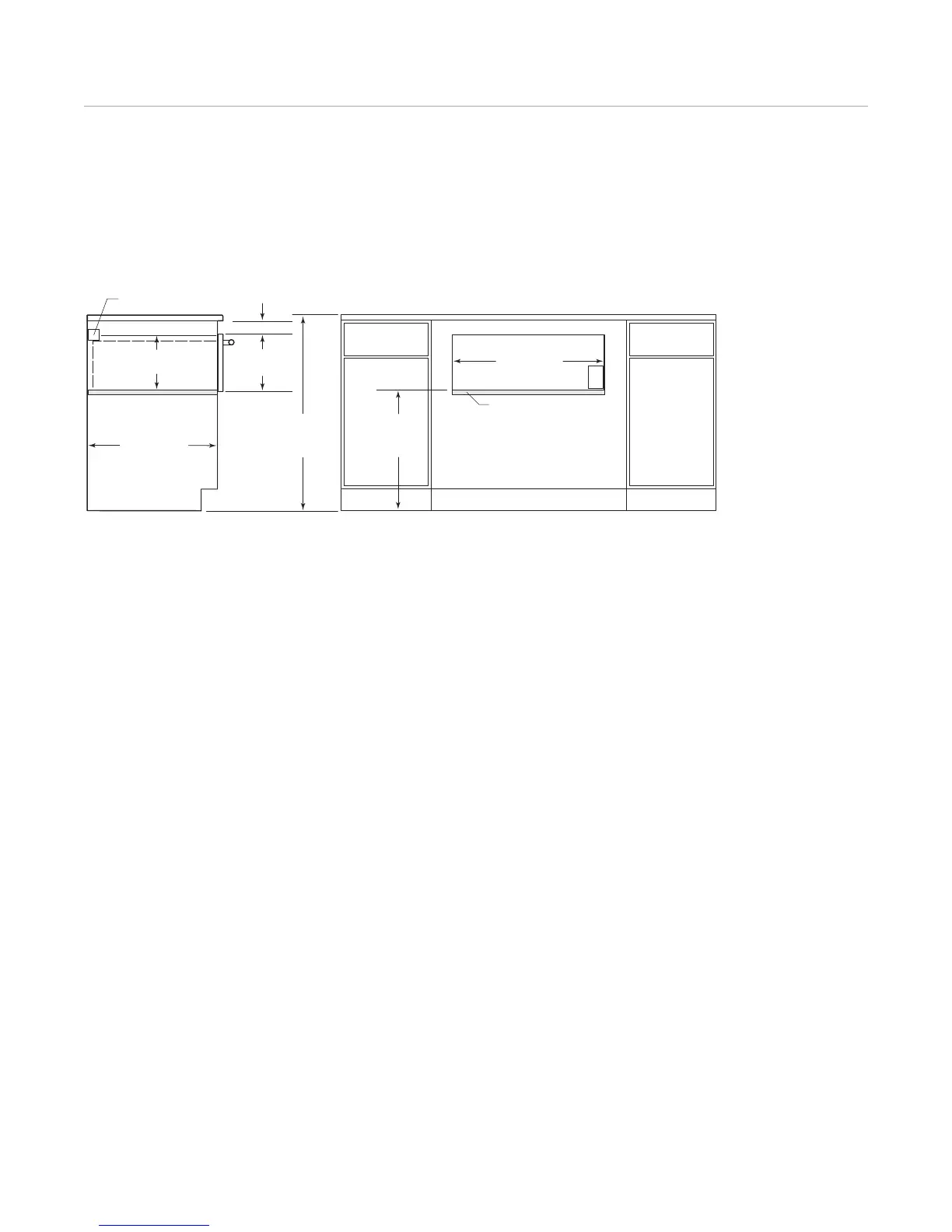

STANDARD INSTALLATION
ANTI-TIP BLOCK
DIMENSION
WILL VARY*
FRONT VIEW
E
24" (610) min
CABINET DEPTH
28
5
/8" (727)
OPENING WIDTH
9
1
/8" (232)
OPENING HEIGHT
10
3
/8"
(264)
23
1
/2"
(597)
TYPICAL
36" (914)
FLOOR TO
COUNTERTOP
BASE SUPPORT
SIDE VIEW
*Dimension must accommodate height of anti-tip block and drawer face overlap.
NOTES: Location of electrical supply within opening may require additional cabinet depth.
Dashed line represents profile of unit.
