Wolf SO30F/S - Page 51

Wolf Gas Cooktops 51
wolfappliance.com/specs
18" (457) min
36" (914)
FLOOR TO
COUNTERTOP
30" (762) min
COUNTERTOP
TO COMBUSTIBLE
MATERIALS
4"
(
102
)
10" (254)
3
1
/2" (89)
E
SEE COUNTERTOP
CUT-OUT BELOW
9" (229) TO
COMBUSTIBLE*
9" (229) TO
COMBUSTIBLE*
SIDE
CABINET
13" (330)
max
29" (737)
CUT-OUT WIDTH
COUNTERTOP CUT-OUT
FRONT
19
1
/4" (489)
CUT-OUT
DEPTH
2
1
/2" (64) min
G
2
1
/2" (64) min*

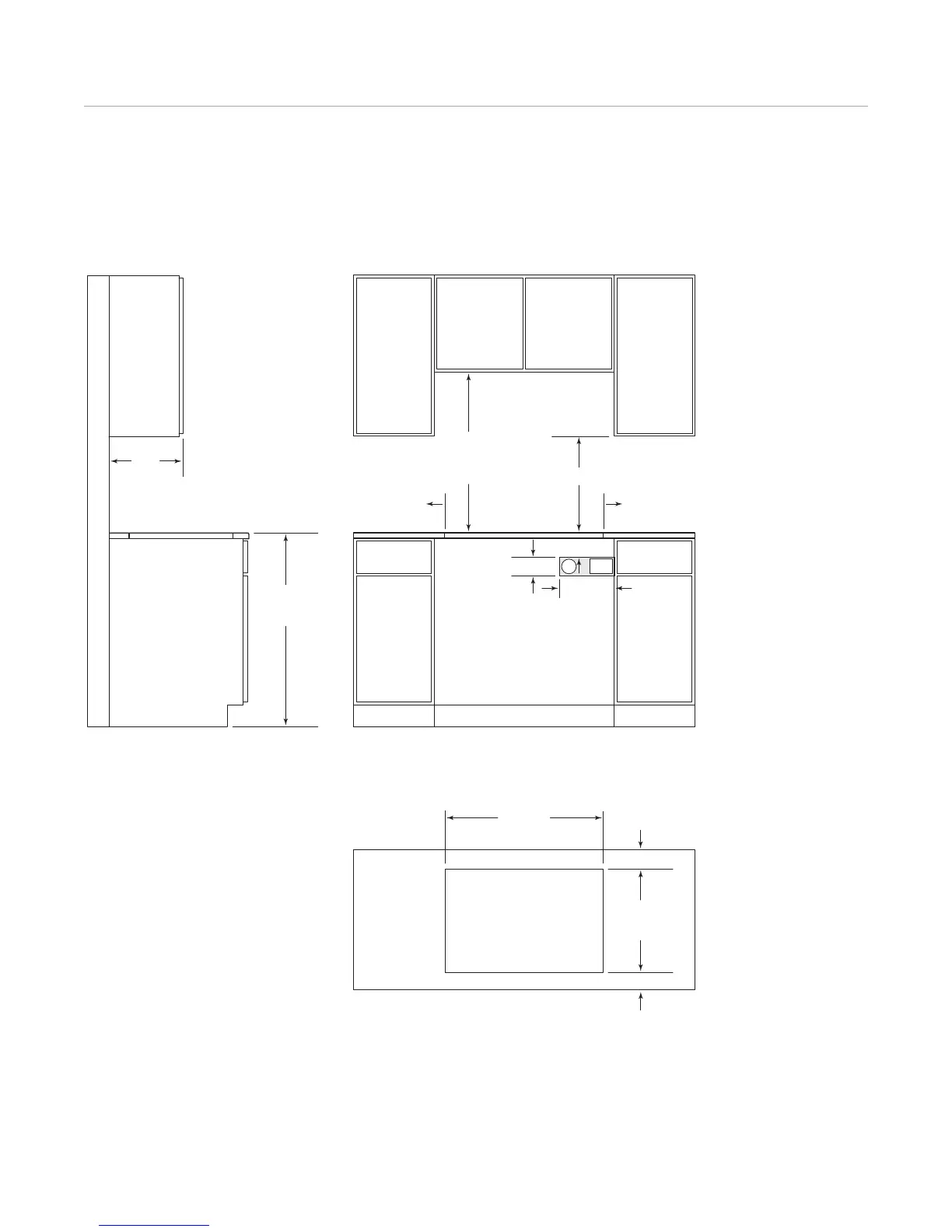

SIDE VIEW FRONT VIEW
*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.
NOTE: Gas and electrical location applies only to installation with built-in oven.
30" (762) Gas Cooktop
STANDARD INSTALLATION
