Wolf TSW-120 - Positioning; Installation Dimensions

Installation instructions DHW cylinders TSW-120/CSW-120
3048420_0707
7

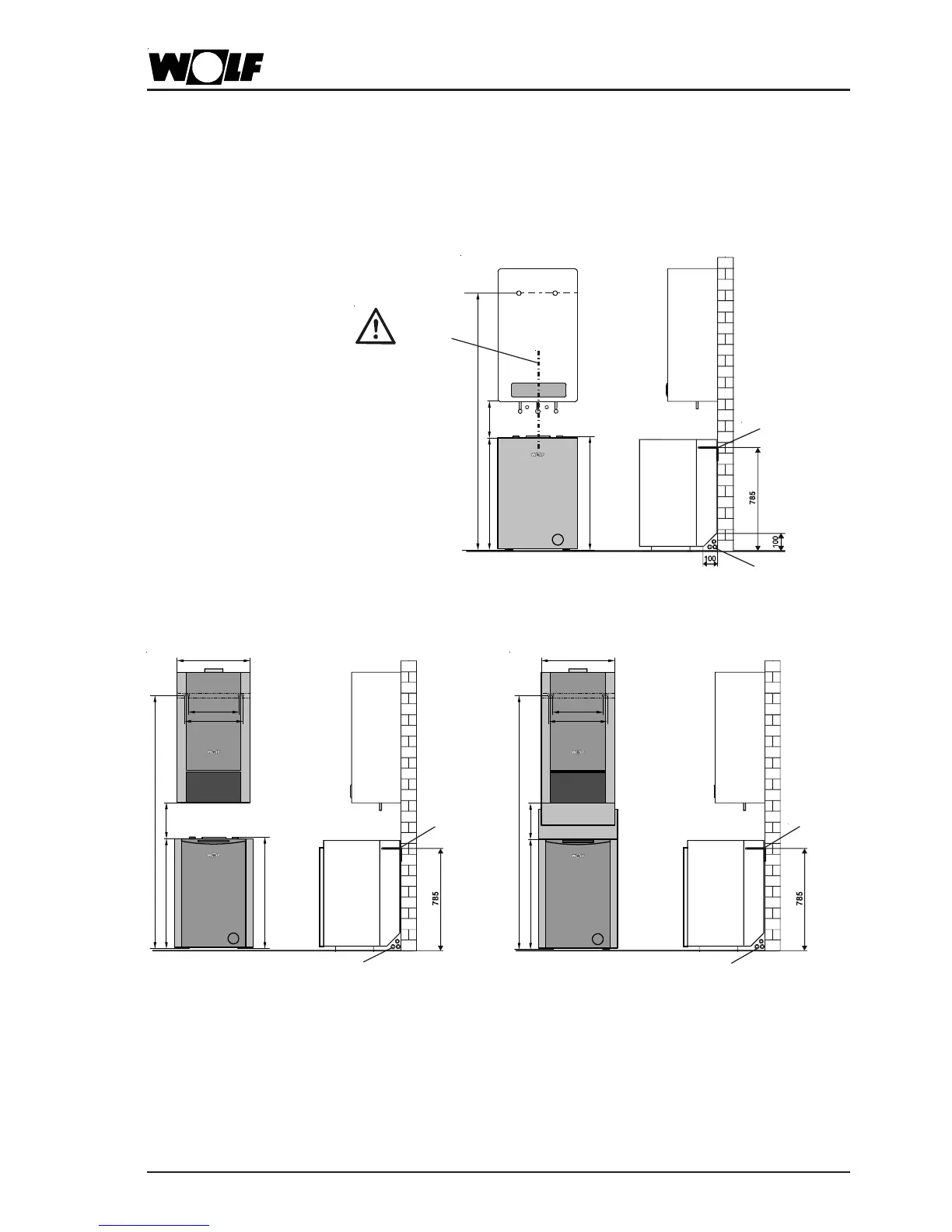

Positioning / Installation dimensions
Installation of wall hung
appliance an hot water
storage tank
notch for
water
pipes
270-420
790
810
1800-1950
CSW
mounting
bracket
centered!
Please note when using
the pipe cover:
The installation dimensions apply to TSW-120 as well as CSW-120.
If you intend installing the DHW cylinder with a pipe cover, check the
fit (dimension 300 mm) with the pipe cover prior to commencing the
pipe installation. The adjustable cylinder feet can compensate a
max. of ±10 mm.
Please note the fixing hole position on the installation template
when using a fixing bracket (accessory).
Install the DHW cylinder only in a frost protected location, otherwise
drain, if there is a risk of frost.
Consider the total weight of a full DHW cylinder when selecting
the installation location.
Adjustable feet allow you to compensate for uneven floors.
The DHW cylinder ...SW-120 may be installed in a top or bottom
cupboard or free-standing.
Positioning
270-420790
480
344
400
810
1800-1950
TSW without covering panel
notch for water pipes
mounting
bracket
780-800 300
480
344
400
1835
±
10
mounting
bracket
notch for water pipes
TSW with covering panel
Install appliance as described in Installation Instructions.
