30" TO 36"
(762 - 914)
TO COOKING
SURFACE
30" TO 36"
(762 - 914)
TO COOKING
SURFACE
18" (457)
HEIGHT
OF HOOD
27"
(686)
DEPTH
OF HOOD
WIDTH OF HOOD
COOKING SURFACE
NOTE: Dimensions in parentheses are in millimeters.
E
6"
(152)
5"
(127)
LOCATION OF
ELECTRICAL

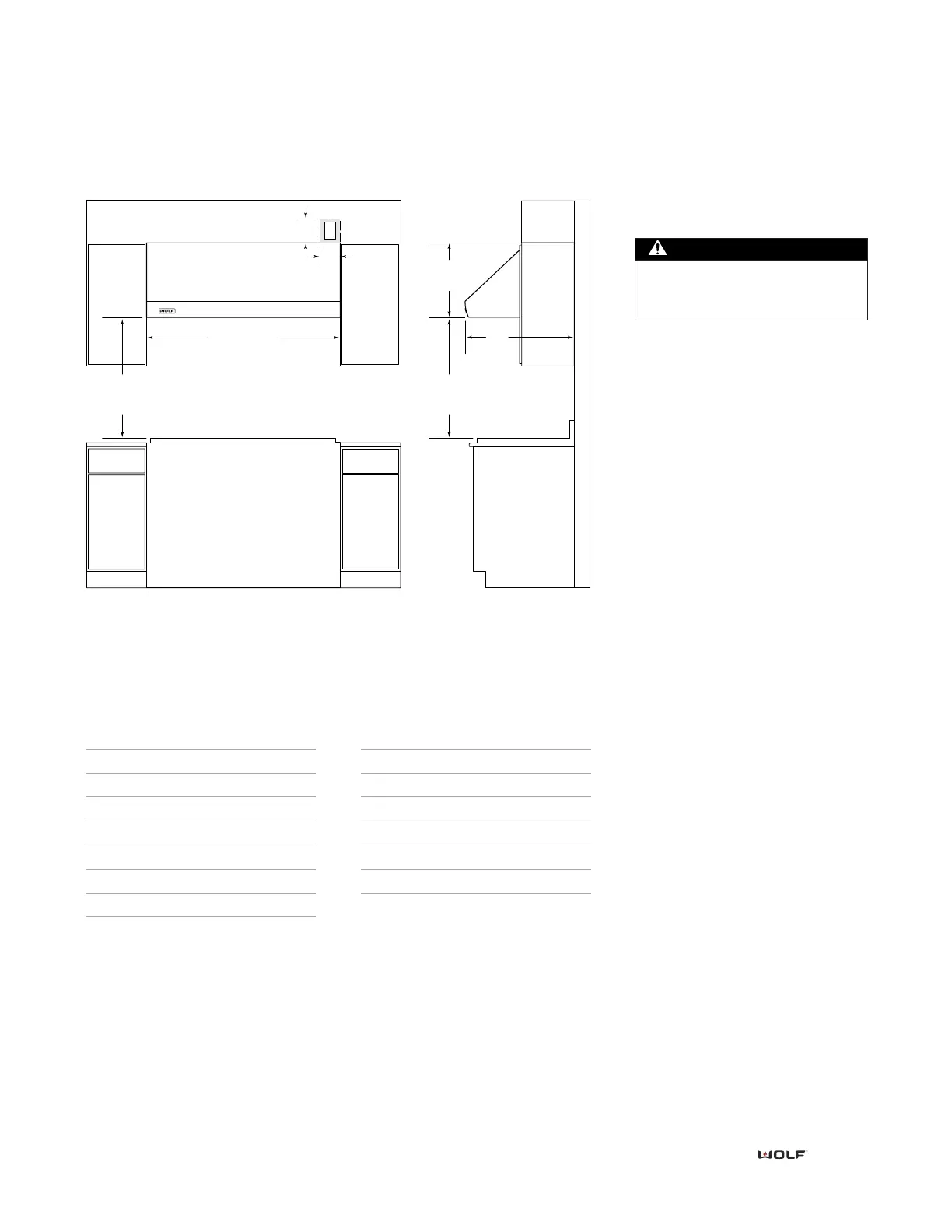

Cabinetry and electrical placement for 27-inch deep Pro Series wall hoods.
Shipping Weights for 27-inch
Deep Wall Hoods
Model Number Shipping Weight
W302718 69 lbs.
W362718 80 lbs.
W422718 88 lbs.
W482718 98 lbs.
W542718 108 lbs.
W602718 118 lbs.
W662718 128 lbs.
Shipping Weights for Blowers
Part Shipping
Blower Number Weight
WBLOWER-90INT 805086 30 lbs.
WBLOWER-120INT 804702 38 lbs.
CTBLOWER-60REM 801640 35 lbs.
CTBLOWER-90REM 801641 35 lbs.
CTBLOWER-120REM 801642 39 lbs.
CTBLOWER-150REM 804701 47 lbs.
11
INSTALLATION
Step 1: Install Ductwork
1) Decide where the ductwork will
run between the hood and the out-
side of the home. Your Wolf 27-inch
deep hood does not have an
adjustable discharge and must
discharge vertically.
IMPORTANT NOTE: All hoods must
exhaust to the outdoors.
2) When not installing a remote
blower, always install a roof or wall
cap. Connect 10" round metal duct-
work to the cap and work back
towards the hood location.
3) Use duct tape to seal the joints
between the ductwork sections
4) Your Wolf wall hood comes stan-
dard with a back-draft damper
included in the transition assembly.
An additional back-draft damper is
not required.
WARNING
To reduce the risk of fire, use
only metal ductwork.
Hardware Contents:
• (10) #10 screws self tapping hex
head 2" long
• (10) 10-24 hex head flanged nuts
