12
Step 2: Wall Preparation
IMPORTANT NOTE: Do not use duct
smaller than 10" round.
IMPORTANT NOTE: Wolf recom-
mends that the hood be installed a
minimum of 30" and a maximum of
36" above the cooking surface.
1) Construct wood wall framing that
is flush with the interior surface of the
wall studs. Make certain that the
framing is centered over the desired
installation location.
2) Use the rough-in plate shipped
with hood to determine framing
location.
3) After wall surface is finished,
secure the rough-in plate to the wall
surface.
NOTE: If additional mounting holes
are required for adequate hood
support, drill additional mounting
holes in rough-in plate and use these
holes to attach hood assembly to wall
framing.
WARNING
Framing must be structurally
tied together and tied to ceiling
joists to provide enough
strength to support the weight
of the hood and the internal
blower, if applicable.
27-INCH D EEP W ALL H OODS
27-inch Deep Wall Hoods:
Width Height of To Center of To Center of
Model Number of Hood (A) Transition (B) Transition (C) Transition (D)
W302718 30" (762) 9
1
/2
" (241) 15" (381) 5
13
/16
" (148)
W362718 36" (914) 9
1
/
2" (241) 18" (457) 5
13
/
16" (148)
W422718 42" (1067) 9
1
/2" (241) 21" (533) 5
13
/16" (148)
W482718 48" (1219) 9
1
/2" (241) 24" (610) 5
13
/16" (148)
W542718 54" (1372) 9
1
/2" (241) 27" (686) 5
13
/16" (148)
W602718 60" (1524) 9
1
/2" (241) 30" (762) 5
13
/16" (148)
W662718 66" (1676) 9
1
/2" (241) 33" (838) 5
13
/16" (148)
NOTE: Dimensions in parentheses are in millimeters.

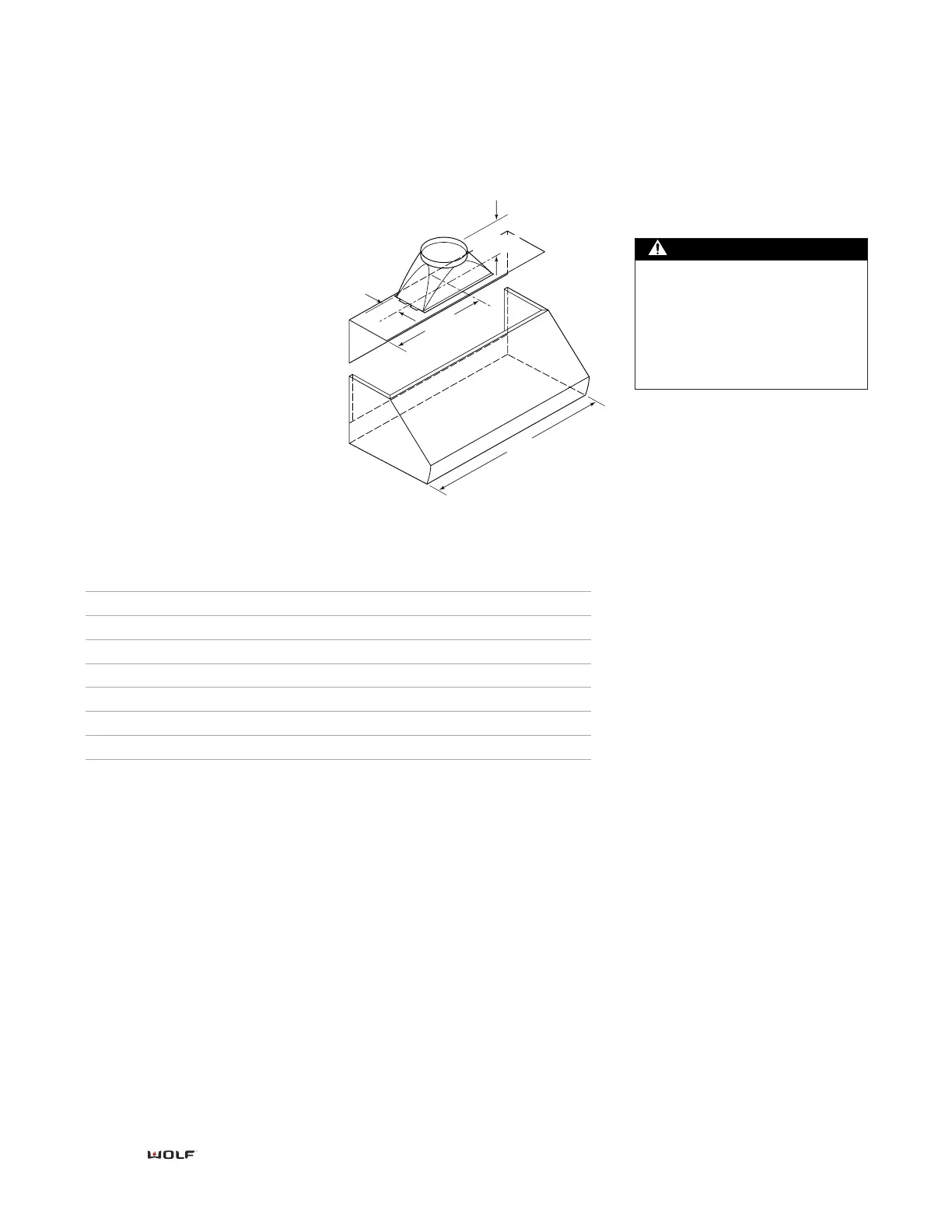

Installation Dimensions
Refer to the following illustration
and chart for critical dimensions
needed for the proper installation
of a 27-inch deep wall hood.
C
L
C
L
C
TO CENTER
OF TRANSITION
D
A
WIDTH
OF HOOD
TO CENTER
OF TRANSITION
B
HEIGHT OF
TRANSITION
