Wolf W482418 - Page 5

30" TO 36"
(762 - 914)
TO COOKING
SURFACE
30" TO 36"
(762 - 914)
TO COOKING
SURFACE
E
10" (254)
18" (457)
HEIGHT
OF HOOD
22" (559)
24" (610)
DEPTH OF HOOD
WIDTH OF HOOD
LOCATION OF
ELECTRICAL FOR
REAR DISCHARGE
COOKING SURFACE
NOTE: Dimensions in parentheses are in millimeters.
6"
(152)
5"
(127)
E
6"
(152)
5"
(127)
LOCATION OF
ELECTRICAL FOR
TOP DISCHARGE

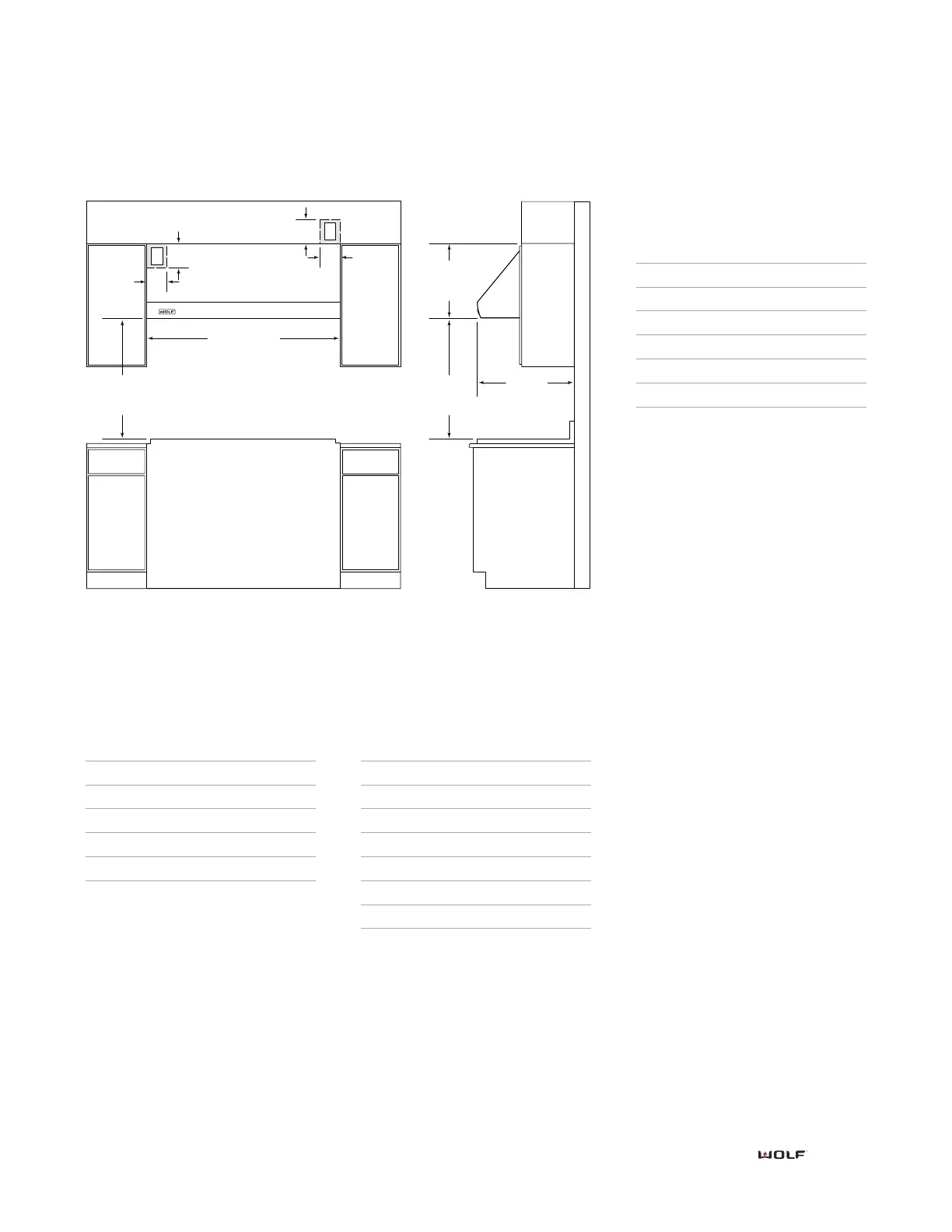

Cabinetry and electrical placement for 22-inch and 24-inch deep Pro Series wall hoods.
5
Shipping Weights for 22-inch
Deep Wall Hoods
Model Number Shipping Weight
W302210I 57 lbs.
W362210I 63 lbs.
W362210 44 lbs.
W422210 50 lbs.
W482210 55 lbs.
Shipping Weights for Blowers
Part Shipping
Blower Number Weight
WBLOWER-90INT 805086 30 lbs.
WBLOWER-120INT 804702 38 lbs.
CTBLOWER-60REM 801640 35 lbs.
CTBLOWER-90REM 801641 35 lbs.
CTBLOWER-120REM 801642 39 lbs.
CTBLOWER-150REM 804701 47 lbs.
Shipping Weights for 24-inch
Deep Wall Hoods
Model Number Shipping Weight
W302418 67 lbs.
W362418 78 lbs.
W422418 86 lbs.
W482418 96 lbs.
W542418 106 lbs.
W602418 116 lbs.
W662418 126 lbs.
Hardware Contents:
• (10) #10 screws self tapping hex
head 2" long
• (10) 10-24 hex head flanged nuts
