Wolf W482418 - Page 6

6
22-INCH AND 24-INCH D EEP W ALL H OODS
22-inch Deep Wall Hoods
Width Height of To Center of To Center of
Model Number of Hood (A) Transition (B) Transition (C) Transition (D)
W302210I 30" (762) 7
1
/2
" (191) 15" (381) 4
11
/16
" (119)
W362210I 36" (914) 7
1
/
2" (191) 18" (457) 4
11
/
16" (119)
W362210 36" (914) 7
1
/2" (191) 18" (457) 4
11
/16" (119)
W422210 42" (1067) 7
1
/2" (191) 21" (533) 4
11
/16" (119)
W482210 48" (1219) 7
1
/2" (191) 24" (610) 4
11
/16" (119)
NOTE: Dimensions in parentheses are in millimeters.
24-inch Deep Wall Hoods
Width Height of To Center of To Center of
Model Number of Hood (A) Transition (B) Transition (C) Transition (D)
W302418 30" (762) 9
1
/2" (241) 15" (381) 5
13
/16" (148)
W362418 36" (914) 9
1
/2" (241) 18" (457) 5
13
/16" (148)
W422418 42" (1067) 9
1
/2" (241) 21" (533) 5
13
/16" (148)
W482418 48" (1219) 9
1
/2" (241) 24" (610) 5
13
/16" (148)
W542418 54" (1372) 9
1
/2" (241) 27" (686) 5
13
/16" (148)
W602418 60" (1524) 9
1
/2" (241) 30" (762) 5
13
/16" (148)
W662418 66" (1676) 9
1
/2" (241) 33" (838) 5
13
/16" (148)
NOTE: Dimensions in parentheses are in millimeters.

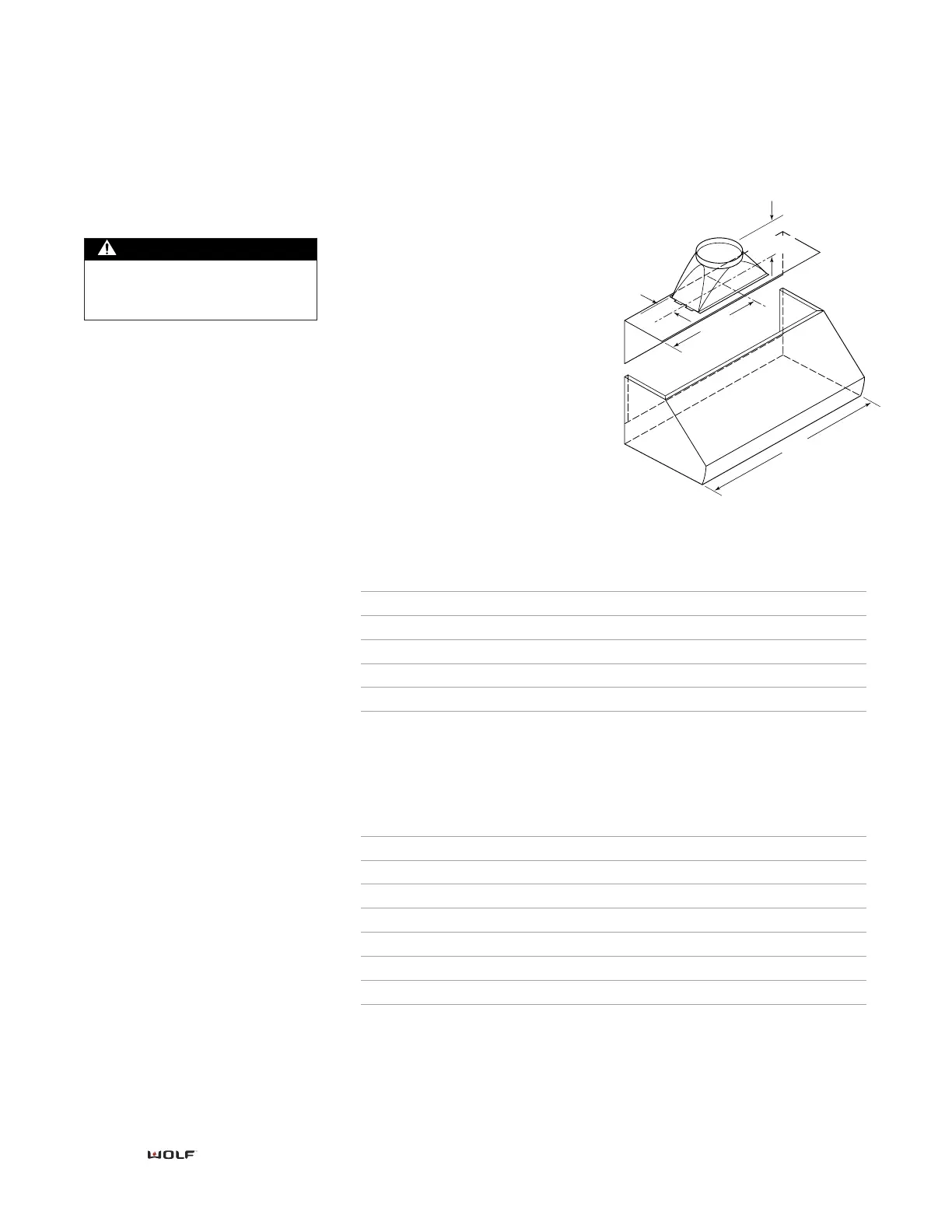

Installation Dimensions
Refer to the following illustration
and charts for critical dimensions
needed for the proper installation
of a 22-inch or 24-inch deep wall
hood.
C
L
C
L
C
TO CENTER
OF TRANSITION
D
A
WIDTH
OF HOOD
TO CENTER
OF TRANSITION
B
HEIGHT OF
TRANSITION
INSTALLATION
Step 1: Install Ductwork
1) Decide where the ductwork will
run between the hood and the
outside of the home. Your Wolf hood
has an adjustable discharge location
which can run vertically or horizon-
tally.
NOTE: Rear discharge is only
applicable on 22-inch wall hoods
(excluding W302210I and W362210I)
and 24-inch wall hoods used with a
WBLOWER-120INT (804702) or any
Wolf remote blower. WBLOWER-
90INT (805086) is not for use in rear
discharge applications.
IMPORTANT NOTE: All hoods must
exhaust to the outdoors.
2) When not installing a remote
blower, always install a roof or wall
cap. Connect 8" (22-inch deep
hoods) or 10" (24-inch deep hoods)
round metal ductwork to the cap and
work back towards the hood location.
3) Use duct tape to seal the joints
between the ductwork sections.
4) Your Wolf wall hood comes stan-
dard with a back-draft damper
included in the transition assembly.
An additional back-draft damper is
not required.
WARNING
To reduce the risk of fire, use
only metal ductwork.
