40 Parts
51861 (Rev. 6/16/2006)

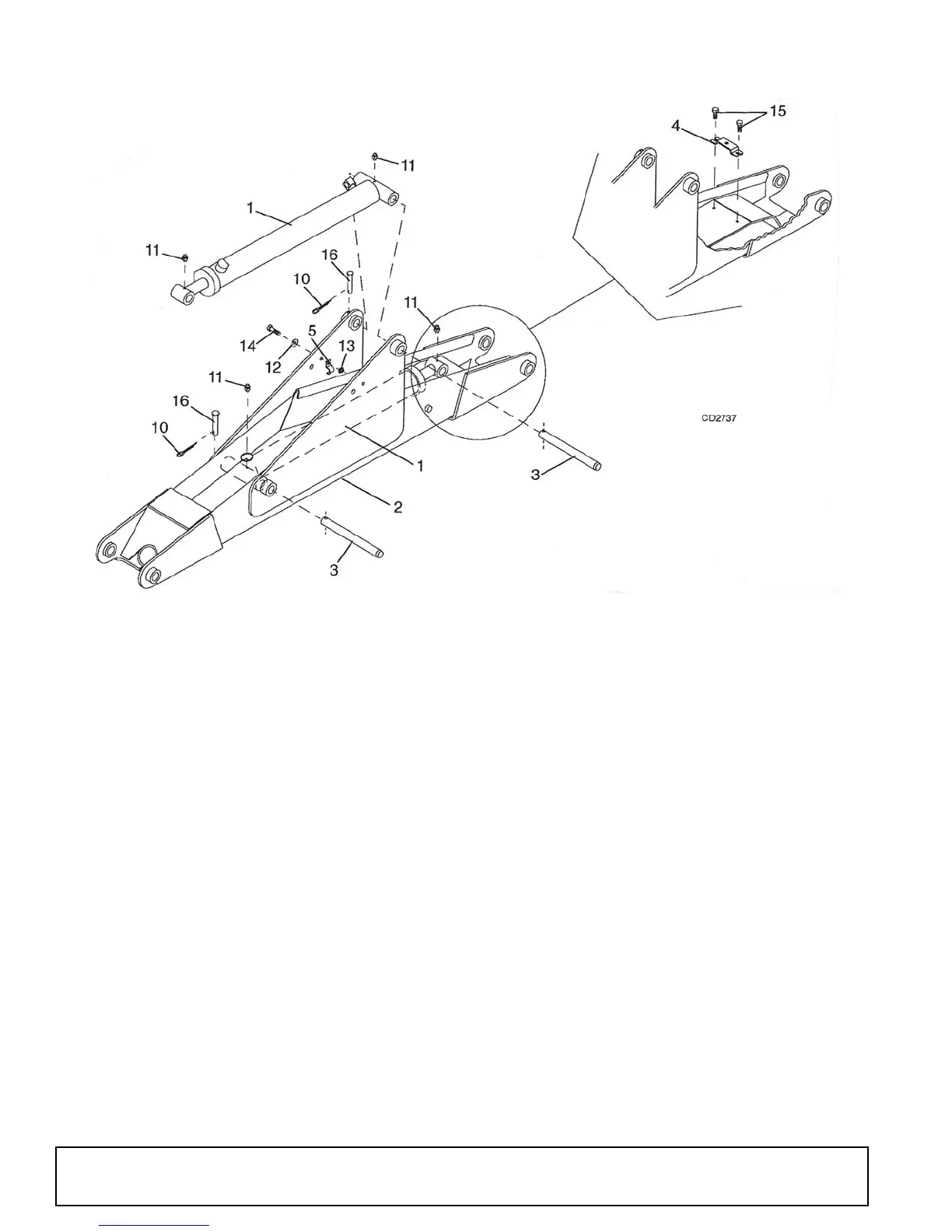

BH1050 BOOM ASSEMBLY
HARDWARE
REF PART QTY DESCRIPTION
1 34216 2 3 x 27 Hydraulic cylinder assembly
(see page 52)
2 34343 1 Boom
3 34172 2 1-1/8 x 10-3/4 Pin HT
4 34167 1 4-Hose clamp
5 34169 1 Hose clamp
REF PART QTY DESCRIPTION
10 3597 * - 1/8 x 1 Cotter pin
11 1972 * - 1/4 - 28 Tapered thread grease fitting
12 5336 * - 1/4 Standard flat washer
13 62521 - 1/4 NC Flanged hex lock nut
14 10378 * - 1/4 NC x 1 HHCS GR5
15 30036 - .31 x .75 Type T self-tap cap screw
16 34178 - 5/16 x 2-3/8 Clevis pin HT
* Obtain locally
