Parts 41
51861 (Rev. 6/16/2006)

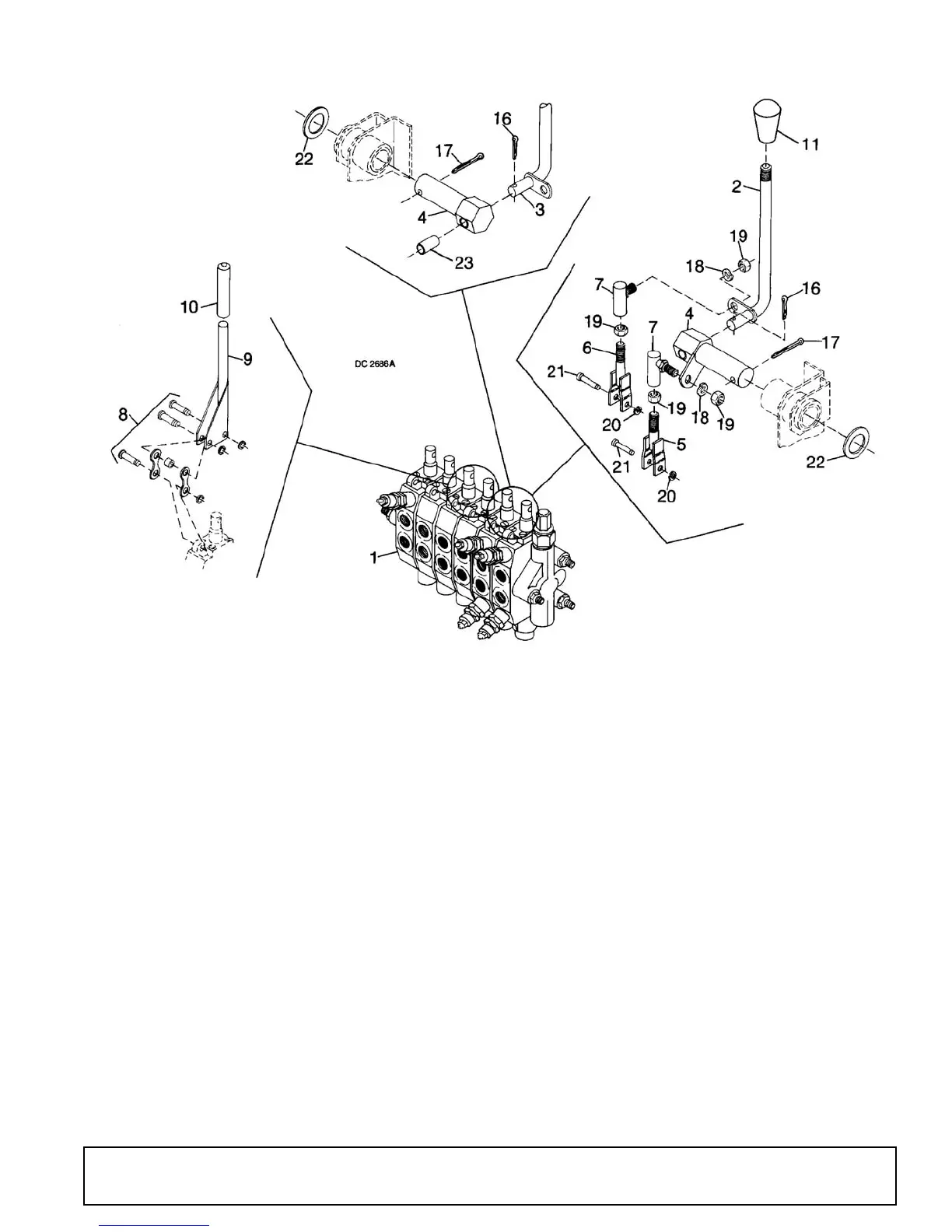

VALVE CONTROLS & HARDWARE
HARDWARE
REF PART QTY DESCRIPTION
1 34179 1 Console valve (see page 42)
2 34141 1 Left handle assembly
3 34140 1 Right handle assembly
4 34144 2 Linkage pivot assembly
5 34149 2 2.31 Valve link, right and left
6 34147 2 2.75 Valve link, right and left
7 30050 4 5/16 NF Ball joint
8 62377 2 Linkage assembly, right and left
9 31225 2 Stabilizer control handle, right and
left
REF PART QTY DESCRIPTION
10 31416 2 Rubber handle
11 31246 * 2 1-5/8 Oval tapered knob
16 3597 2 1/8 x 1 Cotter pin
17 64803 * 2 3/16 x 2 Cotter pin
18 2472 * 2 5/16 Lock washer
19 302054 * 4 5/16 NF Hex nut
20 34303 2 Retaining ring
21 34302 2 Valve linkage pin
22 31303 2 1-1/6 x 1-9/16 x 10 GA Washer
23 33545 1 .502 x .629 x 1.25 Bronze bushing
* Obtain locally
