50 Parts
MAN1280 (4/05/2019)

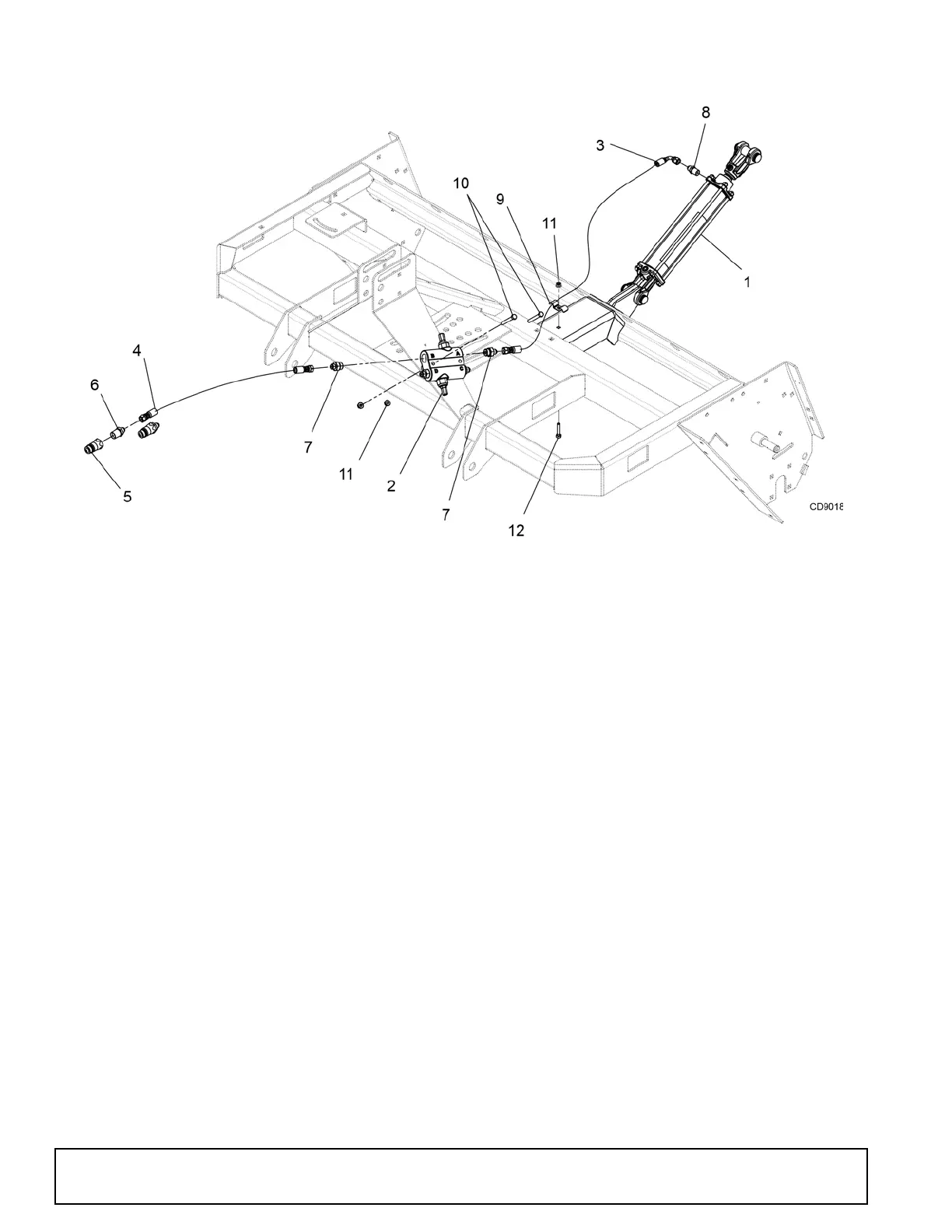

TOW KIT HOSE ROUTING
REF PART QTY DESCRIPTION
1 1038881 1 Cylinder, 2 x 10, 1.06 rod
2 604341 1 Double relief valve 600 PSI
3 1014239 2 Hose 1/4 54 9/16 JICF 9/16 JICF
4 38673 2 Hose 1/4 x 94 9/16 JICF
5 66511 2 Coupler male ISO 1/2 NPT
6 54315 2 Adapter 1/2 NPTM 9/16 JICM
7 69 4 Adapter 9/16 JICM 3/4 ORBM
8 63480 2 Adapter 3/8 NPTM 9/16 JICM
9 258 1 Feedline clamp - 1/2
10 10509 * 2 HHCS 5/16 NC x 2-1/2 GR5
11 W73163 * 3 Nut whiz 5/16 NC flange yd
12 24409 * 1 HHCS 5/16 NC x 1 GR5 ZP
13 1046048 1 Nut, 5/16 round push
HHCS Hex Head Cap Screw
* Standard hardware, obtain locally
(Rev. 8/20/2019)
