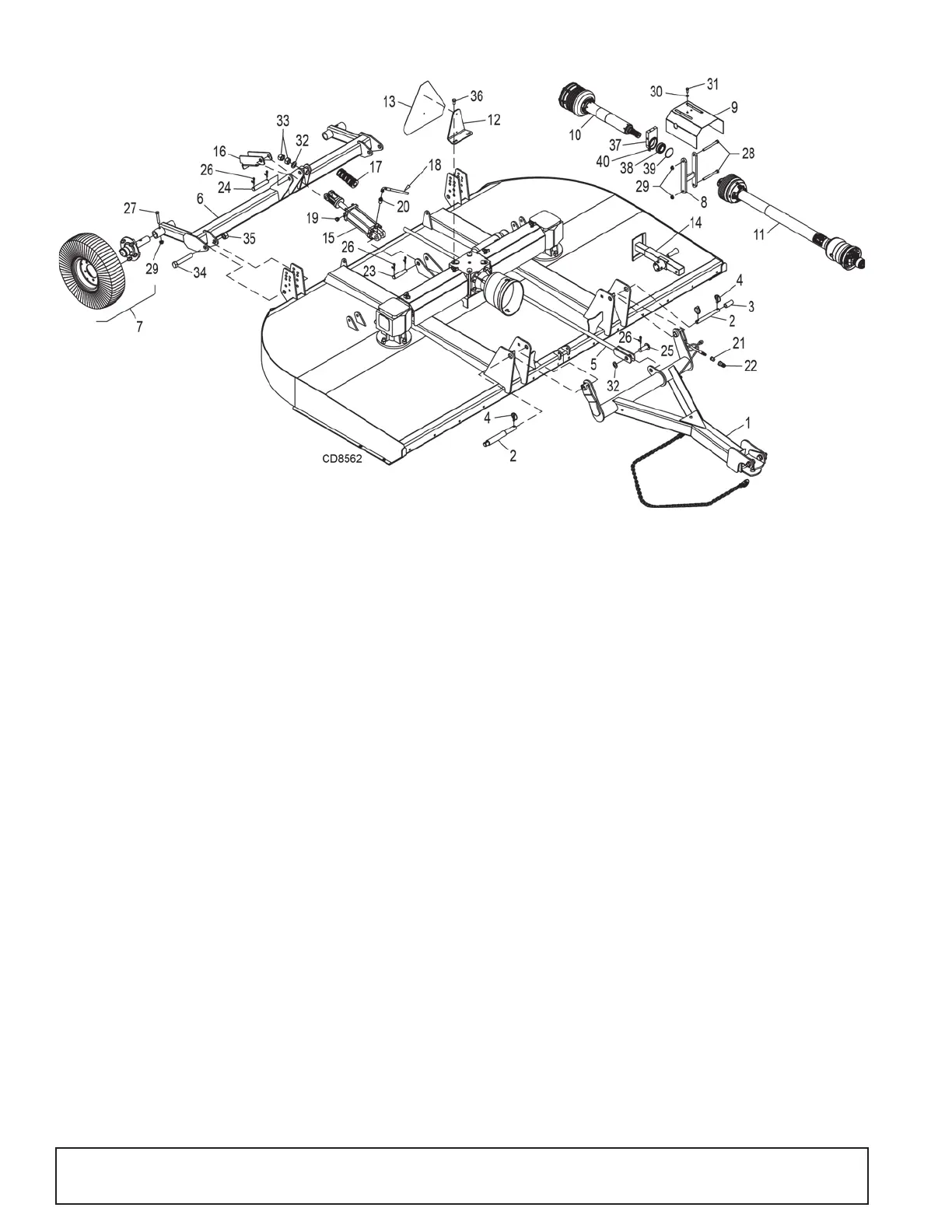

DS8.30E / DS10.40E PULL-TYPE ASSEMBLY
REF PART QTY DESCRIPTION
1 1040725 1 Tongue assembly (DS8.30E)
(See page 64) -or-
1 1040724 1 Tongue assembly (DS10.40E)
2HBL2332
22.2 mm x 176.3 mm (.875 x 6.94) Headless
pin (DS8.30E)
-or-
2 39064 2 Lower hitch pin (DS10.40E)
3 56598 2 Sleeve, 22.5 mm x 28.6 mm x 66.5 mm
(.885 x 1.125 x 2.62)
4 27542RP
* 7/16 x 11/32 Klik pin
5 1013388 1 Attitude rod (DS8.30E)
-or-
5 1042765 1 Attitude rod (DS10.40E)
6 1040735 1 Wheel yoke (DS8.30E)
-or-
6 1040747 1 Wheel yoke (DS10.40E)
7 ------- 2 Tire & hub (See page 65)
8 1042234 1 H-Frame (DS10.40E)
9 1011761 1 Shield (DS10.40E)
10 1041677 1 Stub shaft (DS10.40E)
11 ------- 1 CV Drive
12 1009234RP 1 SMV Bracket
13 24611 1 SMV Emblem
14 23790 1 Parking jack
15 1035089 1 76.2 mm x 152.4 mm (3 x 6) Hydraulic cyl
-
inder
15A 1038883 1 Seal kit for 1035089 cylinder
16 1038065RP 1 Transport lock-up
17 24098 1 31.8 mm (1-1/4) Stroke control kit
18 1038123 1 Hose, 3.9 m (154") x 1/4NPT x 9/16
JICF 90°
19 11975 1 1/2 NPT Vent plug
REF PART QTY DESCRIPTION
20 54315 1 1/2 NPTM x 9/16 JICM Adapter
21 1038891 1 1/4 NPTF x 1/2 NPTM Adapter restricter .06
22 66511RP 1 1/2 NPT Male coupler
23 8345 1 25.4 mm x 101.6 mm (1 x 4) Headless pin
24 8346 1 25.4 mm x 114.3 mm (1 x 4-1/2) Headless pin
25 46605RP 1 25.4 mm x 103.6 mm (1.00 x 4.08) Pin
26 1285RP
* 1/4 x 1-1/2 Cotter pin
27 3489
* 1/2 NC x 3 HHCS, GR5
28 65575
* 1/2 NC x 5-1/4 HHCS, GR5
29 11900RP
* 1/2 NC Flanged lock nut
30 838RP
* 3/8 Lock washer
31 839
* 3/8 NC x 1 HHCS, GR5
32 1863RP
* 1" Standard flat washer
33 3132RP
* 1 NC Hex nut
34 1003606RP 1 NC x 6 HHCS, GR5
35 34279RP 1 NC Hex lock nut
36 62542 M12-1.75P x 30 mm HHCS (DS8.30E)
-or-
36 25475RP * 1/2 NC x 1 HHCS, GR5 (DS10.40E)
37 32347 1
Bearing block (includes 38, 39, 40) (DS10.40E)
38 13133 1 Bearing (DS10.40E)
39 12128 1 Snap ring (DS10.40E)
40 2985
* 1/4-28 x 90° Grease fitting
* Standard hardware, obtain locally
HHCS Hex head cap screw
